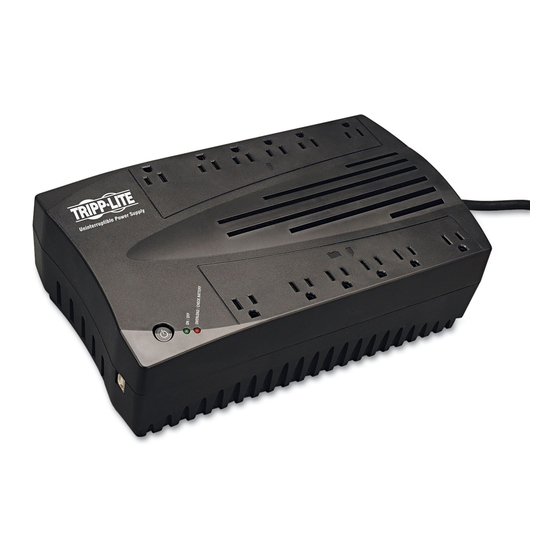

AVR Series UPS Systems
(Series Numbers: AGBC5050, AGBC5053, AGOM6807, AGOM7881)
This document explains the most important
features of your UPS system. For additional
information, download the Owner's Manual
PDF (in English, Spanish or French) from
www.tripplite.com/support/manuals
Quick Installation
Plug the UPS into an outlet: After plugging the UPS into a wall outlet, push the ON/OFF/
1
TEST button for one second to turn the UPS on.
Note: The UPS will not turn on automatically in the presence of live utility power.
Plug your equipment into the UPS: Select outlets (see diagram) will provide battery
2
backup and surge protection; plug your computer, monitor and other critical devices here.*
Select outlets (see diagram) will provide surge protection only; plug your printer and other non-
essential devices here.
* Your UPS is designed to support electronic equipment only. You will overload the UPS if the total VA ratings
for all the equipment you connect to the Battery Backup Protected/Surge Protected outlets exceeds the UPS
Output Capacity. To find your equipment's VA ratings, look on their nameplates. If the equipment is listed in
amps, multiply the number of amps by 120 to determine VA. (Example: 1 amp × 120 = 120 VA). If you are
unsure if you have overloaded the Battery Backup Protected/Surge Protected outlets, run a self-test (see
"ON/OFF/TEST" Button description).
Basic Operation
ON/OFF/TEST ON/OFF LED
Button
USB Port*
Tel/DSL Jacks*
*Select Models Only
17-04-262-932970-EN-ES-FR.indd 1
Quick Start Guide
120V Models
Not suitable for mobile applications
OVERLOAD/CHECK
BATTERY LED
Ground
Connection*
