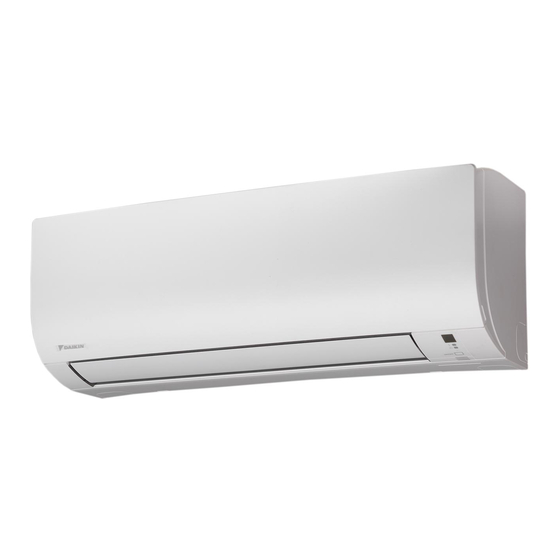

Daikin FTXP50M2V1B Manual De Instalación
Ocultar thumbs
Ver también para FTXP50M2V1B:
- Guía de referencia del instalador (60 páginas) ,
- Guía de referencia del usuario (40 páginas) ,
- Manual de instalación (20 páginas)
Tabla de contenido
Publicidad
Enlaces rápidos
Publicidad
Tabla de contenido
Manuales relacionados para Daikin FTXP50M2V1B
Resumen de contenidos para Daikin FTXP50M2V1B
- Página 1 Installation manual Daikin room air conditioner FTXP50M2V1B FTXP60M2V1B FTXP71M2V1B FTXF20A2V1B FTXF25A2V1B FTXF35A2V1B FTXF50A2V1B FTXF60A2V1B FTXF71A2V1B ATXF50A2V1B Installation manual ATXF60A2V1B English Daikin room air conditioner ATXF71A2V1B...
- Página 2 3P511700-8C...
- Página 3 3P511700-2A...
- Página 4 3P511700-3A...
- Página 5 3P511700-7B...
- Página 6 3P511700-9D...
-
Página 7: Tabla De Contenido
Daikin website (publicly accessible). Installing the indoor unit ............5.2.1 To install the mounting plate ........▪ The full set of latest technical data is available on the Daikin Business Portal (authentication required). 5.2.2 To drill a wall hole ............10 5.2.3... -
Página 8: Preparation
2 Install 2 screws (class 20~35) or 3 screws (class 50~71) back manner. on the front grille. 3 Install the air filter and then mount the front panel. Installation manual FTXP50~71M2V1B + FTXF20~71A2V1B + ATXF50~71A2V1B Daikin room air conditioner 3P512025-8R – 2019.12... -
Página 9: To Remove The Electrical Wiring Box Cover
5 To re-install the cover, first hook the bottom tab onto the plate pocket. electrical wiring box, and slide the cover into the 2 upper tabs. 116.5 (mm) FTXP50~71M2V1B + FTXF20~71A2V1B + ATXF50~71A2V1B Installation manual Daikin room air conditioner 3P512025-8R – 2019.12... -
Página 10: To Drill A Wall Hole
▪ Pipe length. Keep drain piping as short as possible. ▪ Pipe size. If drain hose extension or embedded drain piping is required, use appropriate parts that match the hose front end. Installation manual FTXP50~71M2V1B + FTXF20~71A2V1B + ATXF50~71A2V1B Daikin room air conditioner 3P512025-8R – 2019.12... - Página 11 To check for water leaks 2 Wrap the drain hose and the refrigerant pipes together using 1 Remove the air filters. insulation tape. FTXP50~71M2V1B + FTXF20~71A2V1B + ATXF50~71A2V1B Installation manual Daikin room air conditioner 3P512025-8R – 2019.12...
-
Página 12: Connecting The Refrigerant Piping
Do NOT connect the power supply to the indoor unit. This Terminal block could result in electrical shock or fire. Electrical component block Cable clamp 5 Strip the wire ends approximately 15 mm. Installation manual FTXP50~71M2V1B + FTXF20~71A2V1B + ATXF50~71A2V1B Daikin room air conditioner 3P512025-8R – 2019.12... -
Página 13: Finishing The Indoor Unit Installation
▪ Do NOT push the refrigerant pipes onto the bottom Drainage frame or the front grille. Make sure drainage flows smoothly. Possible consequence: Condensate water might drip. FTXP50~71M2V1B + FTXF20~71A2V1B + ATXF50~71A2V1B Installation manual Daikin room air conditioner 3P512025-8R – 2019.12... -
Página 14: To Perform A Test Run
Daikin website (publicly accessible). Prerequisite: Power supply MUST be in the specified range. ▪ The full set of latest technical data is available on the Daikin Prerequisite: Test run may be performed in cooling or heating Business Portal (authentication required). - Página 15 Receiver Limit switch Float switch S*NPH Pressure sensor (high) S*NPL Pressure sensor (low) S*PH, HPS* Pressure switch (high) S*PL Pressure switch (low) Thermostat S*RH Humidity sensor FTXP50~71M2V1B + FTXF20~71A2V1B + ATXF50~71A2V1B Installation manual Daikin room air conditioner 3P512025-8R – 2019.12...
