tUnE sEttIngs
tune selection (Front door)
1. Press the "Tune Select" button until desired tune is heard (see
Figure 8). See page 15 for available tunes.
2. When the desired tune plays, the tune is now selected to play
each time the front door push button is pressed.
NOTICE: The push buttons will not play the selected
tune until the cover is properly installed (see page
10). The chime base will only sound the alert "Install
Cover" when push buttons are pressed.
tune selection (Rear door)
There is only one tune available for the rear push button: Ding-
Dong (two note).
Note: All models have both front and rear door tune capabilities.
We recommend the rear door use the Ding-Dong tune and the front
door use the Selectable tunes.
Wired Push Buttons
If using wired push buttons, the front and rear door push button tunes
are determined by the chime base wiring connections.
Tune Select
Button
Inside Push Button
Using Jumpers
Note: Some models might require the use of tweezers to remove and replace
the jumpers or a small screw driver to set dip switches.
Continued
-9-

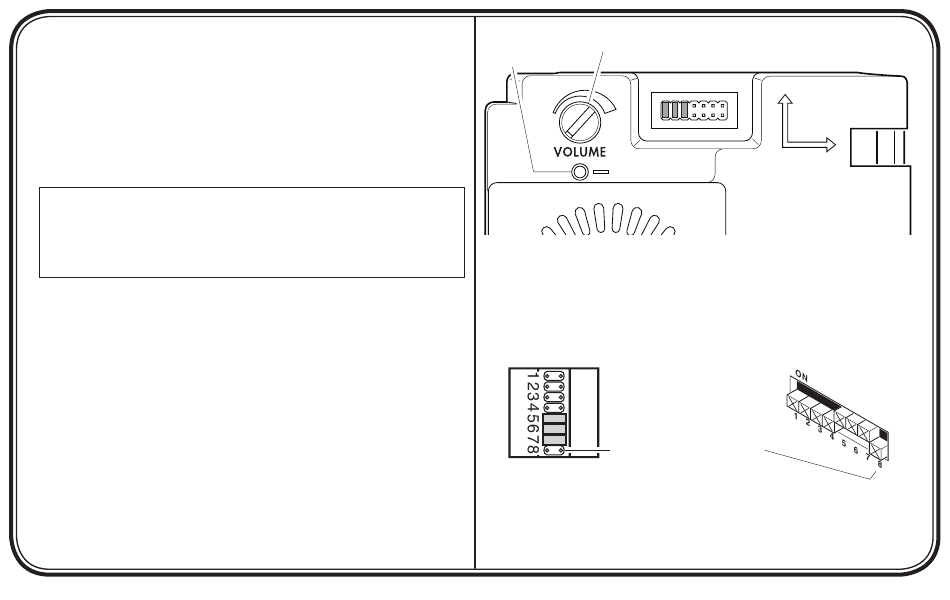

Volume Control
7 6 5 4 3 2 1
TUNE SELECT
Figure 8
Inside Push Button
Using Dip Switches
FRONT
Jumper or dip switch 8
determines which push
button will play front door
tunes or rear door tunes.
Figure 9
UP
TRANS REAR
