UHF Wireless Microphone System
3

System overview

3.1

Receiver

1 Power ON/OFF switch
2 UP button (for frequency/scanning/lock selection)
3 DOWN button (for frequency selection and
scanning)
4 SET to activate the menu and for storage of
selections
5 LCD
6 Volume control
7 DC socket
8 AF output, 6.3 mm jack socket (UNBAL)
9 AF output, XLR socket (BAL)
10 Antenna 2 input socket
11 Antenna 1 input socket
12 Antennas
13 Cable pull out protection hook
6

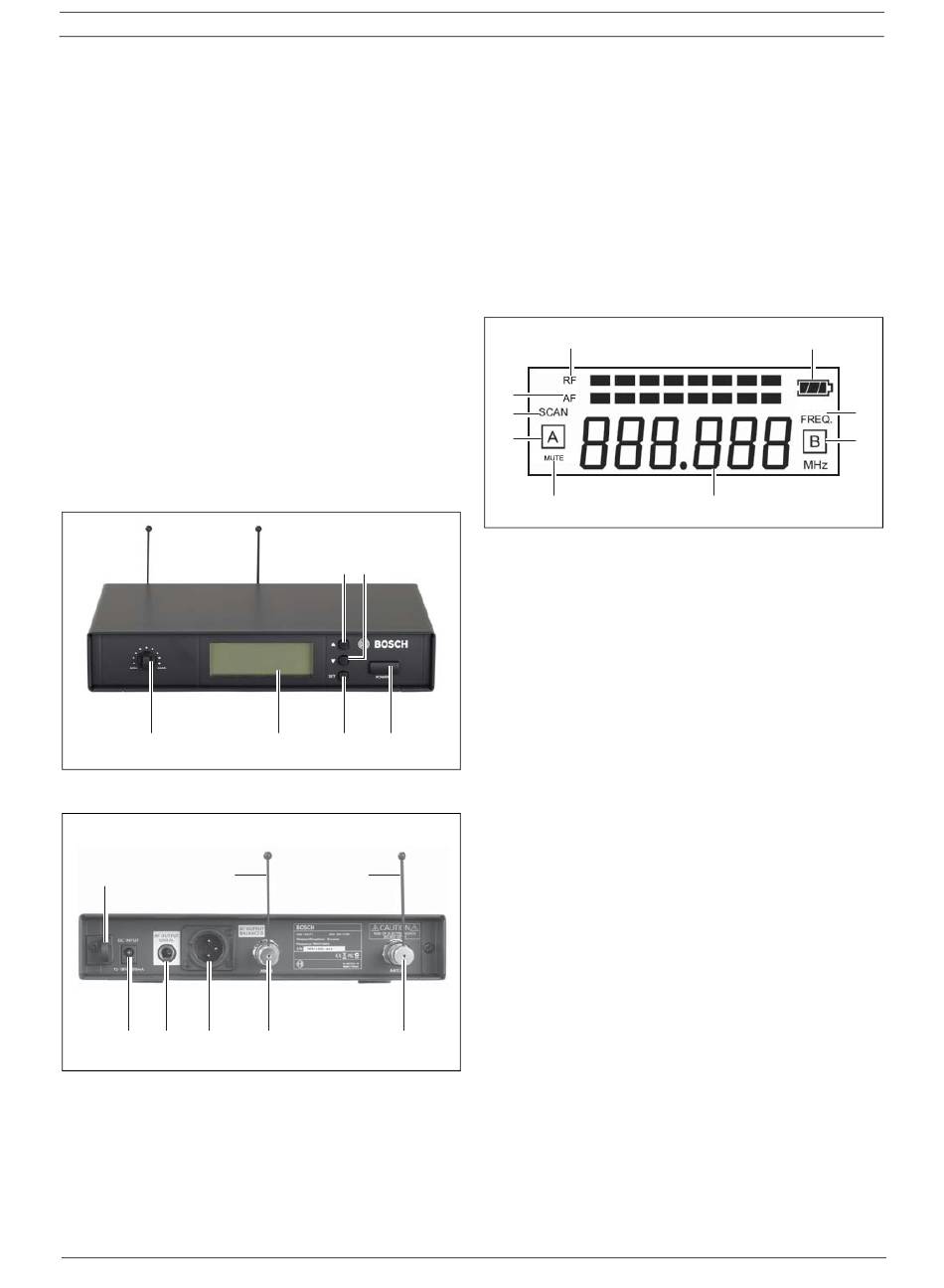

figure 3.1: Receiver front panel
13
12
7
8
9
figure 3.2: Receiver rear panel
Bosch Security Systems B.V.
2 3
5
4
1
12
10
11
LCD
1 RF signal level
2 AF signal level
3 Indication for SCAN mode
4 Indication for FREQ mode
5 Frequency indication and menu options
6 Antenna indication (A or B)
7 Battery status indication of microphone/
transmitter
8 MUTE: audio muted
1
2
3
6
8
figure 3.3: Receiver LCD
en | 10
7
4
6
5
IUI-MW1-XXX | V2.0 | 2012.11
