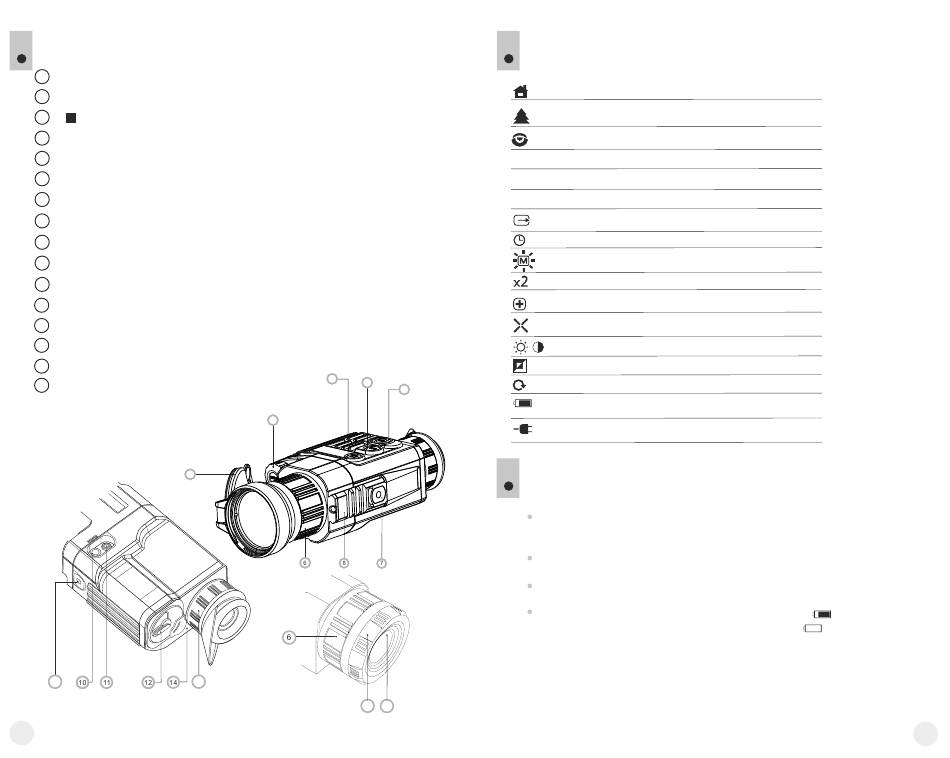

COMPONENTS AND CONTROL ELEMENTS

"ON" button
1
2 "CAL" button
3 " " button
4 Lens cap (in 38 and 50 mm models)
5 Controller
6 Ring for lens internal focusing
7
¼" tripod mount
8 Weaver mounting rail
9 Second ¼" tripod mount
10 External power supply jack
11 Video out
12 Battery compartment
13 Eyepiece
14
LED indicator
15 Objective lens diaphragm (in 19mm models)
16 Lens opening diaphragm
4
9 13
4
3
2
1
5
16 15
5
DATA PANEL ICONS
Operating mode "City"
Operating mode "Forest"
Operating mode "Identification"
M Manual calibration mode
H
Semiautomatic calibration mode
A Automatic calibration mode
Video output signal selection PAL/NTSC
Clock setup
Brightness setting of menu icons
2x digital zoom
Defective pixel repair option
Cross for defective pixel repair
Brightness and contrast adjustment
Image inversion modes: "White hot"/"Black hot"
Return to default defective pixel pattern
Low battery indicator
Operation on external power supply
6

INSTALLATION OF BATTERIES

Turn the lever of the battery compartment (12) 90 degrees in "Open"
position and, pulling by the lug of the cover, remove the battery
container.
Install four AA batteries (or rechargeable batteries) observing polarity
shown on the battery container.
Insert the battery container into the battery compartment and turn the
lever 90 degrees clockwise.
Battery charge level is displayed on the data panel (
In case of complete battery discharge, a red icon
data panel and in the centre of the display.
Note: to ensure long and reliable operation it is recommended that you use quality
rechargeable batteries with a capacity of at least 2500 mAh. Please do not use batteries of
different types or batteries with various charge levels.
).
is flashing on the
5
