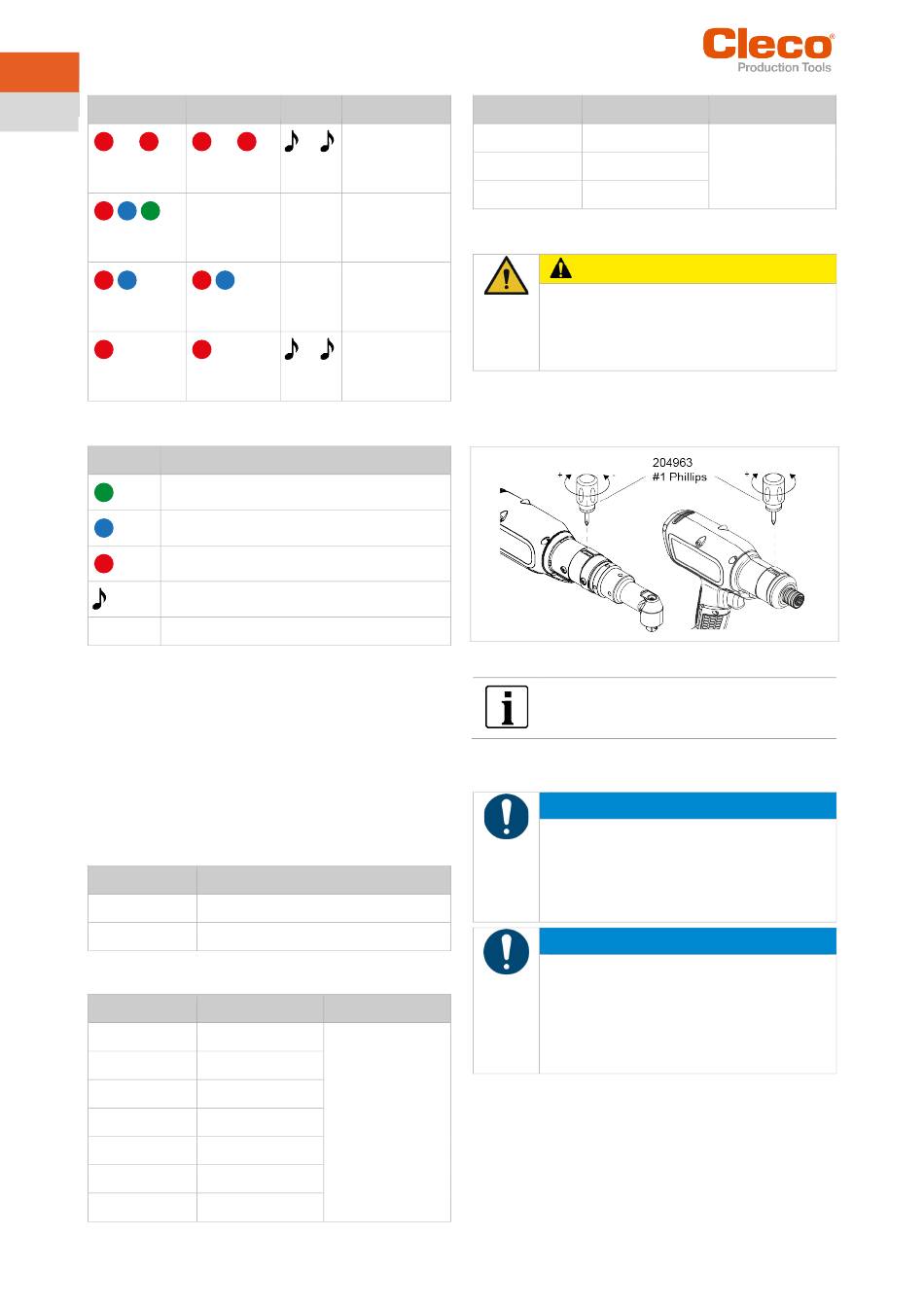

Before Initial Operation

Charge Battery

Battery pack is supplied partly charged and must be
charged completely being used for the first time.
► See Original Instructions of Milwaukee charger.
► Do not use any other battery packs / chargers than
the following:
Battery pack 18 V
Order no. Capacity
T50-1000497 2,0 Ah
T50-1000498 5,0 Ah
Charger 18 V
Order no. Country
T50-1000499 North America
T50-1000506 Europe
T50-1000507 Brazil
T50-1000543 Argentina
T50-1000544 United Kingdom
T50-1000545 China
T50-1000546 Japan
10
Sound Meaning
Tool overheat-
▬ ▬ ▬
ing

Maintenance

▬
alarm
Battery low sta-
▬ ▬
tus
General error
▬
1-Bay
Order no.
T50-1000500
T50-1000508
T50-1000547

Setting the torque

Winding hazard
Unintentional start-up can cause the output
to start up and cause serious finger injuries.
► Disconnect the tool from the power sup-
ply when converting work.
► Using the clutch adjustment tool provided:
• turn clockwise for maximum torque.
• turn counterclockwise for minimum torque.
Fig. 1-2: Setting the torque
Recommendation: For best results, start from
minimum torque and adjust in the maximum di-
rection until desired torque is achieved.
7 Maintenance
Note
Loss of warranty
Repairs are only permitted by Apex Tool
Group authorized personnel. If the tool is
opened, the warranty is voided.
► If repair is required send the complete
tool to Sales & Service Center!
Note
Incorrect calibration data
After replacing a component that has an im-
pact on the accuracy of the tool (motor, gear,
output drive, clutch), the calibration data may
be falsified.
► Carry out a mandatory machine capabil-
ity test.
P2547BA | 2021-08
