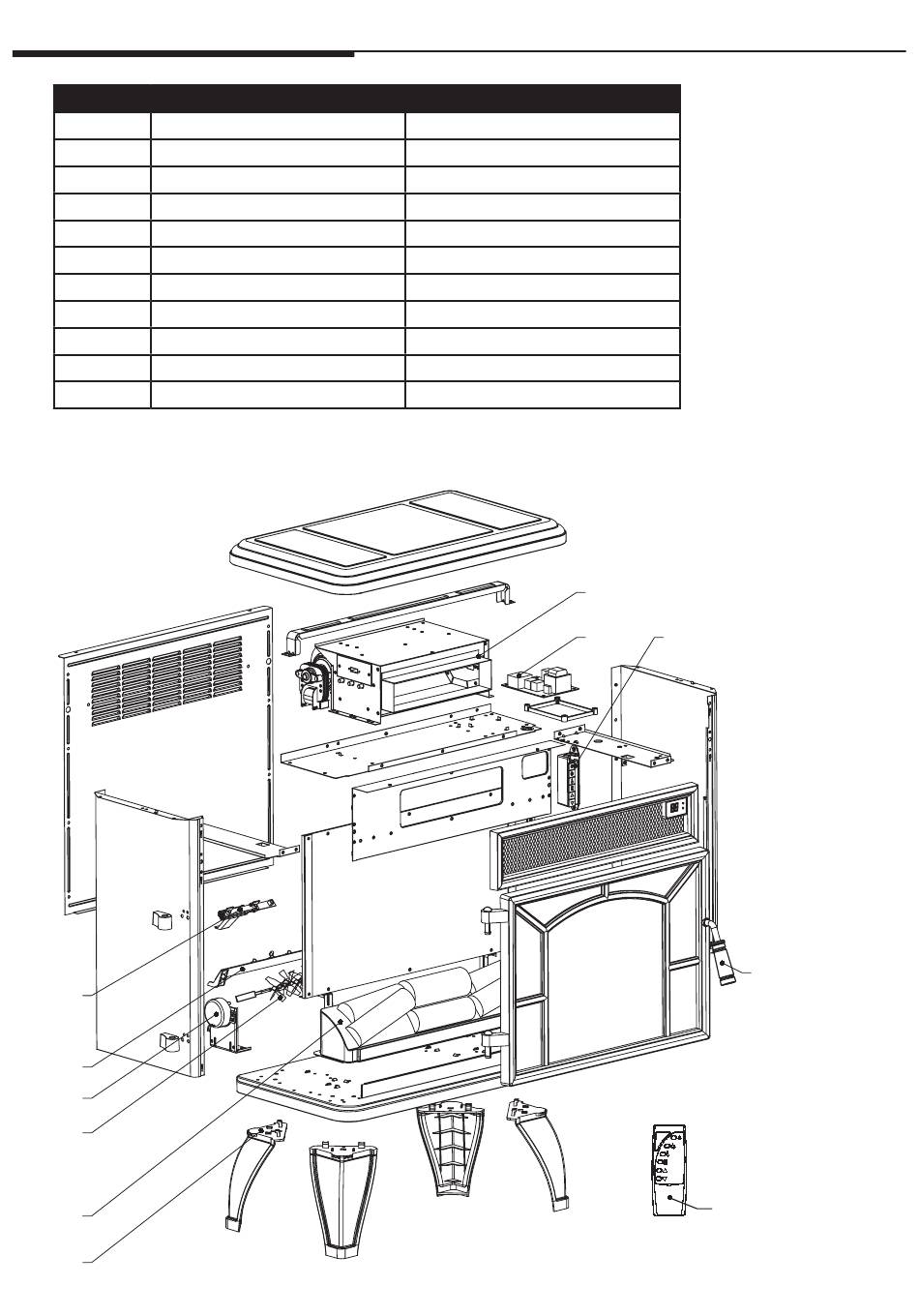

EXPLODED VIEW

Part Part Name
1 Blue Flame PCBA
2 Red Flame PCBA
3 Flame Generator Drive Motor
Flame Generator/Spinner
4
Emberbed with Log
5
6 Legs
7 Heater/Blower Assembly
8 Main PCBA
9 Control panel PCBA
10 Door Pull
11 Remote control
Note, the scale and size of your parts may be different depending on your exact model
1
2
3
4
5
6
A413
Part Number
Y13-S100-P40BL
Y13-S100-P40RED
P10-Q-S
Y13-S100-P11
Y13-S100-P02
SL-550-BLK
Y13-S100-P01
Y13-S100-P15
Y13-S100-P32
Y13-S100-DP
P104
9
7
8
9
10
11
