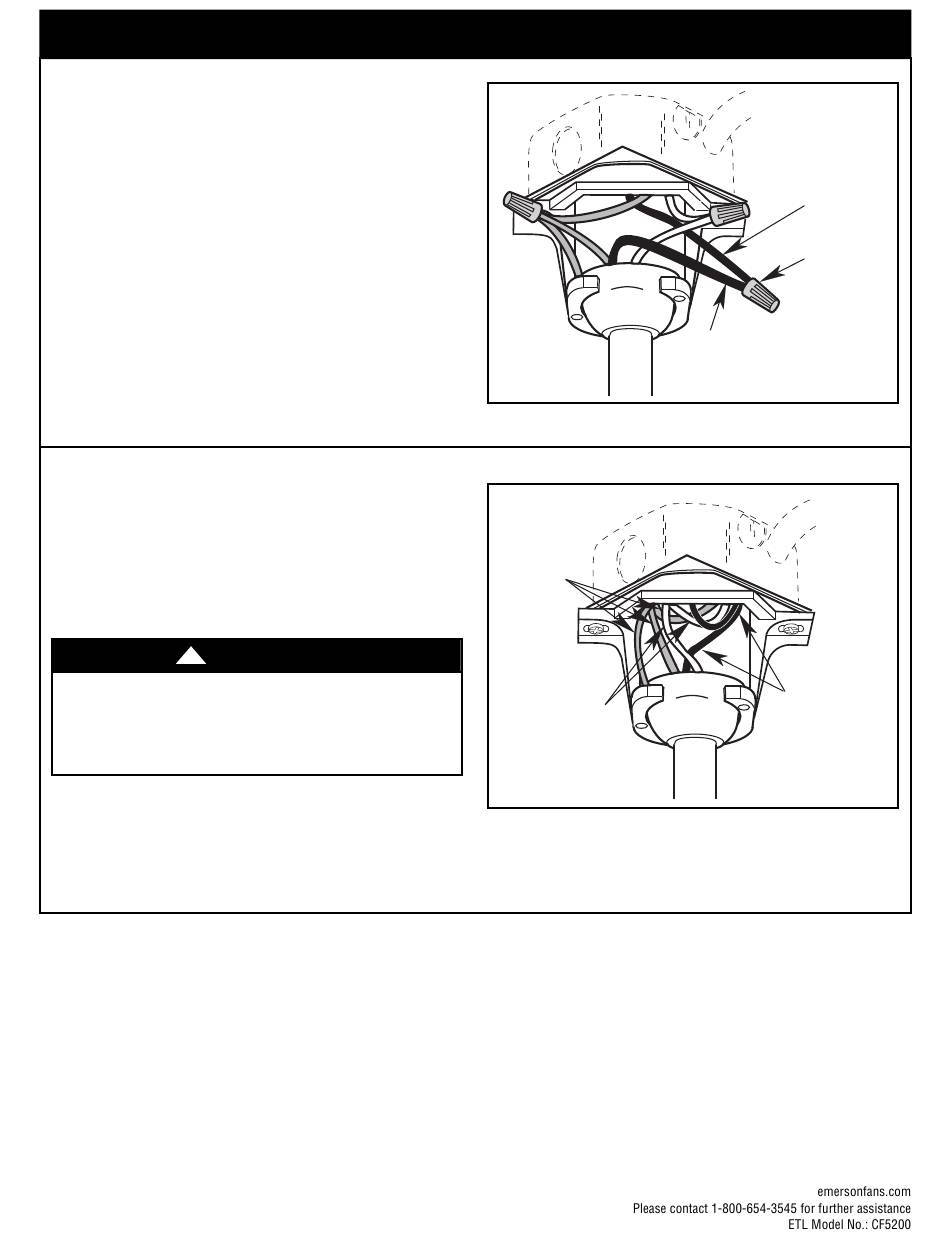

5. How to Wire Your Ceiling Fan
5.3
Securely connect the Fan Motor Black Wire to the Supply
Black (hot) Wire using Wire Connector (supplied)
(Figure 17).
5.4
After connections have been made, turn Leads upward
and carefully push Leads into the Outlet Box, with the
White and Green Leads on one side of the Outlet Box and
position the Black Lead on the other side of the Outlet Box
(Figure 18).
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
Figure 17
GREEN
WIRES
WHITE WIRES
Figure 18
13
(Continued)
SUPPLY
BLACK
(HOT)
LISTED WIRE
CONNECTOR
FAN MOTOR
BLACK WIRE
