7.2.2. When the battery level is low, the flashing
Low Battery indicator will appear on the
screen (Fig.2). S5 Apex Locator will
continue normal operation even with a low
battery, but the battery should be replaced
before it loses all power.

7.3. Cable connection test

Prior to each use, the S5 Apex Locator should be checked
for functionality. The S5 Apex Locator has a connection
test feature in order to check the cables.
7.3.1. Connect the measuring cable with attached
Lip Clip and File Clip into the device
receptacle. Touch file clip contact to the lip
clip.
7.3.2. "Connection" icon
the display, indicating proper connection
(Fig. 3).
7.3.3. If the symbol does not appear, the measuring
cable or file clip should be replaced.
Note: Measurement cable with attached lip clip and file clip constitute Applied Parts of
the device.
should appear on
8

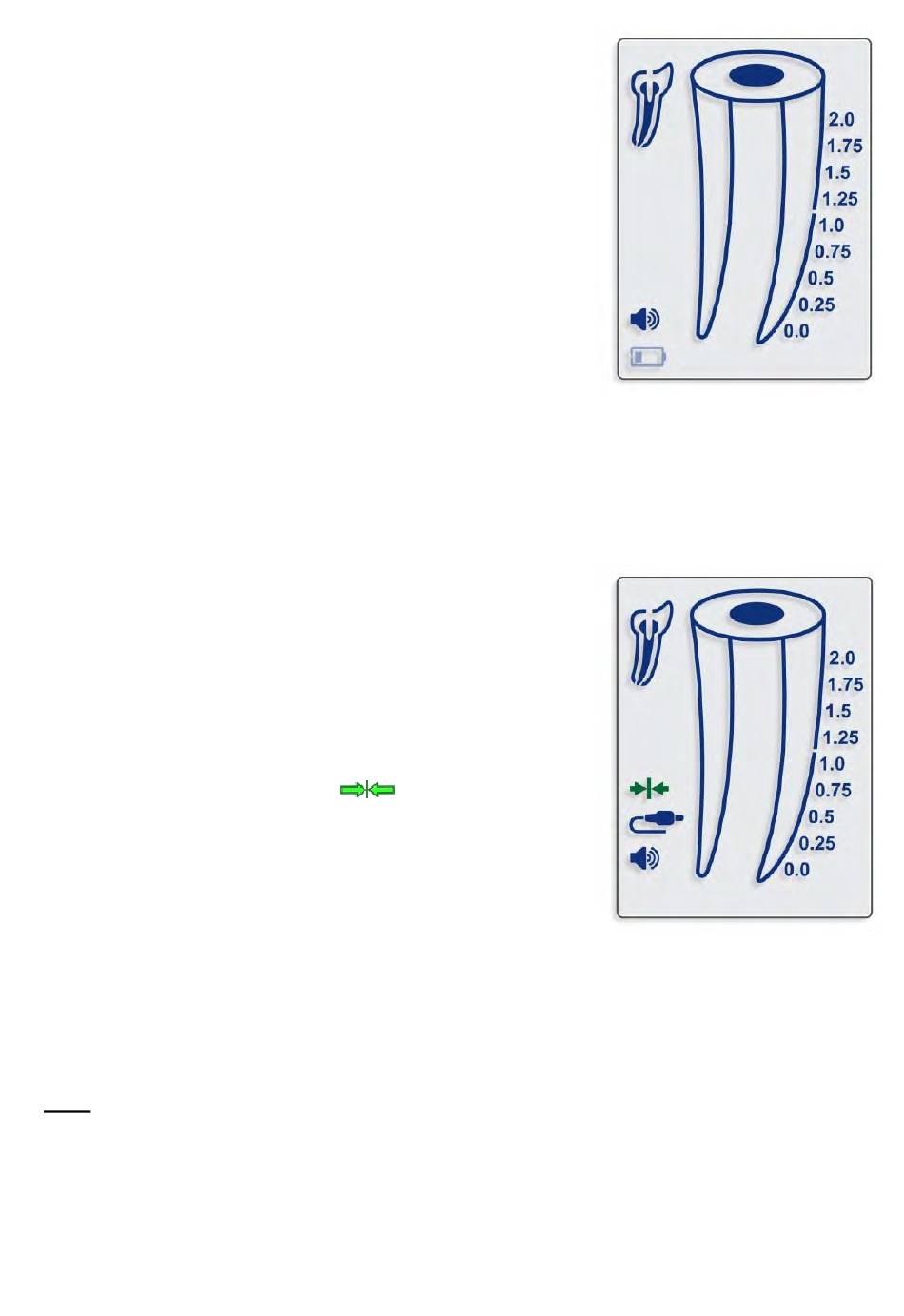

Fig. 2
Fig. 3
