Attenzione
Il presente kit è applicabile esclusivamente in abbinamento al kit
cornice proiettore per rete (cod. 97380382A).
Smontaggio componenti originali
Smontaggio passatubo freno anteriore
Note
Per comprendere meglio lo smontaggio del passatubo (B) non vie-
ne rappresentato il tubo freno anteriore.

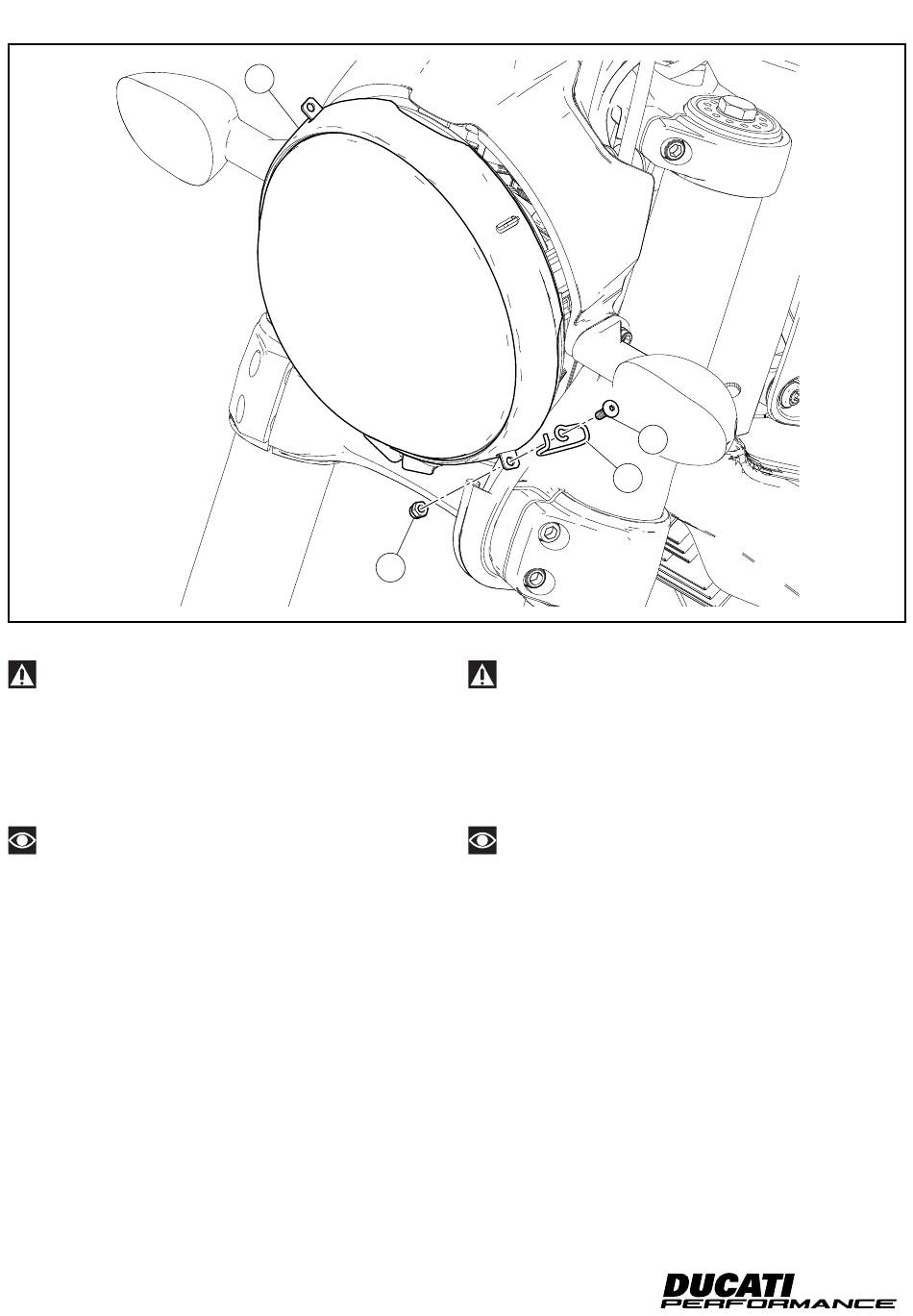

Svitare le viti (A) di fissaggio del passatubo (B) alla cornice rete fa-
nale (D) mantenendo, dal lato opposto, il dado (C).
3
D
C
B
Warning
This kit can be used only combined with headlight frame kit for
grille (part no. 97380382A).
Removing the original components
Front brake hose grommet disassembly
Notes
To better understand the disassembly of hose grommet (B), the
front brake hose is not shown.
Loosen screws (A) securing hose grommet (B) to headlight grille
frame (D), holding nut (C) on the opposite side.
ISTR 623 / 01
A
