7 MAINTENANCE & LUBRICATION CHARTS
7 MAINTENANCE & LUBRICATION CHARTS
7.1

GENERAL________________________________________________________________

!
WARNING
Before you clean, adjust, or repair this equipment,
disengage all drives, lower implements to the ground,
engage parking brake, stop engine and remove key
from ignition switch to prevent injuries.
1. Always clean the grease fitting before and after
lubricating.
7.2

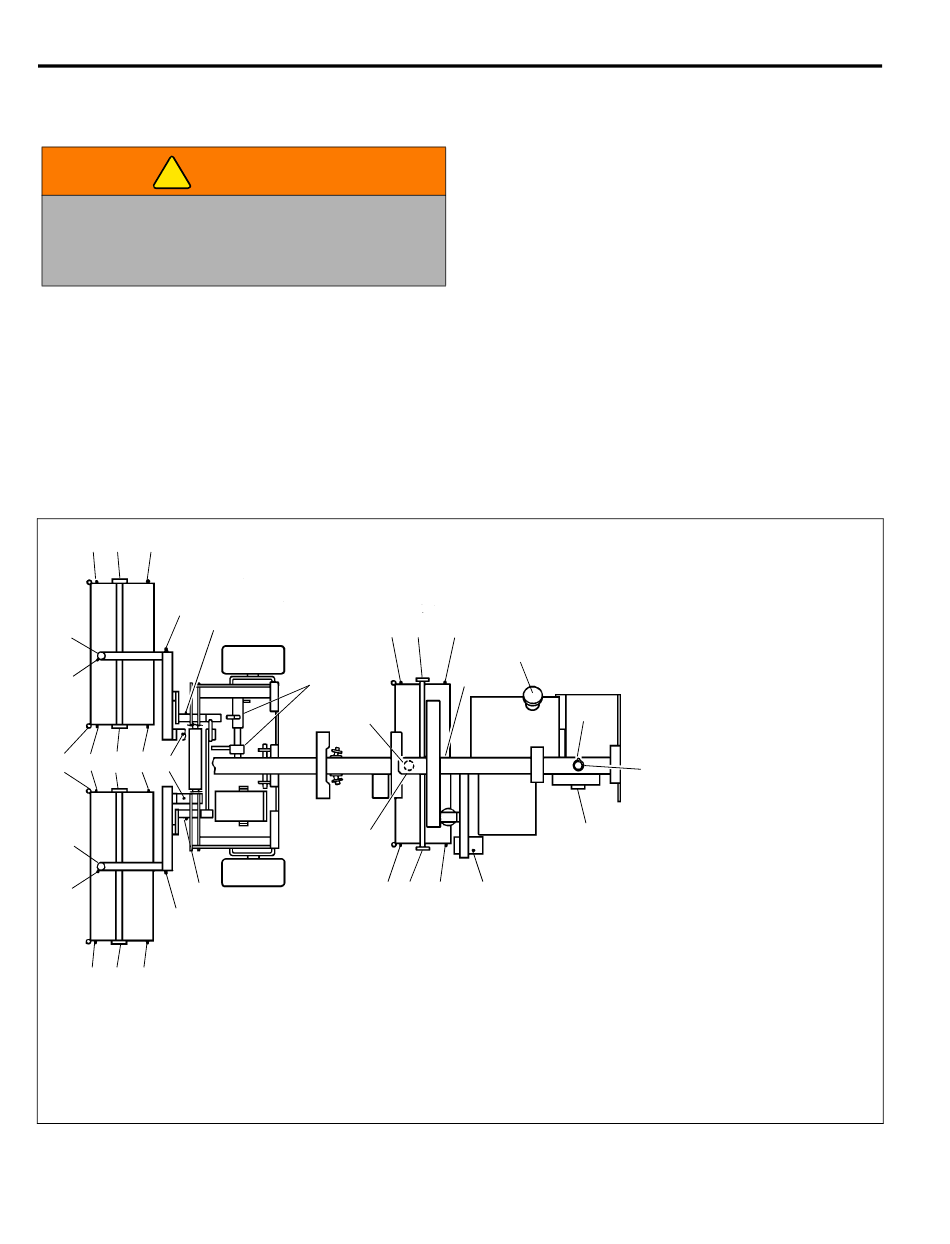

LUBRICATION CHART _____________________________________________________

F L F
B
C
J
A
H F L F B
J
C
A
B
F L F
30
All manuals and user guides at all-guides.com
2. Lubricate with grease that meets or exceeds NLGI
3. Periodically apply a small amount of lithium based
4. For smooth operation of all levers, pivot points and
5. Grease roller fittings (F) every 100 hours and coat
F L F
B
D
J
A
F L F B
A. Mower Swivel Housings
B. Lift Arms
C. Cam Lift Shafts
D. Treadle
E. Steering Shaft
F. Rollers
Grade 2 LB specifications. Apply grease with a
manual grease gun and fill slowly until grease begins
to seep out. Do not use compressed air guns.
grease to the seat runners.
other friction points that are not shown on the
lubrication chart apply several drops of SAE 30 oil
every 40 hours or as required.
cam surfaces and pins of swivel housing (J) every 50
hours.
H
E
K
G
G. Rear Wheel Bearings (See Chart)
H. Hydraulic Oil Tank (See Chart)
J. Swivel Arm Assembly
K. Rear Wheel Bearing
L. Reel Bearing Cavities
