GROOM MASTER SAND TRAP RAKE

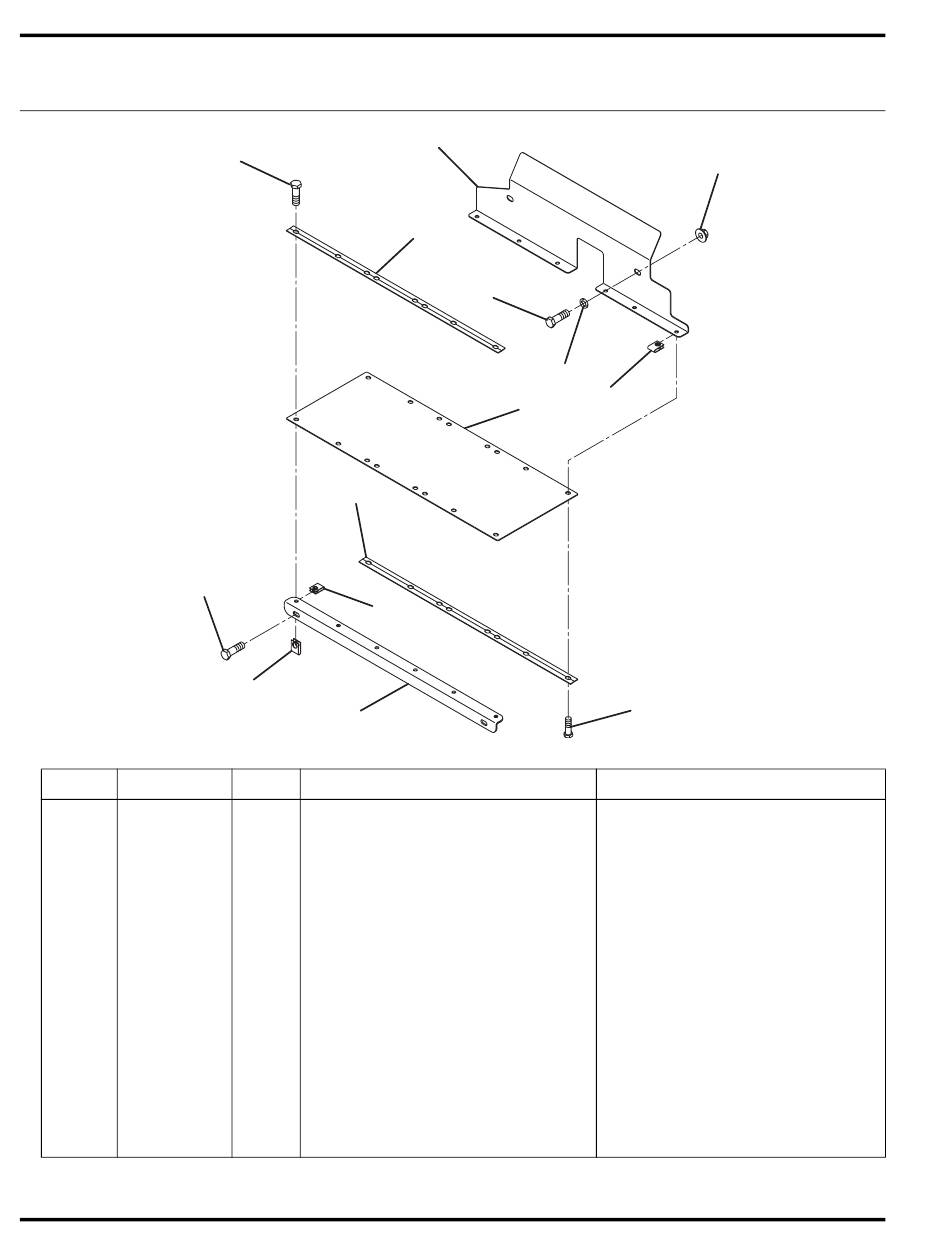

12.1 Splash Shield

11
Item Part No.
838205
1
2 800169
3 306834
4 306981
5 445796
6 4130598
7 838207
8 403769
9 838208
10 445278
11 306414
46
8
7
2
10
9
Qty. Description
1 Panel, Splash Shield
12 Nut, 1/4-20 Speed Nut
3 Screw, 3/8-16 X 3/4" Hex Head
9 Flat Washer
8 Nut, 3/8-16 Spiralock Flange
1 Cover, Splash Shield
2 Strip, Mounting
12 Screw, 1/4-20 X 1/2" Hex Flange
1 Rod, Rear Control
2 Nut, 5/16-18 Speed Nut
7 Screw, 3/8-16 X 1" Hex Head
1
7
3
4
6
5
2
8
Serial Numbers/Notes
> Change from previous revision
Serial No. All
