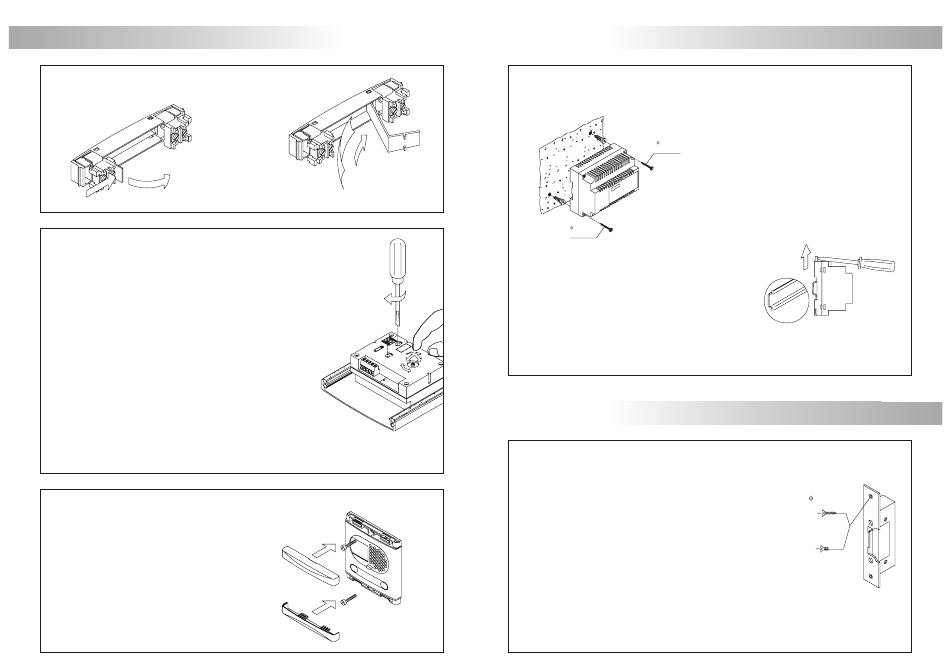

DOOR PANEL INSTALLATION
P
lace the nameplate labels.
Open the label holder.
F
inal adjustments.
If after starting the system it's considered that the audio
volume isn't correct, proceed with the necessary
adjustments as shown.
The telecamera has a pan and tilt mechanism built in
to adjust the telecamera position.
In case of low light conditions, an external illumination
can be activated by connecting a R-3 relay
between terminals '+H' and 'L2' of the sound module.
C
lose the door panel.
Fix the door panel by using the supplied
screws.
Finish the door panel assembly by pressing
the closing heads.
63 64
I
Place the label and
close.
L

POWER SUPPLY INSTALLATION

nstalling the FA-805 power supply.
The power supply must be installed in a dry and
3,5 x 50 protected place. It's recommended to protect
DIN-7971
the power supply by using a thermo-magnetic
circuit breaker and to use a ground connection.
To install the power supply directly on the wall, drill two holes
of Ø6 mm. and insert the wallplugs.
Fix the transformer with the specified screws.
3,5 x 50
DIN-7971
The power supply can be installed on a
DIN 46277 guide simply pressing it.
To disassemble the power supply from
the DIN guide, use a plain screwdriver
to lever the flange as shown on the picture.
The FA-805 power supply uses 7 units over DIN guide.
Remember to protect the input terminals with the supplied cover.

LOCK RELEASE INSTALLATION

ock release installation.
If the lock release will be installed in a metal door, use a
Ø3,5mm. drill and tap the hole . In case of wood door,
use a Ø3mm. drill .
IMPORTANT: the lock release to be used must be of 12Vd.c.
If you are using a.c. lock releases,
use one R-3 relay unit as it is shown on page 82.
DIN 46277
3,5 x 25
DIN-7972
M 4 x 8
DIN-963
