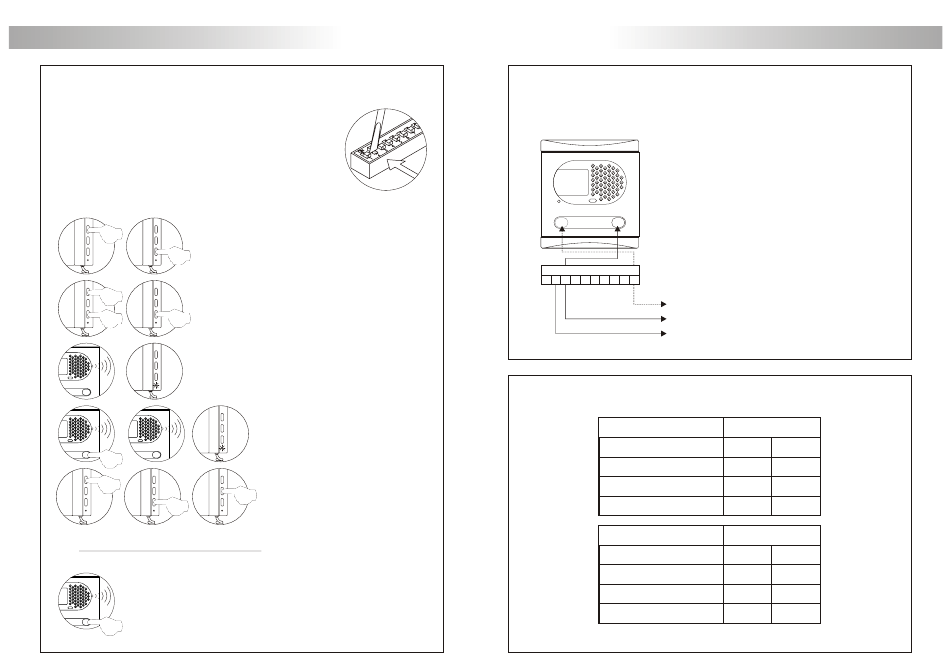

TELEPHONES PROGRAMMING
P
rogramming the telephones.
Set to ON the switch number 2 of the configuration dip switch, that's
accessible by opening the terminal connector protection cover.
The door panel will reproduce a sound to advise that the system
has entered into programming mode.
In systems with more than one door panel, the programming process
shall be done on the master door panel only.
Switch off the telephone to be programmed.
Once the telephone is off, press the door release push button.
With the door release push button pressed
switch on the telephone.
To show that the system is ready for programming,
the door panel will reproduce a sound and
the telephone led will blink. At this moment, the door
release push button can be released. Lift the handset
to establish audio communication with the door panel.
Each apartment must have one master unit only; in case of parallel units configure them
as slaves, both monitors or telephones.
Make a call to check that the telephone has been succesfully programmed.
Repeat these steps to program the rest of telephones.
Once the programming has been finished, set to OFF the programming
switch. If you don't, the door panel will reproduce a sound to advise
that the system is still into programming mode.
73
Press the door panel push button that will
call to this telephone. At this moment
the door panel will reproduce a sound
and the telephone led will blink.
To program the telephone as master,
switch it off and on again.
To program it as slave, press the door
release push button.
To program it as slave with intercom
function press the center push button.
74
P
ush buttons wiring.
Connect the push buttons in the CN2 connector terminal
of the EL500 circuit as shown. Connect the CP terminal
to the push buttons common terminal.
To avoid short-circuits, use wires of 0,25mm² section
to wire the push buttons.
IMPORTANT NOTICE.
Right push button must be connected to P8 terminal.
CN2
B CP P8 P7 P6 P5 P4 P3 P2 P1
To the 2nd push button (code 1) (only two ways kits).
To the 1st push button (code 106).
To the push buttons common terminal.
S
ections charts.
WITH COAXIAL CABLE
Terminal
+, – , CV+, CV –
A , A , A, D
in out
V , V , V , V
in+ out+ in out
WITH TWISTED PAIR
Terminal
+, – , CTO, CT, CV+, CV –
A , A , A, D
in out
V , V , V , M
in+,- out+,- p,d p,d

INSTALLATION DIAGRAMS

Distance
50m. 150m.
1,00mm² 2,50mm²
0,25mm² 0,25mm²
RG-59 RG-59
Distance
50m. 150m.
1,00mm² 2,50mm²
0,25mm² 0,25mm²
CAT-5 CAT-5
