How to Wire Your Ceiling Fan (Continued)
Yellow
Red
Gray
Black
Blue
Black / White

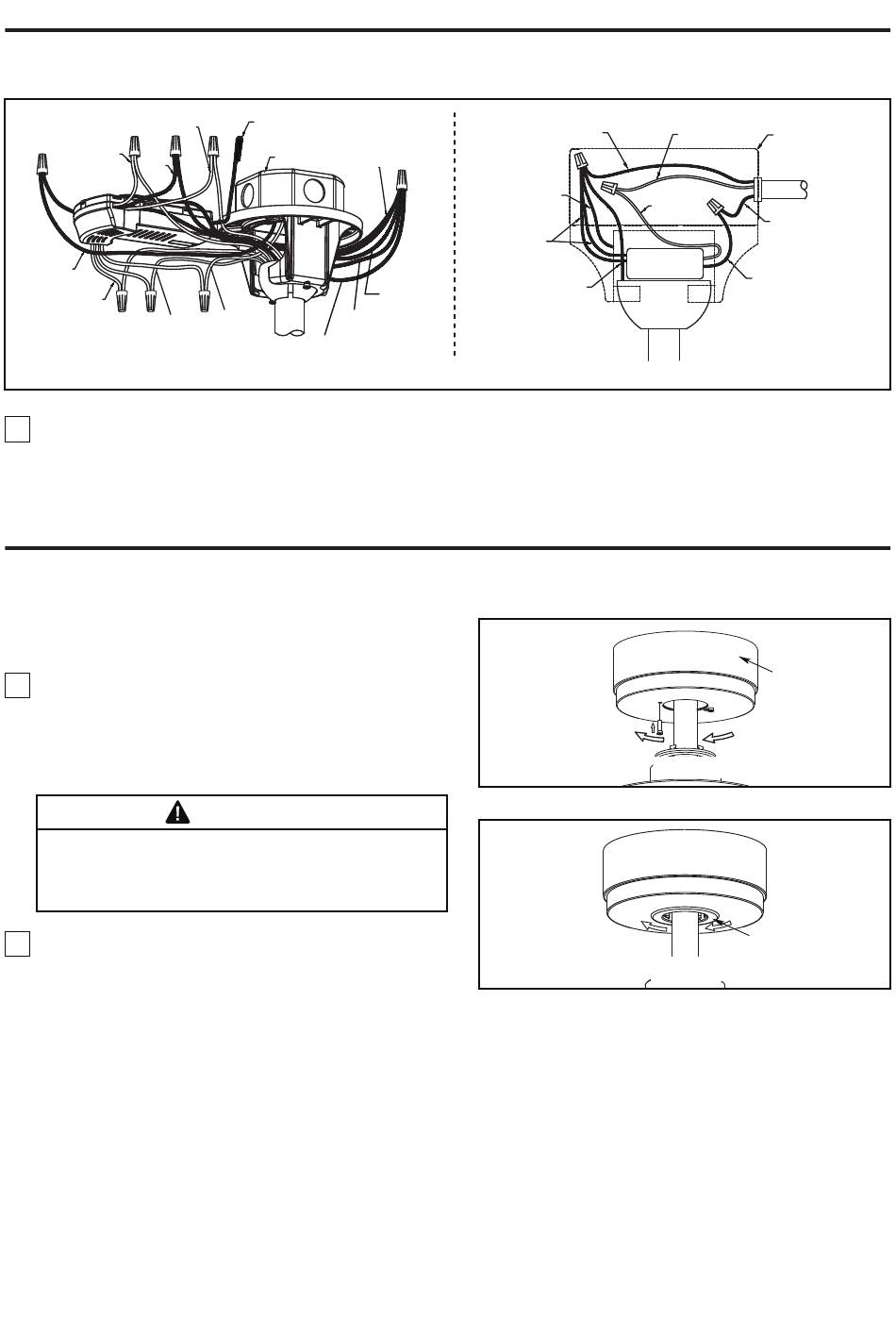

4. After connections have been made, put the white and green leads to one side and the black/white leads
towards the other side, upward and carefully push leads into the outlet box. The wires should be spread apart
with the grounded conductor and the equipment-grounding conductor on one side of the outlet box and the
ungrounded conductor on the other side. (Figure 5)

How to Install Your Canopy Housing

NOTE: This step is applicable after the neccessary
wiring is completed.
1. Assemble canopy by rotating key slot in canopy
over shoulder screw in hanger bracket, taking care not
to pinch the wires. Tighten shoulder screw. Fully
assemble and tighten second shoulder screw that was
previously removed. (Figure 1)
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy
housing and not pinched between the housing and the
ceiling.
2. Securely attach and tighten the canopy screw cover
over the shoulder screws in the hanger bracket
utilizing the key slot twist-lock feature. (Figure 2)
BLK-ANT
Green / Yellow
- Ground wire (2)
Listed
Outlet Box
From Receiver
Green-Ground Wire
White
From Hanger Bracket
Green-Ground Wire
From Hanger Ball
Green Wire
from Supply
(Ground)
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Receiver (2)
(Ground)
Green-
Green Wire
Ground wire
from Hanger
From Ceiling
Ball (Ground)
Figure 5
11
White Wire
Listed
from Supply
Outlet Box
White Wire
from Receiver
Black Wire
from Supply
Receiver
Black/White Wire
from Receiver
Ceiling Canopy
Figure 1
Canopy Screw Cover
Figure 2
Household
Supply
