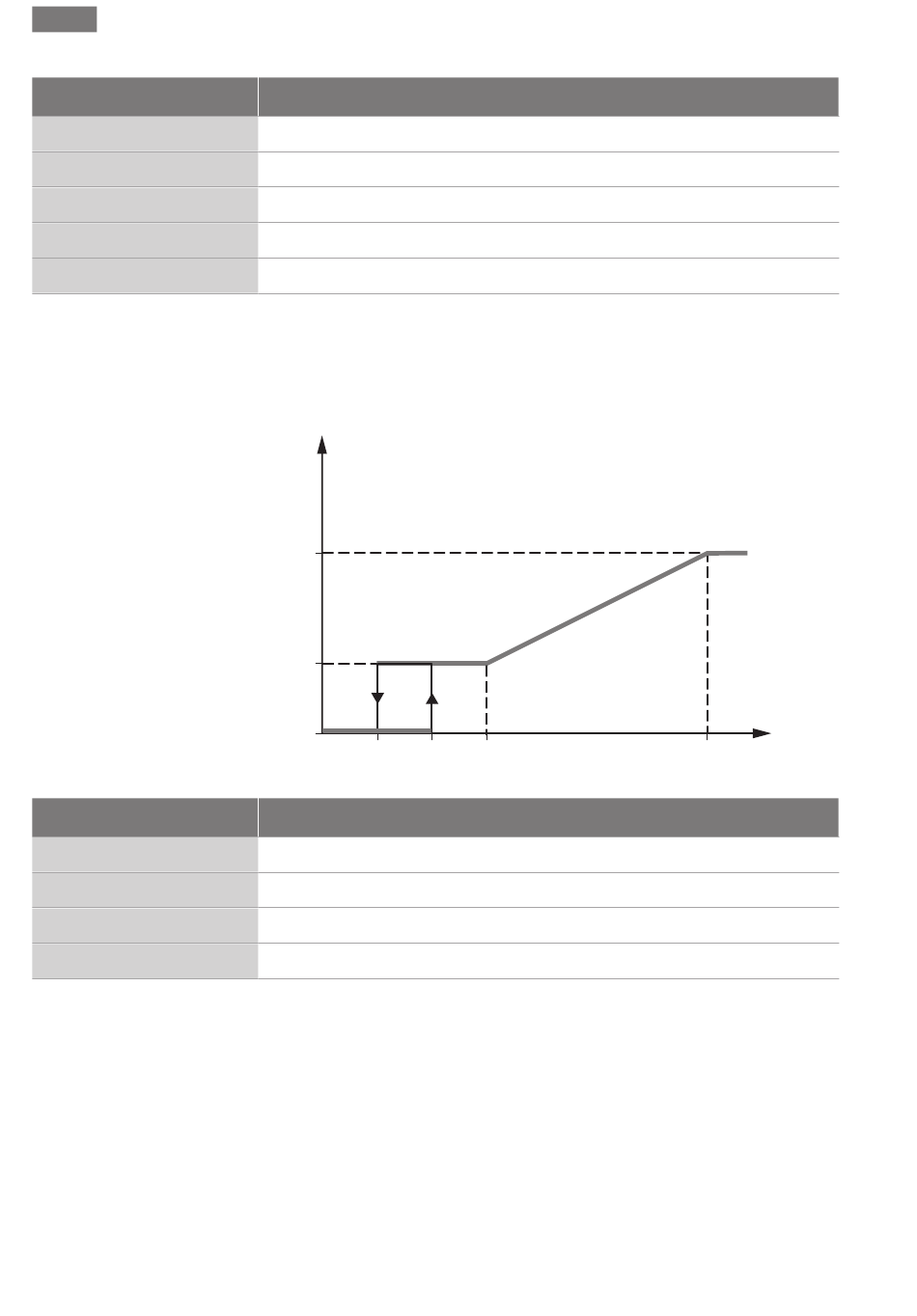

Description and function
Analogue signal input (V)
< 0.5
0.5 ... 1
1 ... 3 (operation)
2 ... 3 (starting)
3 ... 10
Control input "Analogue In 0 ... 10 V" without cable break function
The pump is controlled according to an analogue signal in the range of 0 ... 10 V. Be-
haviour when a cable breaks: If the signal cable is disconnected from the pump, e.g.
due to a cable break, the pump stops.
Analogue signal input (V)
< 1
1 ... 3 (operation)
2 ... 3 (starting)
3 ... 10
Collective fault signal SSM
Faults always result in the activation of the collective fault signal "SSM" via a relay.
The contact of the collective fault signal (potential-free normally closed contact) can
be connected to the system for the purpose of registering any error messages that
may occur.
The internal contact is closed if the pump is without power, if there is no fault or if
there is a malfunction of the control module.
The internal contact is open if the pump detects a fault.
74
Pump reaction
Pump runs at minimum speed (emergency operation).
Pump stops.
Pump runs at minimum speed.
Pump runs at minimum speed.
The speed of the pump increases linearly from n
1
n/
/min
n
max
n
min
Off
1
Pump reaction
Pump stops.
Pump runs at minimum speed.
Pump runs at minimum speed.
The speed of the pump increases linearly from n
2
3
to n
.
min
max
10
U/V
to n
.
min
max
WILO SE 2022-04
