19991LFp
Model Number:
Número del modelo
Numéro de modèle
Date of Purchase: ____________________
Fecha de compra
Date d'achat
Register Online
Regístrese en línea
S'enregistrer en ligne
www.deltafaucet.com/registerme
To reference replacement parts and access additional
technical documents and product info,
visit www.deltafaucet.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.deltafaucet.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.deltafaucet.com
?
1-800-345-3358
www.deltafaucet.com/service-parts
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :

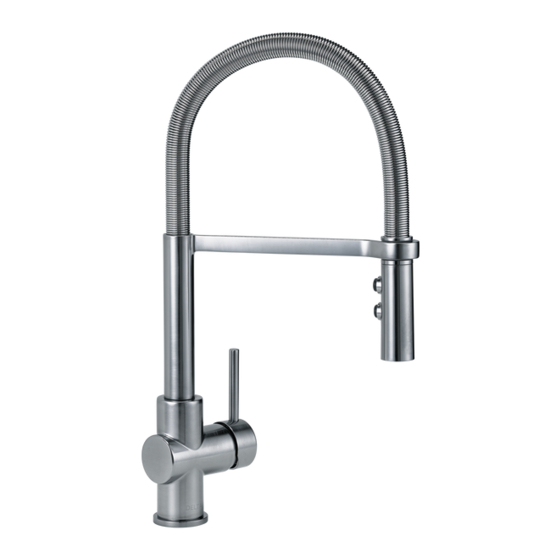

SINGLE HANDLE KITCHEN FAUCET
95031
ROBINET DE CUISINE À UNE MANETTE
LLAVE DE FREGADERO UNA MANIJA
1
03/01/2023 Rev. D
Publicidad
Manuales relacionados para Delta 19991LF Serie
Resumen de contenidos para Delta 19991LF Serie
- Página 1 SINGLE HANDLE KITCHEN FAUCET 95031 ROBINET DE CUISINE À UNE MANETTE LLAVE DE FREGADERO UNA MANIJA 19991LFp Model Number: Número del modelo Numéro de modèle Date of Purchase: ____________________ Fecha de compra Date d’achat Register Online Regístrese en línea S’enregistrer en ligne www.deltafaucet.com/registerme To reference replacement parts and access additional technical documents and product info,...
- Página 2 Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto.
- Página 3 Mount Faucet to Deck Your faucet is designed for a one hole diameter of Secure faucet to sink with washer and mounting nut (1). Tighten securely by hand. Using a 1-13/32” ± 5/32” (36 mm ± 4 mm) and a deck thickness Phillips screwdriver, tighten locking screws (2).
- Página 4 Tubing is not cut perpendicular to the axis of the tube: connection. Do not use pipe dope or other so in a way that allows a leak-free joint to be created. Delta is carefully make an additional cut, being careful not to cut sealants on water line connections.
- Página 5 Correct method Incorrect Installation Instalación Incorrecta Método Correcto Installation Incorrecte Bonne méthode Do not install sleeve NOTICE Ensure cut is straight. upside down. Failure to use plastic sleeve (ferrule) in the correct orientation will result in disconnection and possible water damage. No instale la manga Asegúrese que el corte 1.
- Página 6 OPTIONAL / FACULTATIVE / OPCIONAL Unscrew hose from spray head. Turn on hot and cold water supplies (1). Pull the hose assembly (2) out of the spring. Be sure to hold the end of the hose down into the sink and turn faucet handle (3) to the mixed position. (Tilt handle back to turn on.) Flush water lines for one minute.
- Página 7 Maintenance If faucet exhibits very low flow: Unscrew spray wand from hose and aerator from wand to flush any debris from their filter screens (1) and (2). If faucet leaks from under handle or from spout outlet: Remove handle bar (3) by loosening its screw. Remove handle cap (4) by loosening set screw (5) inside of handle. Remove cap (6) by rotating counter-clockwise.
- Página 8 What You Must Do To Obtain Warranty Service or Replacement Parts: A warranty claim may be made and replacement parts may be obtained by calling 1 800 345 DELTA (3358) or by contacting us by mail or online as follows (please include your model number and date of original purchase): ©...
