38 | English
Never reach behind the saw blade to hold onto the
u
workpiece, remove wood chips or for any other
reason. The clearance between your hand and the rotat-
ing saw blade is too small when you do this.
Only advance the workpiece towards the saw blade
u
when it is running. Otherwise there is a risk of kickback
occurring if the saw blade catches in the workpiece.
Only saw one workpiece at a time. Workpieces placed
u
on top of or alongside each other can cause the saw blade
to jam or the workpieces to move out of place and against
each other when sawing.
Always use the parallel guide or angle guide. This im-
u
proves the cutting accuracy and reduces the possibility of
the saw blade jamming.

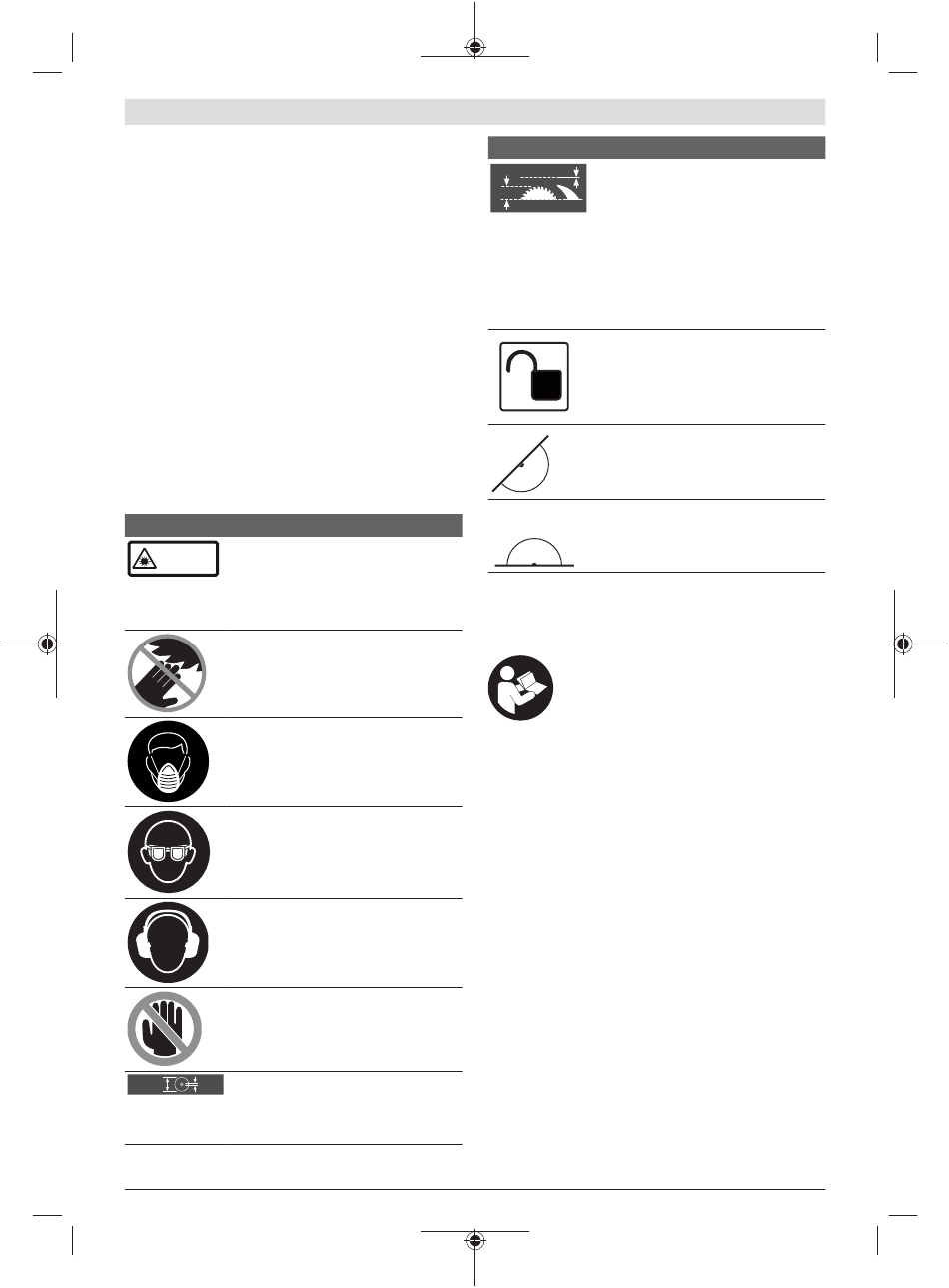

Symbols
The following symbols may be important for the operation of
your power tool. Please take note of these symbols and their
meaning. Correctly interpreting the symbols will help you to
operate the power tool more effectively and safely.
Symbols and their meaning
Laser radiation
IEC 60825-1:2014<1mW, 650nm
LASER RADIATION
DO NOT STARE INTO BEAM
Do not look directly into the beam
CLASS 2 CONSUMER LASER
PRODUCT EN 50689:2021
Class 2 consumer laser product
EN 50689:2021
Keep hands away from the cutting area
while the power tool is running. Con-
tact with the saw blade can lead to injur-
ies.
Wear a dust mask.
Wear safety goggles.
Wear hearing protection. Exposure to
noise can cause hearing loss.
Danger area! Keep hands, fingers and
arms away from this area.
Take note of the dimensions of the saw
305mm
Ø max.
30mm
Ø
300mm
Ø min.
blade. The hole diameter must match the
tool spindle without play. Do not use a re-
ducer or adapter.
1 609 92A 7SS | (06.03.2023)
Symbols and their meaning
When changing the saw blade, make sure
2 mm
that the cutting width is no smaller than
51mm
2.0 mm and the base blade thickness is
no larger than 2.0 mm. Otherwise, there
is a risk that the riving knife (2.0 mm) will
hook into the workpiece.
When using the combination saw as a
table saw, the maximum workpiece
height is 51 mm.
Symbol on the bracket (11) to swivel and
lock the retracting blade guard
and
symbol on the button (17) to unlock the
tool arm
Symbol for using the combination saw as
a mitre saw
Symbol for using the combination saw as
a table saw
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.

Intended Use

The power tool is intended as a stationary machine for mak-
ing straight cuts in wood with and against the grain. It is pos-
sible to cut mitre angles of –48° to +48° and bevel angles of
–2° to +47°. The power tool is designed with sufficient capa-
city for sawing hardwood and softwood as well as chipboard
and fibreboard.
It is not permitted to use this power tool as a table saw for
sawing aluminium or other non-ferrous metals.
This product is a consumer laser product in accordance with
EN 50689.

Product Features

The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1)
Power off button
(2)
Power on button
Mounting holes
(3)
(4)
Recessed handles
(5)
Hex key (6 mm)/slotted screwdriver
Bosch Power Tools
