9.

ASSEMBLY INSTRUCTIONS

9.1
Remove all cord wraps and uncoil the cables prior to using the battery charger.

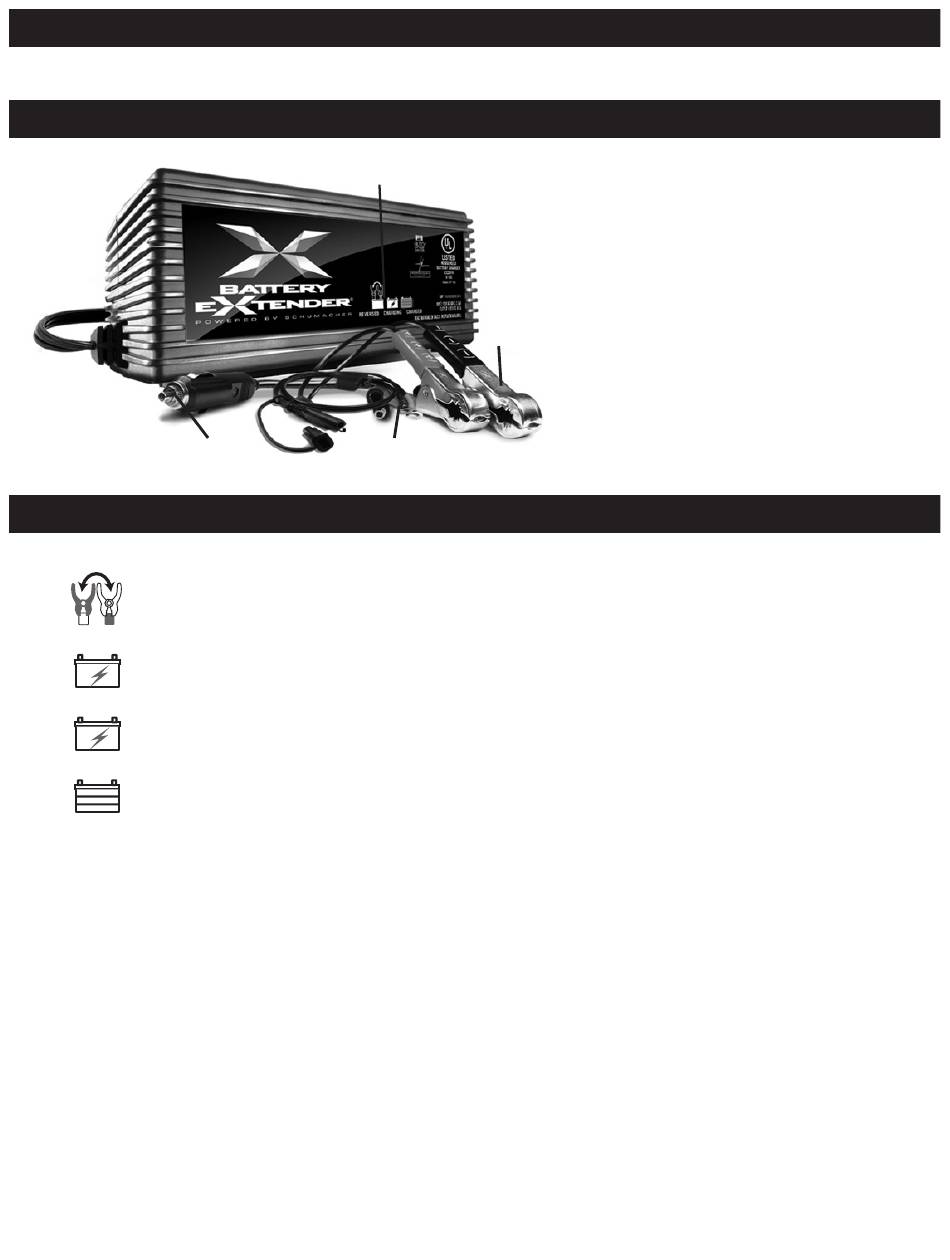

10. FEATURES

11. CONTROL PANEL

LED DISPLAY

CLAMPS REVERSED (red) LED flashing: The connections
are reversed.
CHARGING (yellow/orange) LED lit: The charger is charging
the battery.
CHARGING (yellow yellow/orange) LED flashing: The charger
is in abort mode.
CHARGED (green) LED pulsing: The battery is fully charged and the
charger is in maintain mode.
NOTE: See the Operating Instructions section for a complete description of
the charger modes.
1
4
3
1. Battery status LEDs
2. Battery clamps (quick-connect)
3. Ring connectors
(quick-connect)
2
4. 12V accessory plug
(quick-connect)
• 7 •
