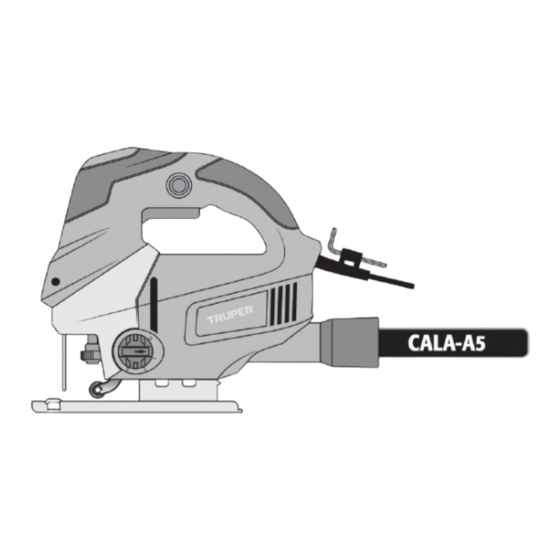

- Página 1 Manual Variable speed 1 Hp jig saw Power Applies for: Code Model 15423 CALA-A5 CALA-A5 Read this manual thoroughly CAUTION before using the tool.
- Página 2 Safety warnings for jig saws using the tool. Parts Keep this manual for future references. Preparation The illustrations in this manual are for reference only. They might be different from the real tool. Start up Maintenance Notes Authorized service centers Warranty policy CALA-A5 ENGLISH...
- Página 3 Technical data CALA-A5 Code 15423 Description Variable speed jig saw Voltage 127 V Frequency 60 Hz Current 5.9 A Power 1 Hp Speed 800 strokes / min - 3 000 strokes / min Miter cutting 0° - 45° left / right...
- Página 4 General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
- Página 5 Safety warnings for jig saws Select the adequate blade While operating the jig saw CAUTION CAUTION • Select the adequate blade for the • Hold the tool by the insulated griping material. Reduce the risk of severe personal injury and parts when there is risk of making contact with hidden make the job faster.
- Página 6 Parts Speed Handle control Lock-on button Allen Switch Power cord protector Power cord Protection Balancing Vacuum action control cleaner adapter Screws for Blade Roller guide Base Allen screws adjustment of support plate cutting angle Parallel guide Preparation Blade set up •...
- Página 7 • Connect the extraction hose to the dust extraction port of the machine with an internal diameter of 1 3/8” (35 mm) (not compatible with Truper brand vacuums). • Connect the dust extraction hose to a dust extractor or vacuum cleaner.
- Página 8 Start up Start up and operation control • Intermittent Operation: Connect the plug to the electrical outlet. Press the switch (A) to start the jig saw operating. To interrupt its use, simply release the switch. • Continuous Operation: Connect the plug to the electrical outlet. Press the switch (A) and lock it by pressing the Lock-on button (B).
- Página 9 Start up Cut wood sheets Straight cut • When cutting most wood sheets or very thin wood use • To make more accurate straight cuts, use the parallel a blade with fine teeth. Reduce splinters in the edges. • guide provided with the tool by resting it against the edge Clamp scrap pieces of wood onto both faces of the work of the workpiece.
- Página 10 Maintenance Carbon brush replacement WARNING Disconnect the tool from the power source before making adjustments, service o maintenance to the jig • Carbon brushes need to be checked regularly and when saw. worn, replaced in a Authorized Cleaning and care Service Center.
- Página 11 Authorized service centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800-018-7873 to get information about the nearest Service Center.
- Página 12 It includes the costs of transportation of the product that derive from its fulfillment of its service network. Phone number 800-018-7873. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
