External Dimensions; Specifications; Wiring Diagram; Preinstallation - Dometic P702 Instrucciones De Montaje Y De Uso

Center Console Refrigerator
2 - Component locations
1. Refrigerator unit
2.ON/OFF button w/LED
3.Condenser fan
4.Front fan
4.4

External dimensions

This section identifies the refrigerator's external dimensions.

1

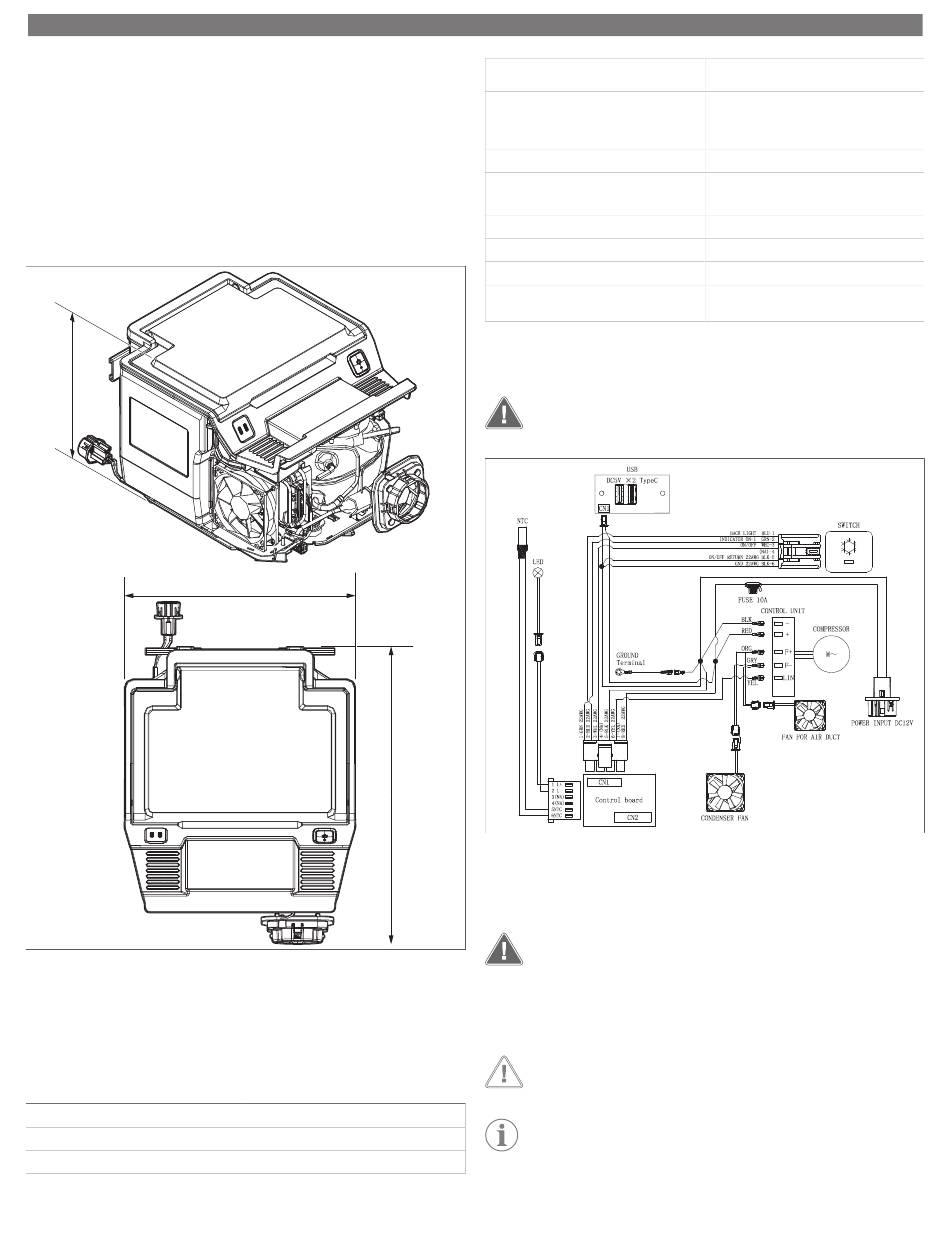

3 - External dimensions
1. Height: 11.1 in (282.4 mm)
2.Depth: 12.8 in (325.6 mm)
5 Specifications
Weight
Voltage input
Low voltage protection
5.12 V power cable
6.12 V power plug
3
2
3.Width: 10.7 in (273.0 mm)
12.1 lb (5.48 kg)
12-16 V DC
12.3 V DC
Energy consumption at startup
Energy consumption during
operation at 90.0 °F (32.2 °C) ambient
Internal volume
Beverage storage capacity
Refrigerant and charge
Temperature setpoint
Interior light
Vehicle models

6 Wiring diagram

WARNING! ELECTRIC SHOCK HAZARD
Turn the power off before performing any electrical installation or mainte-
nance activities.

4 - Wiring diagram

7 Preinstallation

WARNING! CARBON MONOXIDE AND/OR VEHICLE SAFETY HAZ-
ARD
• Park the vehicle in a well-ventilated area during the installation process.
• Turn off the vehicle's engine.
• Ensure the vehicle is in Park with the handbrake engaged at all times
during the installation process.
NOTICE!
Avoid pinching, crushing, or breaking the wires or power cable. Otherwise
damage to the refrigerator could occur.
Note The console lid should remain open during the preinstallation and in-
stallation procedures.
5.6 A
4.2 A
1.72 gal (6.5 L)
• Six 16.907 fl oz (500.00 mL) bottles
• Nine 12.004 fl oz (355.00 mL) cans
R134a 1.0 oz (28.35 g)
37.0 °F (2.8 °C)
LED
Ford F-150 (2021+) with flow through center
console
