The indicator aligns with the left (outer) side of the saw
blade. The moving blade making the slot or "kerf" cut falls
to the right of the indicator. Position the saw along the
penciled cutting line so that the kerf falls into the waste
or surplus material. Marking indicators on the front of
the foot plate are at 1/2" (13 mm) intervals for additional
cutting guides.

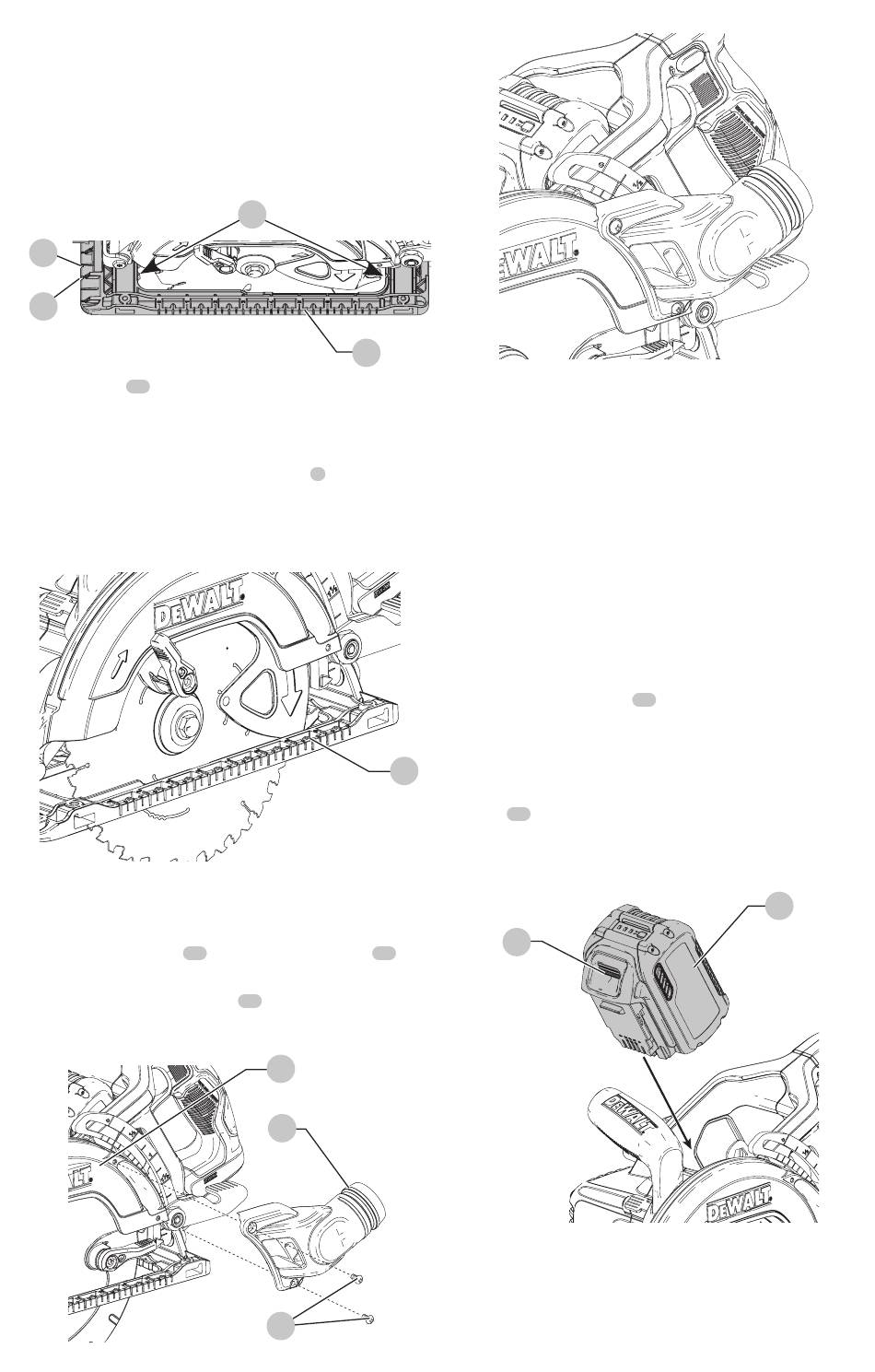

Fig. I
8
7
18
Kerf indicators
are also located on the inside of the foot
plate to keep the saw square when cutting.
Cut Length Indicator (Fig. J)
The markings on the side of the foot plate
length of the slot being cut into the material at the full
depth of the cut. The markings are in increments of 1/8"
(3.2 mm).
Fig. J
Assembling the Dust Port (Fig. K)
(Optional Accessory)
21
1. Align the dust port
as shown.
2. Insert two dust port screws
tighten securely.
Fig. K
18
5
5
show the
22
over upper blade guard
23
as shown and
22
21
23
OPERATION
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can cause injury.
iMPORTAnT: Always make sure the depth adjustment
locking lever is in the down position before operating saw.
Installing and Removing the Battery Pack
(Fig. L)
nOTE: For best results, make sure your battery pack is
fully charged.
To install the battery pack
battery pack with the rails inside the tool's handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does not disengage.
5
To remove the battery pack from the tool, press the release
14
button
and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of this manual.
Fig. L
14
