6 Assembling the Cultivator
6.4 Attaching the Blade Spur

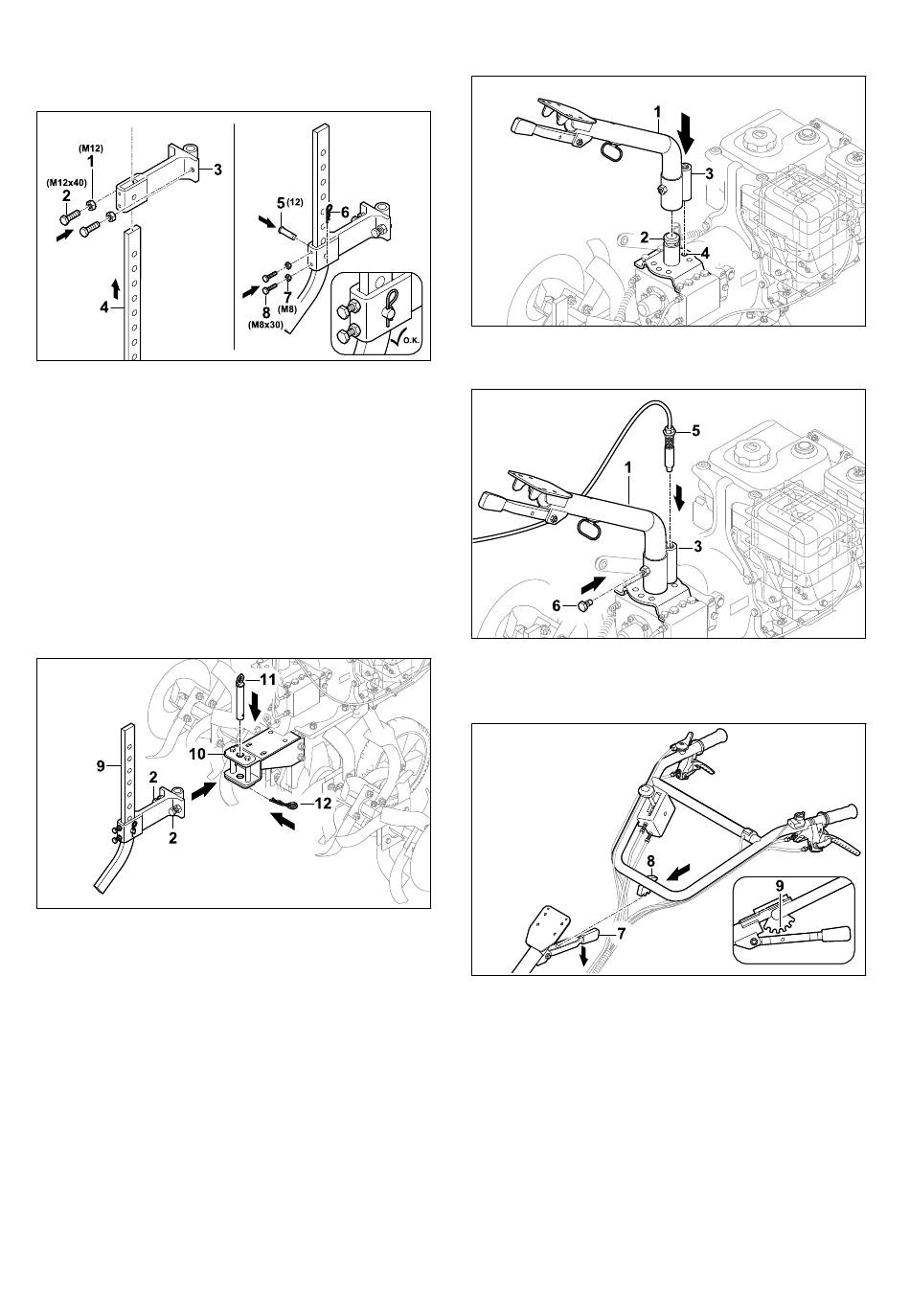

Assembling the blade spur
► Screw nuts (1) onto bolts (2) and screw into
the bores in adapter (3).
► Fit blade spur (4) into adapter (3) from below
so the bore on adapter (3) aligns with the low‐
ermost bore on blade spur (4).
► Insert pin (5).
► Push retaining pin (6) through the bore in
pin (5).
► Screw nuts (7) onto bolts (8) and screw into
the bores in adapter (3).
The blade spur is secured.
Attaching the blade spur
► Insert the adapter with attached blade spur (9)
into mount (10) on the tiller.
► Insert pin (11).
► Push retaining pin (12) through the bore in
pin (11).
► Install screws (2) and tighten firmly.
The blade spur is secured.
0478-404-9905-C
6.5

Attaching the Handlebar

► Fit lower handlebar (1) onto mount (2) and
align locating lug (3) with centre position (4).
► Screw pin (5) into locating lug (3) and tighten.
► Screw in bolt (6).
Lower handlebar (1) is locked in place.
► Press lever (7) downwards and hold.
► Insert upper handlebar (8).
► Release lever (7) and allow upper handle‐
bar (8) to engage at centre detent (9).
Upper handlebar (8) is locked in place.
