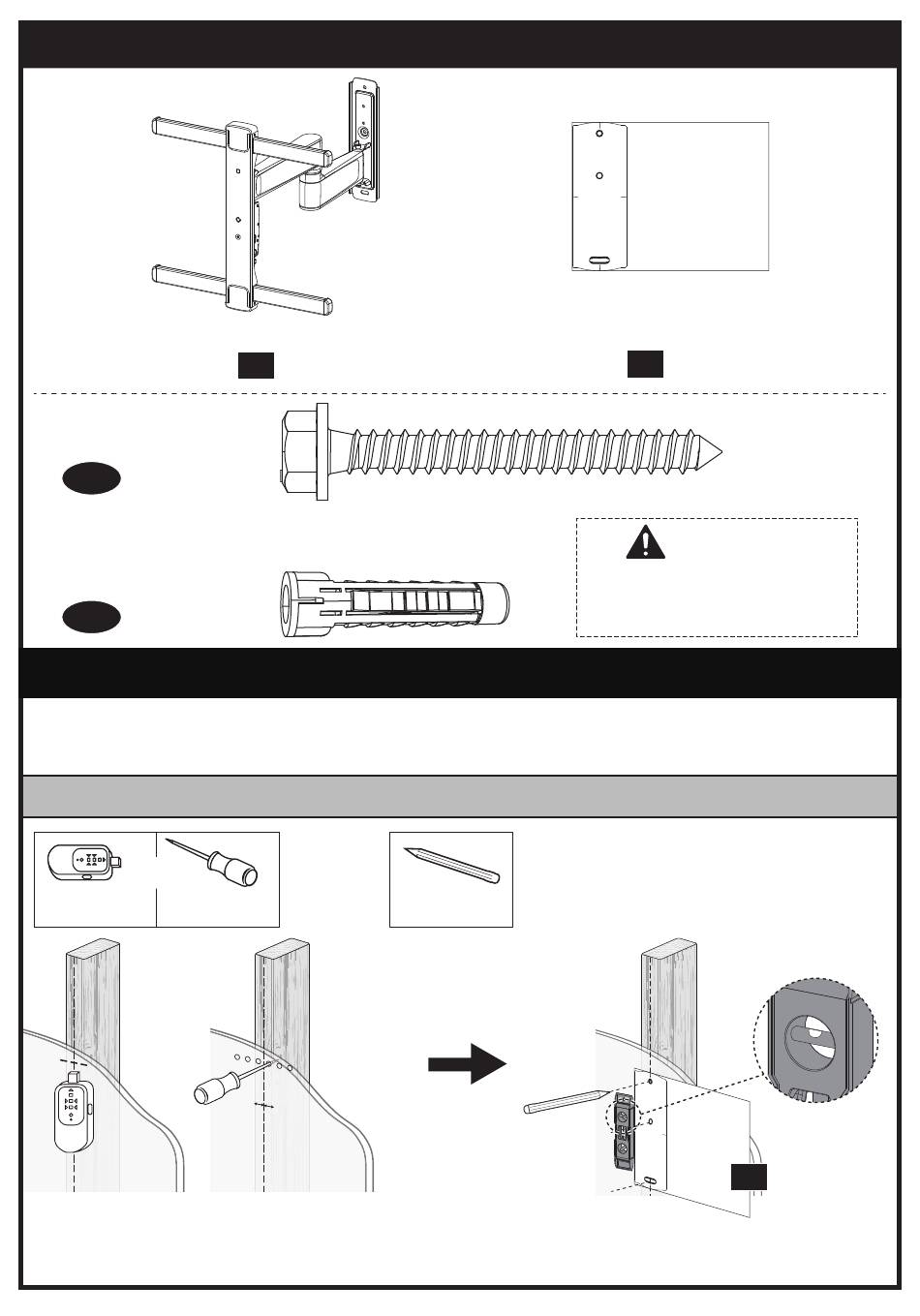

Supplied Parts and Hardware for Step 2
Arm Assembly / Wall Plate
Lag Screw
ST 5/16 x 2 3/4"
A1
x 3
Wall Anchor
A2
x 3
Step 2 Mount the Arm Assembly / Wall Plate on the Wall
Option A: For Wood Studs, follow Page 10-11.
Option B: For Solid Concrete or Concrete Block Wall, follow Page 11-12.
Option A
OR OR
Stud Finder Awl
(NOT Included) (NOT Included)
OR
Use a stud finder to locate wood studs, or use an awl to find the edges. Mark the edge and center
positions. Position the Wall Plate Template [03] at your desired height and line up the holes with your
stud centerline. Level the Wall Plate Template [03] and mark the holes.
02
x 1
(NOT Included)
Wall Plate Template
This anchor is for concrete or
brick walls ONLY. DO NOT use
them in drywall or wood studs.
Pencil
10
x1
03
CAUTION!
03
