PREPARATION BEFORE USE

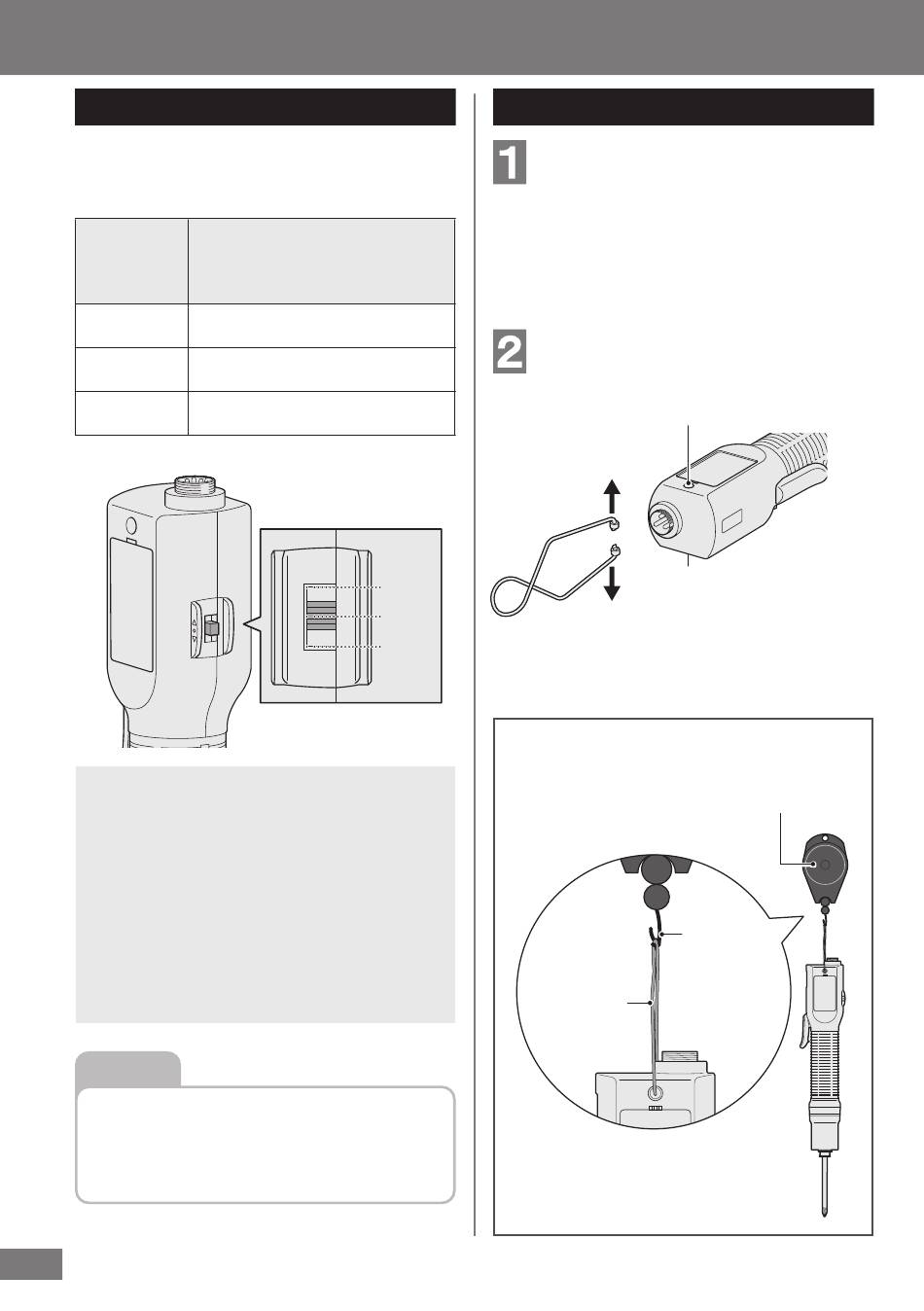

Using Forward/Reverse Lever

With the forward/reverse lever, you
can change the rotation direction of the
Electric Screwdriver or lock the start.
Trigger
switch
position
R
○
F
Trigger switch lock
When you switch the forward/reverse
lever to the "○" position, the start of
the Electric Screwdriver is locked and
it does not rotate.
When attaching accessories or a
bit, or when not working, switch the
forward/reverse lever to the "○"
position to lock the trigger switch.
NOTE
⿟ If the forward/reverse lever is
switched while the motor is
in action, the motor is forcibly
stopped to rotate.
10
EN
Rotation direction
Reverse (Anticlockwise)
Trigger switch locked
Forward (Clockwise)
Attaching Screwdriver Hanger
Pull the screwdriver hanger
lightly on both sides.
Pulling the screwdriver hanger hard
may prevent it from returning to its
original position.
Perform attachment and removal
with necessary force.
Put it into the screwdriver
hanger mounting hole.
R position
○ position
Pull the screwdriver
F position
hanger lightly on
both sides.
Attach the screwdriver hanger and the
tool balancer as shown in the figure.
Screwdriver
hanger
Hang the screwdriver hanger
on a hook of the tool balancer.
Screwdriver hanger mounting hole
Screwdriver hanger
mounting hole
Tool balancer
Hook
