Prior to use

Connecting Cables

Attention
• When replacing the current monitor with an M1700/M1900 monitor, be sure to change the PC settings for
resolution and vertical frequency to those which are available for the M1700/M1900 monitor referring to
the resolution table (back of cover page) before connecting the PC.
NOTE
• To use speaker, connect a stereo mini-jack cable to the Audio output terminal on a PC or CD player.
• When connecting two PCs to the monitor, refer to the User' s Manual on the CD-ROM.
1
Check that the monitor and the PC are powered off.
2

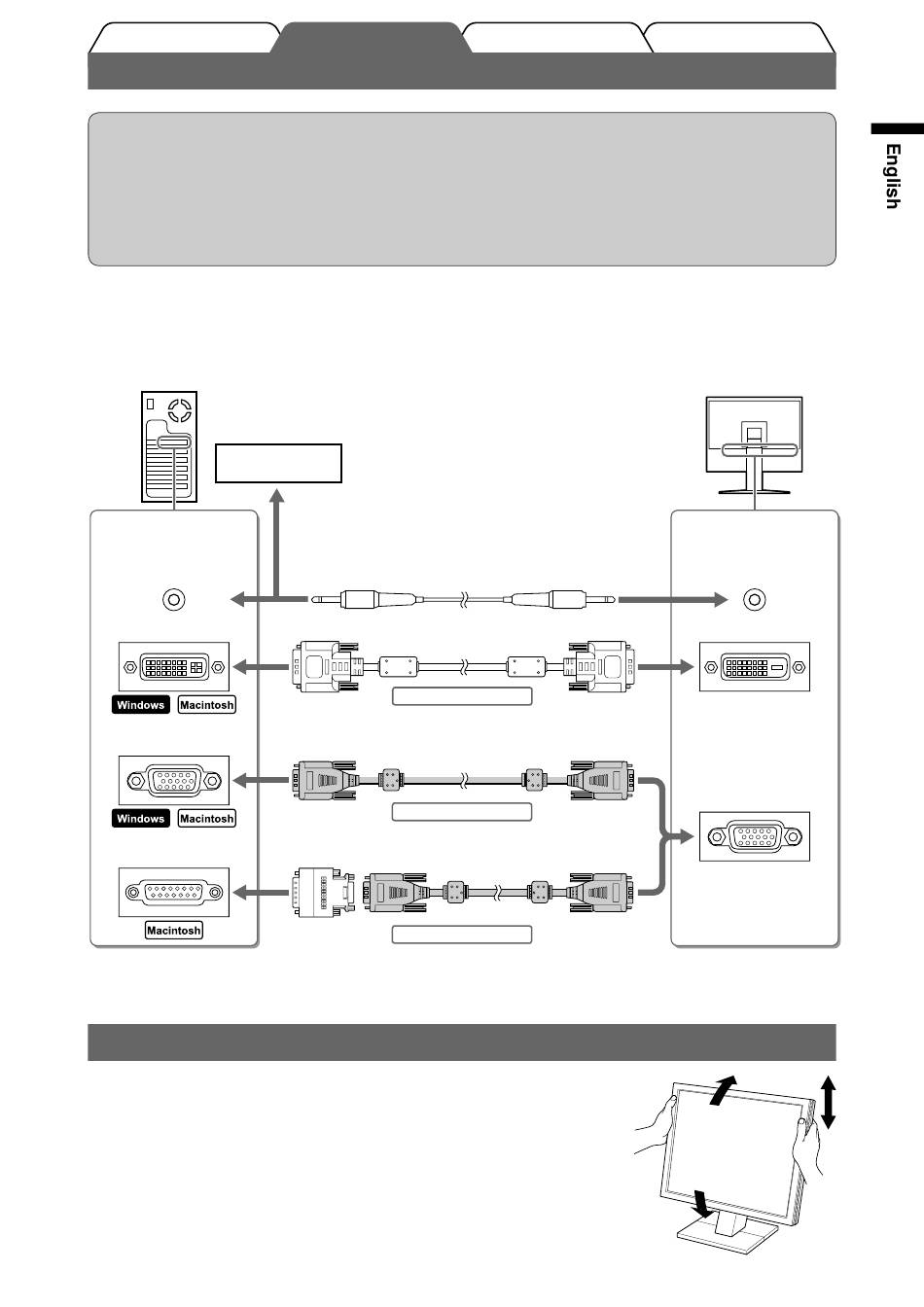

Connect the monitor to the PC with a signal cable that matches the connectors.
After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.
CD player etc
Connectors on the
PC
Audio output terminal
(Stereo mini-jack)
DVI-I connector
D-sub mini 15-pin
connector
D-sub 15-pin
connector
3
Plug the power cord into a power outlet and the Power connector on the monitor.
Adjusting Screen Height and Angle
Adjust the screen height, tilt and swivel the screen to the best condition for working.
Installation
Audio output terminal
(Stereo mini-jack)
Stereo Mini-jack cable (supplied)
Signal cable FD-C39 (supplied)
Digital connection
Signal cable MD-C87 (supplied)
Analog connection
Macintosh Adaptor (optional) and
signal cable MD-C87 (supplied)
Analog connection
