5 OPERATING

This chapter describes the function of the controls and indicators, the operating modes,
how to set up and operate the machine and a number of applications.
5.1

Process controls

This section gives an overview of the functions of the controls on the control panel
(Figure 9), the heater control (Figure 10) and elsewhere on the machine (Figure 12).
Note:
Switch on the heaters approximately 1 hour before use, if a process requires the rollers
to be heated. Close the nip and let the machine run at low speed, to avoid uneven hot
spots.

5.1.1 Control panel

This paragraph describes the controls and indicators on the control panel.
When LED's are blinking, this indicates an error. Refer to section 5.1.4 for their meaning.

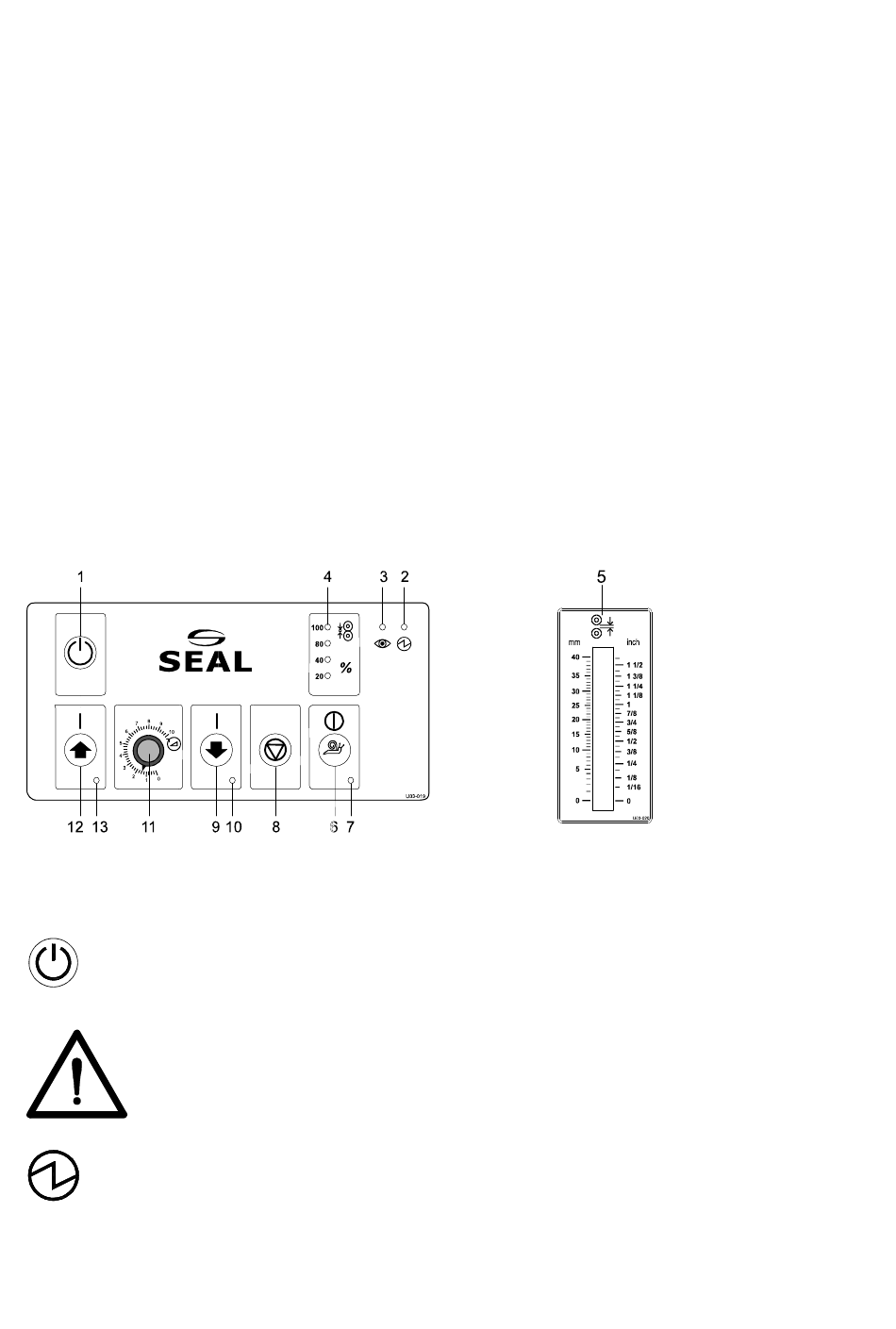

Figure 9: Control panel.
The panel on the right is situated on the right-hand cabinet.
Control ON/OFF (1), toggle pushbutton;
Press for 1 second to switch the machine from stand by to active and back.
WARNING:
THE MACHINE IS CONSTANTLY POWERED WHEN THE POWER CORD
IS PLUGGED IN AND THE MAIN POWER SWITCH IS TURNED TO ON.
Power indicator (2), LED;
The LED lights up when the machine is powered.
It flashes when the machine is in stand-by mode.
