Medi-Therm III
®
Water Fill Opening
Lift cover. Fill unit with
distilled water until green
band on float is fully visible
(p. 6)
control panel
Medi-Therm III
ON/OFF Switch machine
(Circuit Breaker)
Controls power to
Medi-Therm III.
Dual Blanket/Body Wrap
Connections with Quick-
disconnects and Probe
Check Well
Use the PROBE CHECK well
to verify the integrity of the
patient probe (p. 13).
Patient Probe Jack
Accepts patient probe plug connecting
patient probe to machine (pp. 8, 10).
Use only Gaymar probes or equivalent
YSI 400 series probes approved for use
with medical devices.
Gaymar probe or equivalent YSI
400 series probe approved for use
with medical devices.

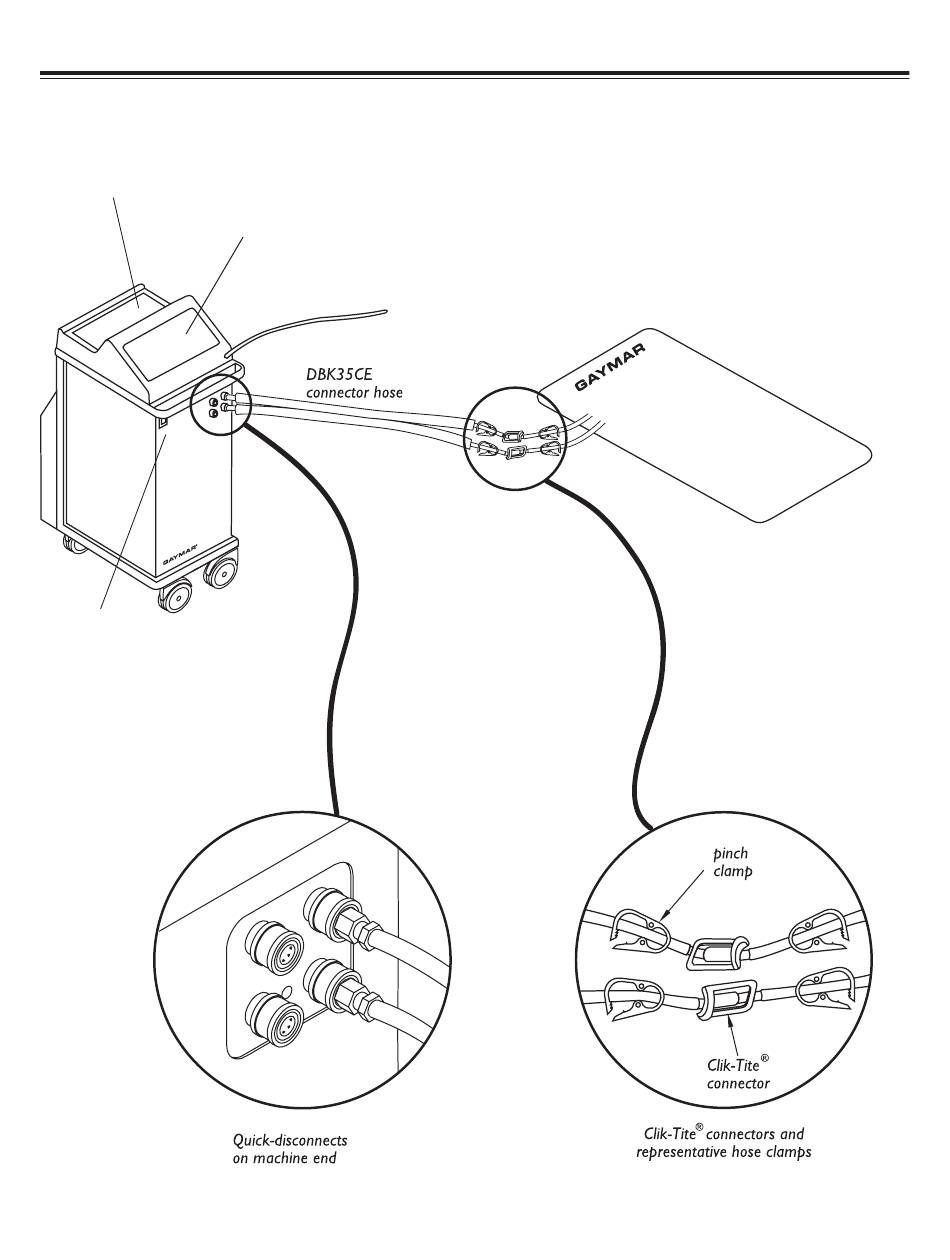

Figure 1—Medi-Therm III Hyper/Hypothermia System
Description
Hyper/Hypothermia
blanket/body wrap
