3 Component parts (fig. 1)
The Shuttle Lock Set consists of:
(1) 6Y13=1 Pin
(2) Shuttle Lock Housing
(3) 6A52 Ratchet Unit
and 5X125 Dummy Set with screw
(4) Dummy Sleeve
(5) Dummy Plate with four screws
(6) Dummy for Ratchet Unit, long
(7) Dummy for Ratchet Unit, short
4 Assembling and laminating
Caution!
Installation of the pin in a liner that is not approved
Falling due to loosening of the screw connection
• Only install the pin in liners with a metal thread and observe the
specified tightening torque.
• Inform the patient.
For more details about the fabrication of a transtibial prosthesis with Liner
and 6A30=10 Shuttle Lock refer to the Technical Information Sheet 2.1.6.
8 | Ottobock

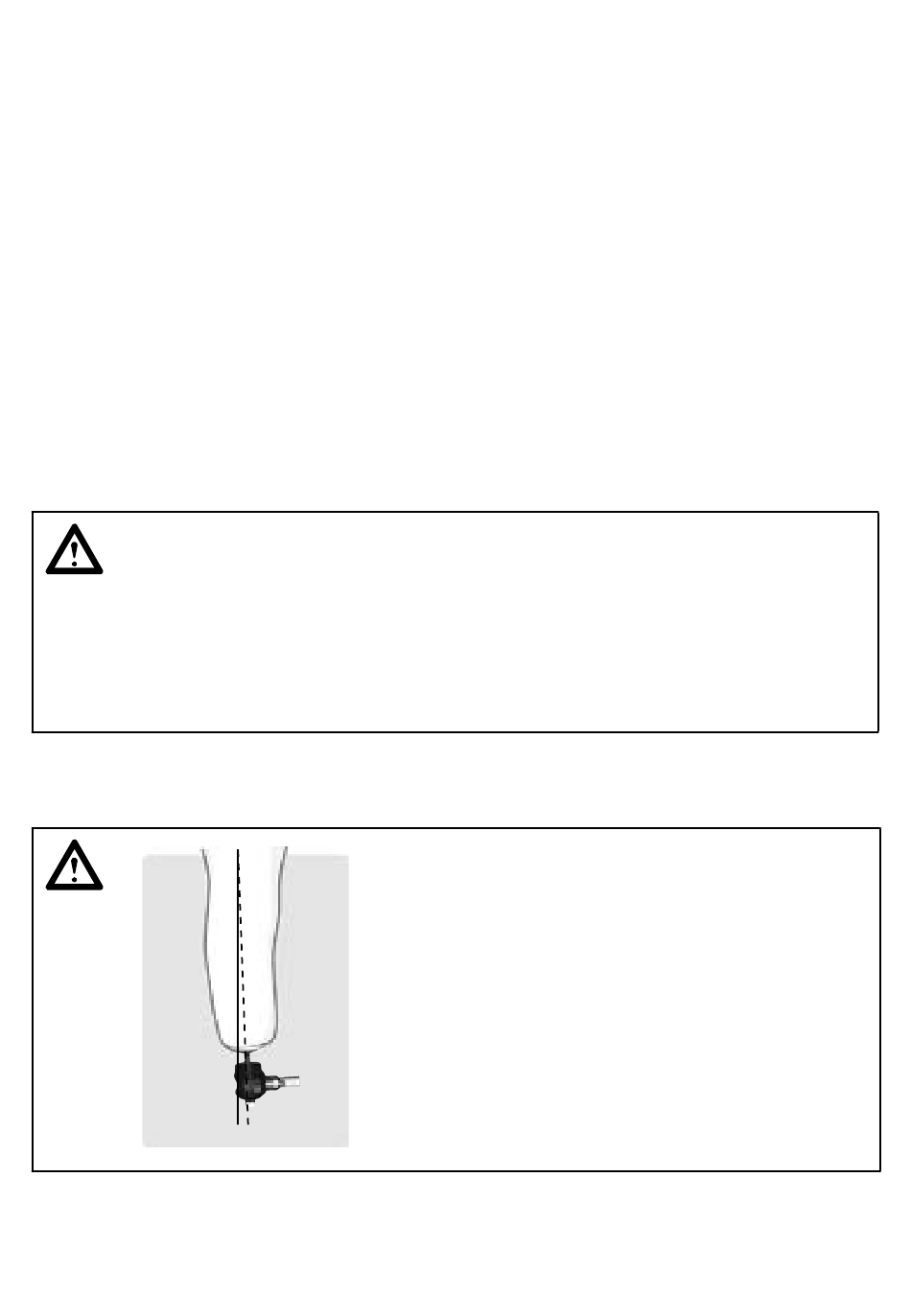

Caution!
Sometimes the alignment line (solid line)
differs from the long axis of the stump
(broken line). The shuttle-lock must follow
the broken line.
