Assembly Instructions
Fig. 4
DO NOT USE lAG
SCREWS HERE
Use Lag Screws Only Where
Brackets Attach
(2)
1-1/4'' Lag
screws per
bracket
(2)
1-1/4'' Lag
Screws
per joint
47-1/4''
59-1/4''
47-1/4''
Frame 2
Frame 2 Assembly

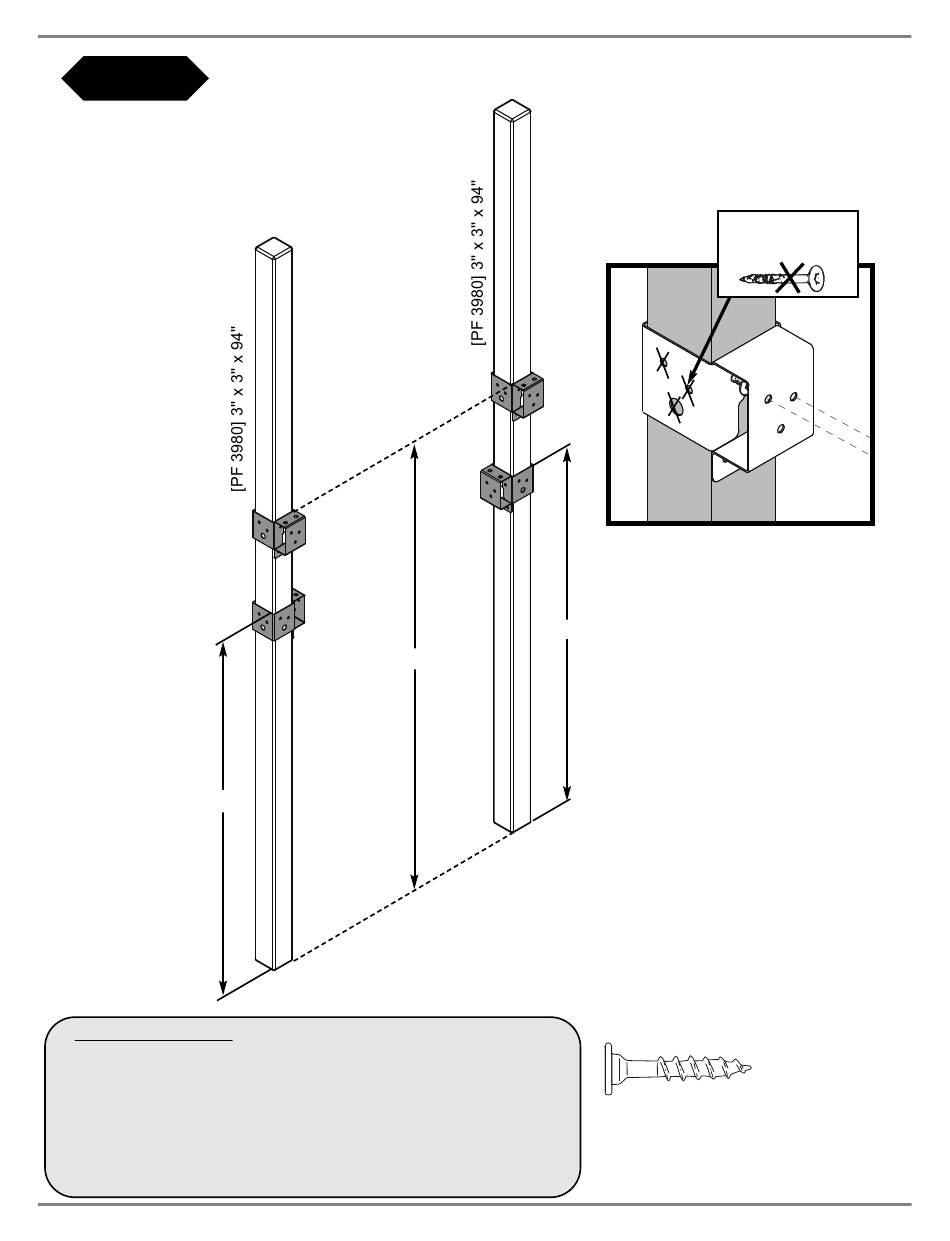

1. Attach brackets to the uprights shown in (Fig. 4).
Note: There will be no pre-drilled holes in these uprights.
1-1/4'' Lag Screw
