DynaTrap DT2000XLP Manual Del Propietário

DT2000XLP
OWNER'S MANUAL
FLYING INSECT TRAP
Thank you for purchasing
the DYNATRAP
®
flying insect trap!
This product may be covered by one or more U.S. patents
or pending patent applications. See www.dynatrap.com/patents
IMPORTANT, RETAIN
FOR FUTURE REFERENCE:
READ CAREFULLY
WARNING: When using electric appliances, basic precautions should always be followed, including the following:
– To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.
– Unplug from outlet when not in use and before servicing or cleaning.
– To reduce the risk of electrical shock, do not put appliance in water or other liquid.
– This appliance is provided with double insulation. Use only identical replacement parts.
CAUTION: To reduce the risk of injury from moving parts, unplug before servicing.
WARNING: Risk of Electric Shock.
See instructions for Servicing of Double-Insulated Appliances.
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions before using the DynaTrap Mosquito Trap and keep for future reference.
®
1. Always turn unit off and disconnect plug before servicing, cleaning, or changing bulb.
2. Do not position the unit near heat, gas, oil or other flammable materials.
3. Mount product out of reach from children.
4. Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or if it has been dropped into water.
5. Do not insert fingers or any foreign objects into the unit while it is connected to an electrical outlet.
6. Collected mosquitoes within the unit may contribute to fire, so clean insects from the unit frequently.
7. Do not clean this product with water spray. Do not place where it can fall into water, or near flammable materials.
8. Do not touch fan while in motion.
9. Do not abuse cord—never carry or hang unit by cord or yank it to disconnect from receptacle. Keep cord away from
heat, oil, or sharp edges.
10. Use only extension cords that are clearly marked "Suitable for Use with Outdoor Appliances" and that have plug and
receptacles that match the product plug. Replace all damaged cords.
11. Only use attachments recommended or sold by the manufacturer.
12. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
13 Do not use the machine on desk or in hand.
14. SERVICING OF DOUBLE-INSULATED APPLIANCES - In a double-insulated appliance, two systems of insulation are
provided instead of grounding. No grounding means is provided on a doubleinsulated appliance, nor should a means for
grounding be added to the appliance. Servicing of a double-insulated appliance requires extreme care and knowledge of
the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated appliance
must be identical to those parts in the appliance. The symbol must be identical to those parts in the appliance. A double-
insulated appliance is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED." The symbol
INSTALLATION & OPERATING INSTRUCTIONS
1. Unpack unit. Save carton for off-season storage (if needed).
Remove cardboard insert from the retaining cage.
2. Place the air damper assembly in the retaining cage with the crossbar
facing up. Align the six damper notches with the matching notches on the
retaining cage.
3. Place the trap on the retaining cage and twist clockwise to the lock
position.
4. If hanging the unit, place it approximately 3–6 feet above floor or ground
for optimal catch-rate and easy access for cleaning. Unit can also be placed
on the floor or ground.
5. Plug cord into an outdoor outlet or UL listed extension cord as described
in "IMPORTANT SAFETY INSTRUCTIONS".
6. Turn power switch to "ON" position. The switch is located under the upper
housing near the light bulbs.
7. For best catch results leave unit on at all times, except when cleaning or
servicing.
8. Catch rate activity will be higher at night. For best catch results, place unit
away from other competing light sources.
9. It is recommended to place the unit 20 to 40 feet away from where people
will be sitting.
ENSAMBLAJE DE LA
10. This unit is all-weather resistant – designed for outdoor use including rainy conditions.
AIR DAMPER ASSEMBLY
COMPUERTA DE AIRE
CLEANING
CROSSBAR TRAVESAÑO
Frequent cleaning will prolong the life of the unit, ensure fire prevention and provide for more efficient operation.
1. Remove the retaining cage by holding the trap securely and twisting counter clockwise.
ALIGNING
2. Grasp the edge of the crossbar and pull up firmly to remove damper assembly.
NOTCHES (6)
3. Dispose of contents and clean any build up from the inside of the retaining cage with a small brush.
MUESCAS PARA
4. Attach the air damper assembly to retaining cage and reattach to trap with a clockwise twist to the lock position.
ALINEACIÓN (6)
IMPORTANT: DO NOT press or push against the screen windows while cleaning or assembling.
REPLACING BULB Replace With DynaTrap Bulb #32050 (or equivalent T5 Type - 120V/6W UVA Bulbs)
The light bulb life expectancy is approximately 3,000 hours (or about 4 months), and should be replaced regularly to ensure
optimal UV effectiveness. Even though the bulb's light may be visible to you, its ability to attract insects diminishes over time.
1. Turn power switch to "off" position. UNPLUG UNIT, and allow bulb to cool before replacing. Turn the unit upside down.
2. Remove screws from clear plastic light socket covers. Remove both clear plastic covers.
RETAINING CAGE
3. Carefully turn bulb counterclockwise and then pull bulb straight out. JAULA DE
RETENCIÓN
4. Locate and insert new bulbs into sockets, carefully turn clockwise, and make sure the prongs of the bulb are seated properly.
5. Twist the light housing clockwise into place and secure the black threaded fastener.
1
2 UV LAMPS LOOP FOR HANGING
(OPTIONAL)

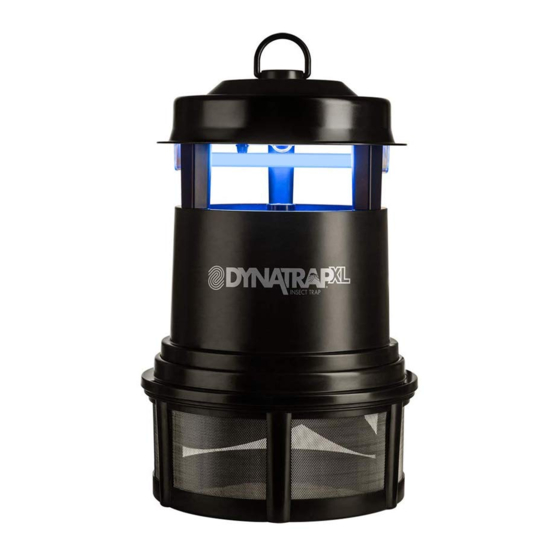

HOW THE DYNATRAP
Flying insects are attracted to the unit by the UV light
and CO2 that is generated by the photo-catalysis between
AIR DAMPER ASSEMBLY
the UV lamps and the special TiO2 coating. The fan then
pulls the insects into the screened base, trapping them
CROSSBAR
until they dehydrate and die. The base can be removed,
allowing the contents to be periodically emptied into the
ALIGNING
trash. The see-through screen shows the insects trapped
NOTCHES (6)
in the compartment, alerting you when the cage needs to
be emptied.
TROUBLESHOOTING
Problem:
RETAINING CAGE
Bulbs do not illuminate
and fan does not spin.
Bulbs illuminate, but fan
does not spin.
Fan spins, but bulbs do
not illuminate.
LIMITED WARRANTY
DYNAMIC guarantees to the original purchaser that this product is free from defective materials and workmanship. This
warranty is limited to remedy any defective part for a period of one year from date of original date of purchase. Retain
your original receipt as proof of purchase. This warranty does not apply to the light bulb, nor to, in our judgment, misuse
or abuse. If this unit has been altered, no warranty is in force. This warranty does not apply if this unit is purchased
outside the United States, excluding Canada and Mexico. In no case shall DYNAMIC be liable for any accidental, punitive,
consequential, or any other damages of any kind for breach of this or any other warranty, expressed or implied,
whatsoever. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation or
exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state.
REPLACEMENT PARTS
32050
To see all replacement and accessory parts available for your DynaTrap, including UV-bulbs, fans,
2 3 retaining cages, and more, visit www.dynatrap.com.
SAVE THESE INSTRUCTIONS
2 UV LAMPS
Dynamic Solutions Worldwide, LLC
ON/OFF
12247 W. Fairview Ave. Milwaukee, WI 53226
SWITCH
1-877-403-TRAP (8727)
customercare@dsw-llc.com
Visit us online at www.dynatrap.com
©2017 Dynamic Solutions Worldwide, LLC
2 FOCOS
GANCHO PARA COLGAR
ULTRAVIOLETA
(OPCIONAL)
® INSECT TRAP WORKS
ENSAMBLAJE DE LA 2 UV LAMPS
COMPUERTA DE AIRE
ON/OFF
SWITCH
TRAVESAÑO
POWERFUL
MUESCAS PARA YET QUIET FAN
ALINEACIÓN (6)
RETAINING
CAGE
Possible cause: Correction:
JAULA DE
No electrical power. 1. Check plug, receptacle, and fuse or circuit breaker.
RETENCIÓN
Shorted fan. 1. UNPLUG UNIT: Examine fan to see that it is free from
foreign material, dirt or build-up of dead insects.
2. Clean unit as in "CLEANING" section.
1. Bulbs not seated 1. Check all sockets for proper bulb seating and alignment.
properly 2. Replace bulbs if needed following instructions under
2. Burnt out bulbs "Replacing Bulb"
1 2
2, 6-Watt UV Replacement Bulbs
LOOP FOR HANGING 2 FOCOS
(OPTIONAL) ULTRAVIOLETA
SWITCH PARA
PRENDER O
APAGAR
This device complies with Performance Standards
for Light-Emitting Products,
21 DFR, Part 1040, Chapter 1, Subchapter J,
Radiological health.
TIO COATED
LOOP FOR HANGING
(OPTIONAL)
TIO COATED
2
SURFACE
AUTOMATIC
DAMPER
CLOSES WHEN
TURNED OFF
PREVENTING
LIVE INSECTS
FROM ESCAPING
3
FOR HOUSEHOLD
USE ONLY
