GASTER 56 N AW

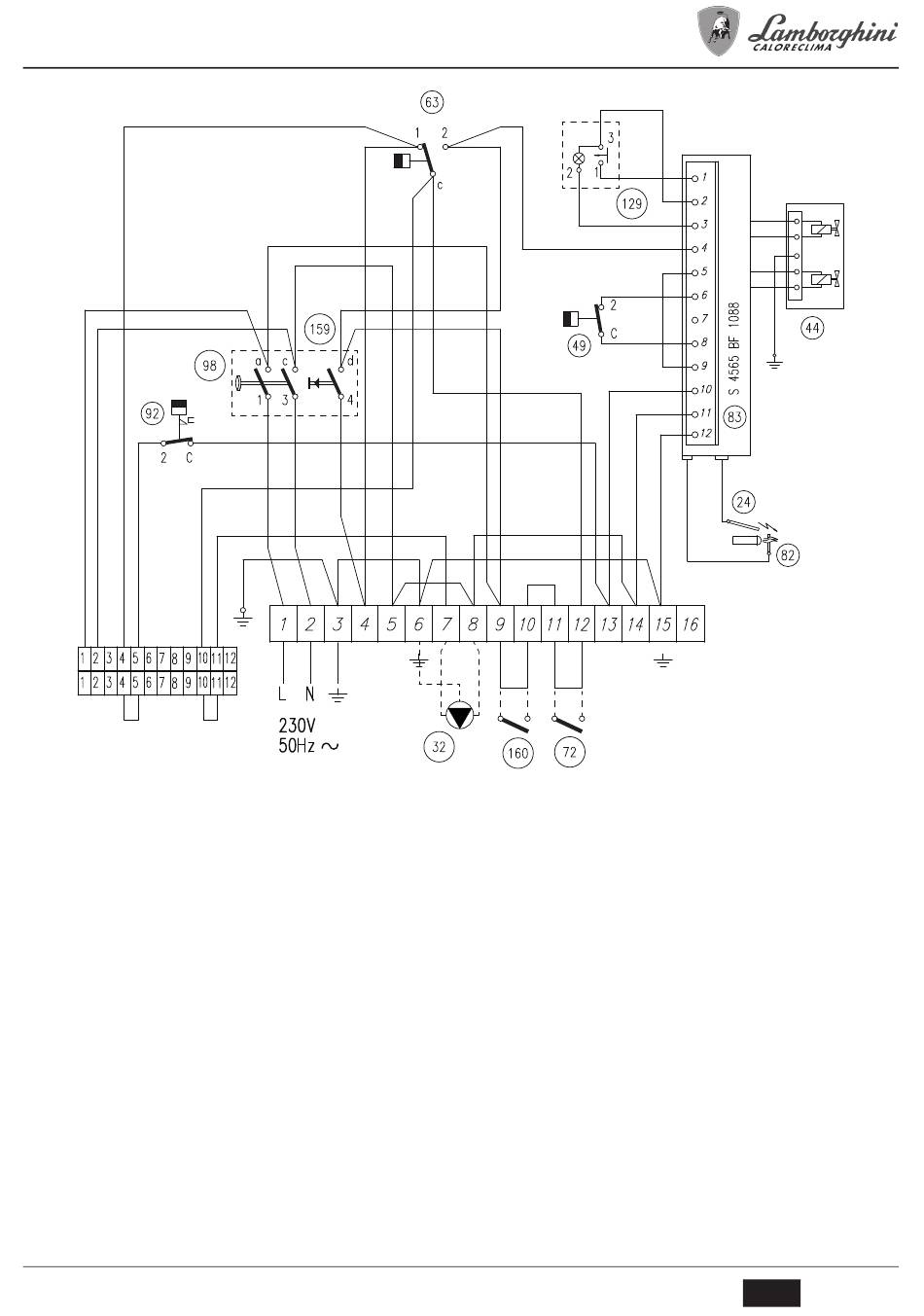

Main wiring diagram
24 Ignition electrode
32 Heating circulating pump
44 Gas valve
49 Safety thermostat
63 Boiler control thermostat
72 Room thermostat (not supplied)
82 Detection electrode
83 Electronic controller
92 Fume thermostat
98 Switch
129 Reset button with indicator lamp
159 Test button
160 Auxiliary contact
Connections in broken lines to be carried out by the installer
A
fig. 15 - Electrical connection diagram
cod. 3541A171 - Rev. 01 - 03/2018
19
EN
