Assembly - Hanging the Fan (continued)
6

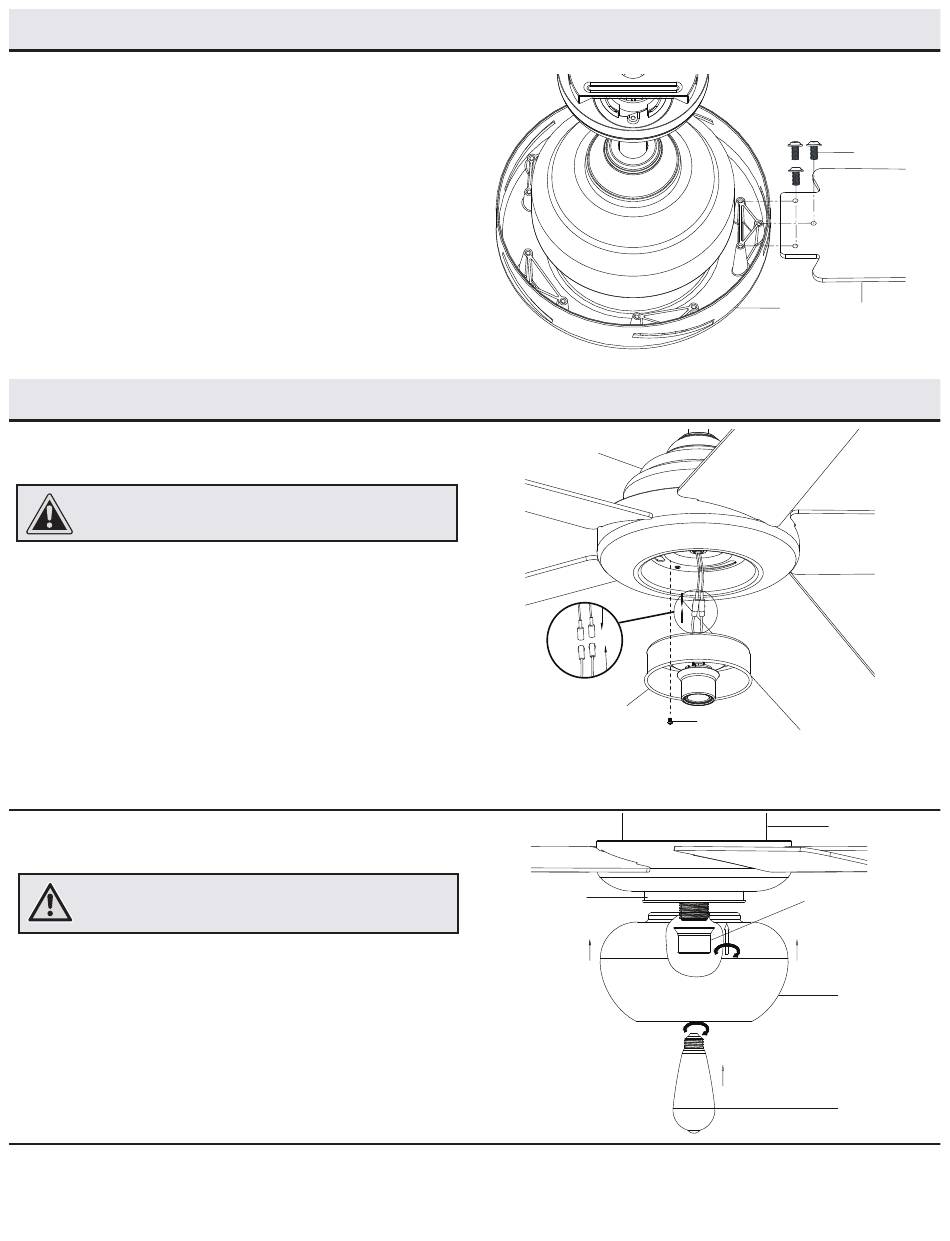

Attaching the fan blades

□
Attach a blade (F) to the fan-motor assembly (E) by
inserting the blade (F) into the slots in the side of the fan
motor housing and aligning the three screw holes in the
blade (F) with the holes in the center flywheel and secure
with screws (AA).
□
Make sure all the screws are firmly tightened.
□
Repeat these steps for the remaining blades.
Assembly - Attaching the Accessories
1
Attaching the light kit fitter assembly
CAUTION: To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing the light kit.
□
Remove one screw (LL) from the black bracket below the fan motor
assembly (E), and loosen, but do not remove the other two screws.
□
Connect the wires from the light kit fitter assembly (G) to the wires
from the fan motor assembly (E) by connecting the molded adaptor
plugs together. Carefully tuck all wires and splices into the switch
cup.
□
Push the light kit fitter assembly (G) up to the fan motor assembly
(E) so that the two loosened screw heads fit into the keyhole slots.
Turn the light kit fitter assembly (G) clockwise to secure.
□
Re-install the screw that was removed in the first step.
□
Make sure all the screws are firmly tightened.
2
Installing the shade
WARNING: Do not overtighten when installing the shade into the
light kit. Allow the shade to cool completely before removing.
□
Screw off the socket cover (JJ) from the socket of the light kit
fitter assembly (G) and save it for later use.
□
Place the glass bowl (I) into the light kit fitter assembly (G)
over the socket, and then screw the socket cover (JJ) into the
socket to secure the glass bowl (I) properly.
□
With power off, install the light bulbs (H) by screwing into the
light bulb socket.
E
G
G
11
Please contact 1-800-986-3460 for further assistance.
AA
E
F
LL
E
JJ
I
H
