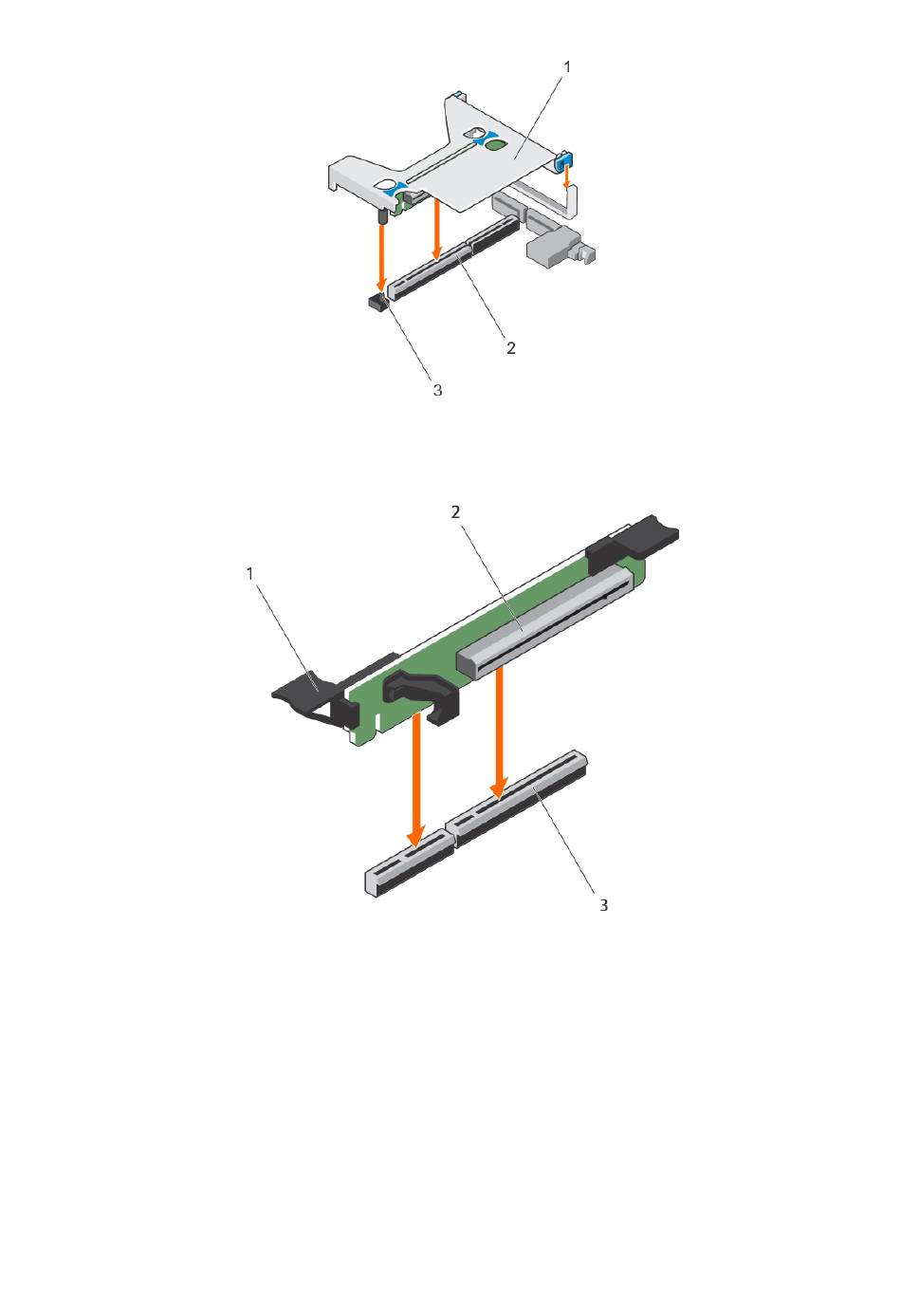

Figure 52. Installing the expansion card riser 1
a. expansion card riser 1
b. connector
c. riser guide pin
Figure 53. Installing the expansion card riser 3
a. expansion card release latch
b. expansion card riser 3
c. connector
1. Follow the procedure listed in the After working inside your system section.
2. Install any device drivers needed for the card as described in the documentation for the card.
Related tasks
Instalación de una tarjeta de expansión
Después de manipular el interior del sistema
Removing expansion card risers
122 Instalación y extracción de los componentes del sistema
on page 120
on page 82
on page 118
