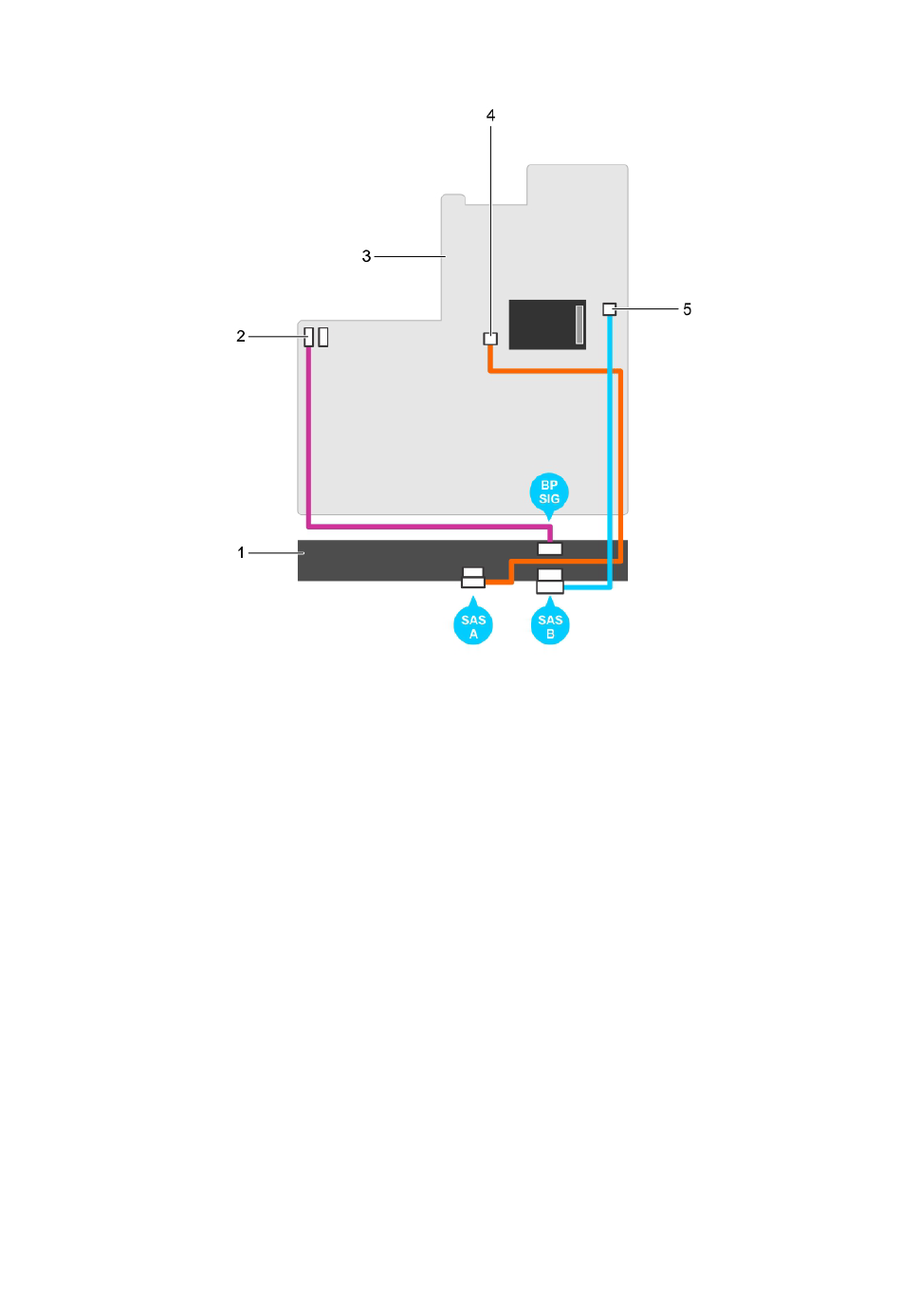

Figure 80. Cabling diagram—2.5-inch (x8) hard drive systems
1. SAS backplane
3. system board
5. SAS B connector on system board
154
Instalación y extracción de los componentes del sistema
2. signal connector on system board
4. SAS A connector on system board
