Prosort Srt Drive Parts List; Lista De Partes De La Unidad Motriz; Del Modelo Srt - HYTROL ProSort SRT Manual De Instalación Y Mantenimiento

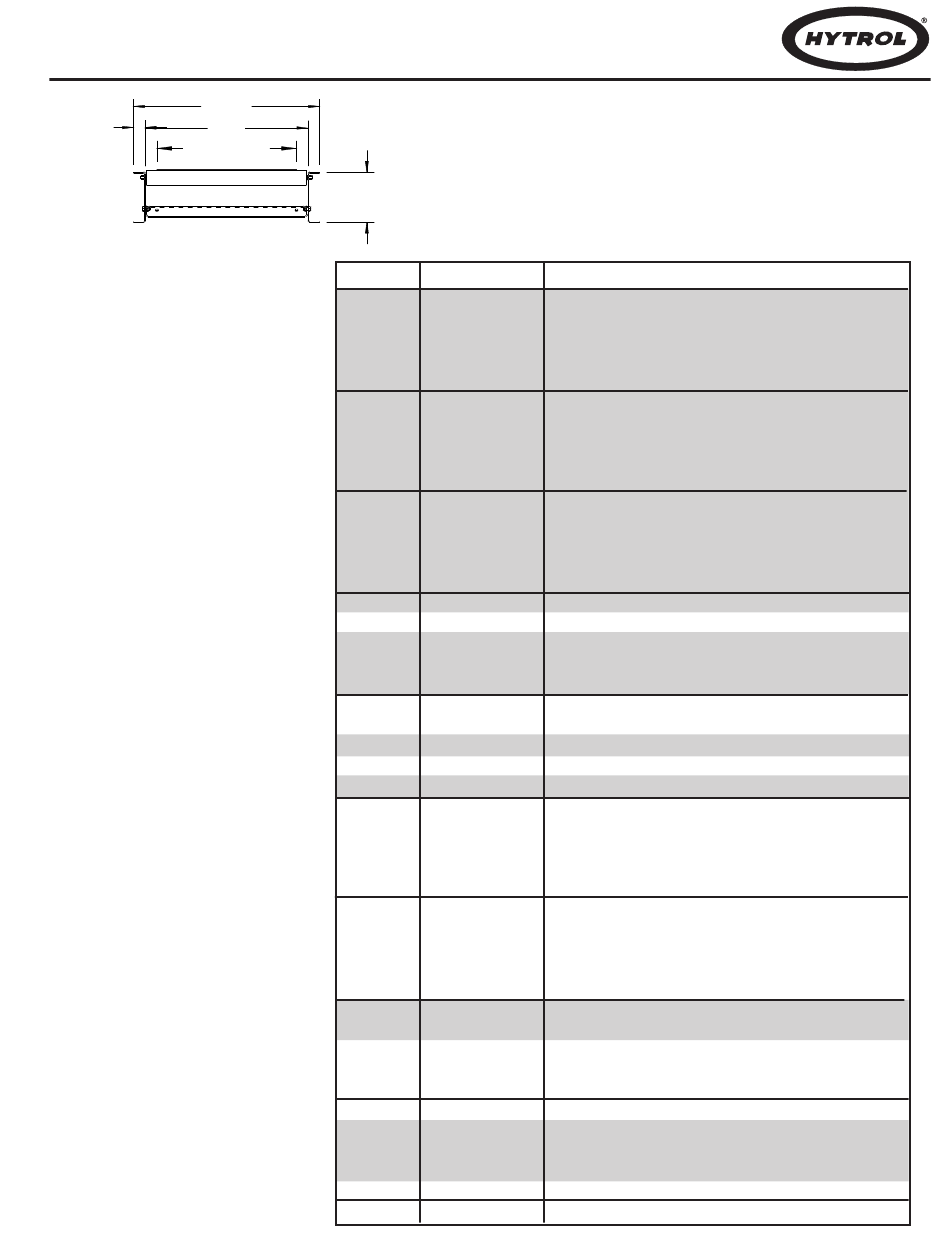

G Model ProSort SRT Drive Parts List
Lista de Partes de la Unidad Motriz del Modelo ProSort SRT
1 1/2"
BELT WIDTH
See Page 19 for Information
on How To Order
Replacement Parts
Vea la Página 20 para
información sobre como
ordenar partes de repuesto
Recommended Spare Parts
Highlighted in Gray
Las Partes de Repuesto
Recomendadas se Resaltan
en Gris
24
OAW
BR
6 1/2"
Ref No.
1
---
---
---
2
---
---
3
---
---
4
---
---
5
---
---
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Part No. Description
--- Motor - C-Face
030.3174 1/2 HP - 230/460 VAC - 3 Ph. - 60 Hz, TEFC
030.7324 1 HP - 230/460 VAC - 3 Ph. - 60 Hz, TEFC
030.7534 2 HP - 230/460 VAC - 3 Ph. - 60 Hz, TEFC
--- Speed Reducer
R-00153-30R 4AC - RH - 30:1 Ratio
R-00164-30R 5AC - RH - 30:1 Ratio
--- Coupling Kit - Motor to Reducer
052.145 (1/2 - 1 HP)
052.146 (1-1/2 - 2 HP)
--- Sprocket - Reducer
028.133 50B14 x 1 in. Bore (4AC)
028.1342 50B16 x 1-1/4 in. Bore (5AC)
--- Sprocket - Drive Pulley
028.13832 50B28 x 1-3/16 in. Bore (4AC)
028.1115 50B32 x 1-3/16 in. Bore (5AC)
090.203 Shaft Key - 1/4 in Sq. x 1 in. Long
029.101 #50 Riveted Roller Chain
029.201 Connector Link - # 50 Roller Chain
SA-014353 8 in. Dia. Drive Pulley (Specify BR)
WA-009358 Motor Base Plate Weldment (Specify BR)
WA-009144 Drive Bed Spacer Weldment (Specify BR)
SA-015899 1.9 in. OD Precision Roller (Specify BR)
PT-037079 Nip Point Guard (Specify BR)
WA-025419 4 in Dia Pulley (Specify BR)
WA-010474 Chain Guard Front Plate Weldment
PT-036979 Top Guard
PT-036969 Chain Guard Mounting Angle
PT-036959 Chain Guard Back Plate
PT-036887-R Drive Support Channel - RH
PT-036887-L Drive Support Channel - LH
PT-035502-R Gusset - RH
PT-035502-L Gusset - LH
PT-033982 Stiffener Bar
PT-032484 Splice Plate
PT-070069 Belt Guide Wearstrip
B-18590-162 Guide Rail - Drive
B-15009 Motor Base Support Angle - RH
B-15008 Motor Base Support Angle - LH
B-05477 Threaded Section Spacer (Specify BR)
098.168 Spacer - .406 in ID x 1 in OD x 1.539 in. Lg
912.0265 O-Ring - 3/16 in. Thick
010.202 4-Bolt Flange Bearing - 1-3/16 in. Bore
010.0021 2-Bolt Flange Bearing - 1 in. Bore
B-16295 Bearing Spacer - 4-Bolt
PT-085857 Bearing Spacer - 2-Bolt
