LXE Rechargeable Lithium Ion Battery Packs
The 156213-0001 and 158224-0001 battery pack components are illustrated below. The 159922-
0001 battery has similar componet locations however the overall shape differs slightly from this
illustration.
E-EQ-MX3MCPLUS-F-ARC

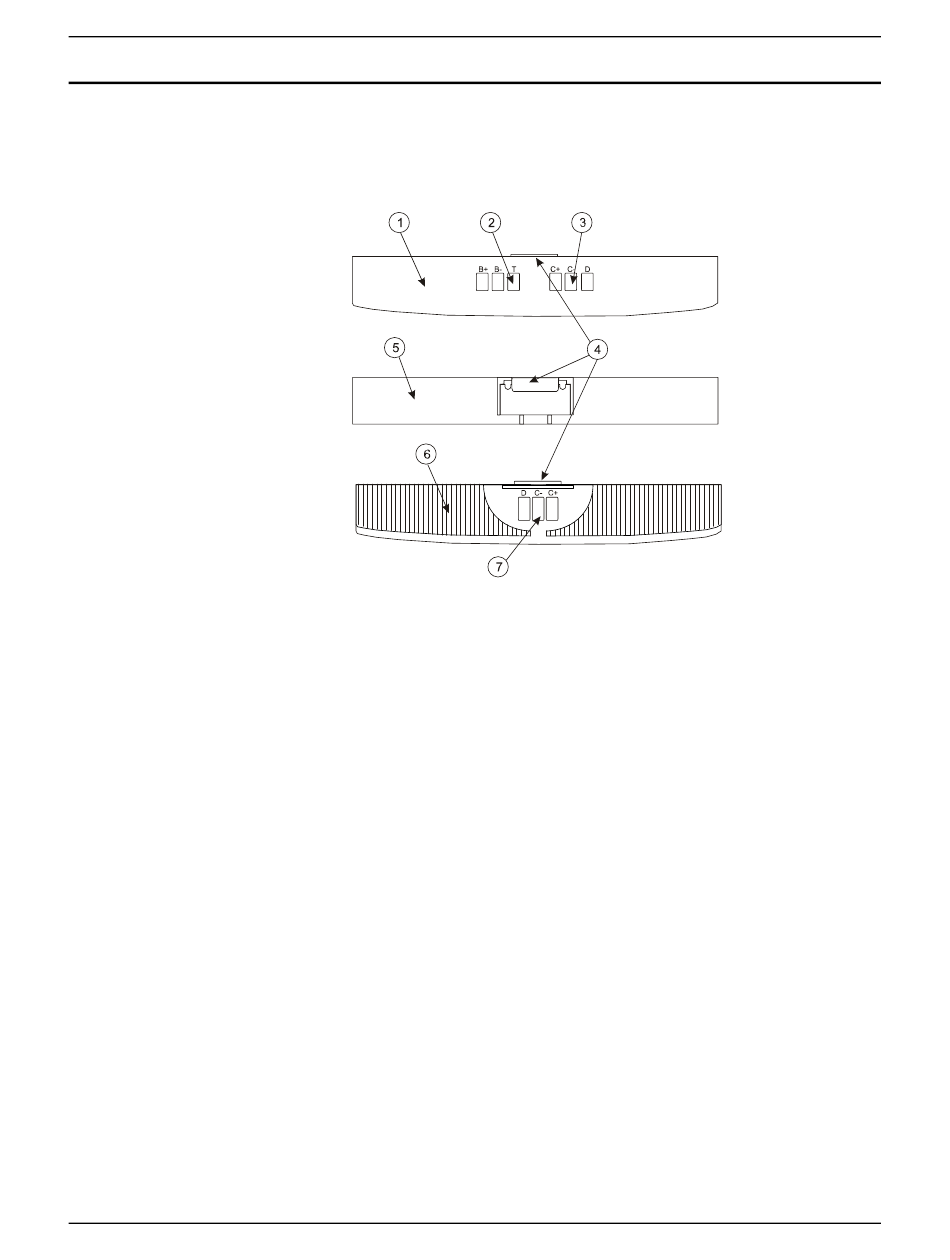

Figure 2 Lithium Ion Battery Pack Components
1. Front Side
2. Contacts, Battery
B+ = Battery (+), B- = Battery (-), T = Thermistor Sense
3. Contacts, Cradle Output
C+ = Cradle Power (+), C- = Cradle Power (-), D = Docked Signal
4. Retaining Clip
5. Top Side
6. Back Side
7. Contacts, Cradle Input
C+ = Cradle Power (+), C- = Cradle Power (-), D = Docked Signal
MX3 Multi-Charger Plus User's Guide
7
