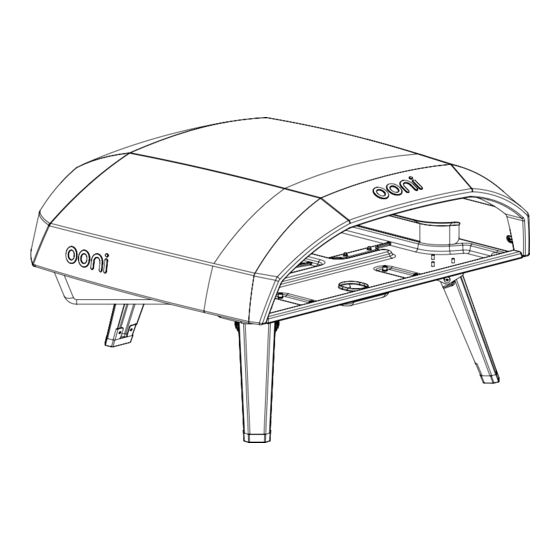

Ooni Koda 16
Natural Gas Conversion
Manual

Publicidad

Tabla de contenido
loading

Manuales relacionados para Ooni Koda 16

Resumen de contenidos para Ooni Koda 16

  • Página 1 Ooni Koda 16 Natural Gas Conversion Manual...
  • Página 2 Hello awesome Ooni Koda 16 owner! It took Finlay, Pip and Kevin at Ooni HQ ages to make this guide to help you get the best results from Ooni Koda 16. We’ve poured in all of our experience of pizza and Ooni ovens, our technical knowledge and a whole lotta love to make sure this guide is as simple to follow as possible.

  • Página 3: Before You Begin

    • Gather the tools required • Remove the stone baking board from Ooni Koda 16 • Collapse Ooni Koda 16’s legs and then gently lay Ooni Koda 16 upside-down on a soft surface to prevent any scratches or damage to the top shell...

  • Página 4: What's In The Box

    What’s in the box Hose Quick connector Natural gas nozzles Natural gas collar Hex wrench Conversion screwdriver...
  • Página 5 Remove the baking stone from the oven. You will need: 19mm (¾”) wrench Collapse Ooni Koda 16’s legs and then gently lay Ooni Koda 16 upside-down on a soft surface to prevent any damage Using a 19mm (¾”) wrench, turn counter-...

  • Página 6: Removing The Control Panel

    Using a Phillips screwdriver, unscrew the fixing collar screws counter-clockwise. Set the screws aside for reassembly. Remove the collar. Set aside the collar as you will need it if you convert your Ooni Koda 16 back to propane.
  • Página 7 Removing the Control Box You will need: Using a Phillips head screwdriver, remove Phillips head screwdriver the black control box screws (11x 6mm ‘ ’ & 1x 10mm ‘ ’). Set the screws aside for reassembly. Gently lift o the black control box and set to one side.
  • Página 8 Changing from propane to natural gas Unscrew and disconnect the two nozzle You will need: 12mm (½”) wrench housings that are connected to the ejector tubes counter-clockwise using a 12mm (½”) wrench or with your hands.
  • Página 9 Changing from propane to natural gas You will need: Using the hex wrench, carefully unscrew Supplied hex wrench the tip of the propane nozzle counter- clockwise. Repeat for second nozzle. Do not force the nozzles as you might strip the threads and damage the oven Set aside 2x nozzles that were removed for future use with propane.
  • Página 10 Changing from propane to natural gas You will need: Hand tighten the Natural Gas nozzle back Supplied hex wrench into the housing clockwise. Supplied Natural Gas nozzles Give a quarter turn clockwise with the hex wrench to secure. Do not over-tighten. natural gas propane...
  • Página 11 Changing from propane to natural gas Hand tighten the nozzle housing back You will need: 12mm (½”) wrench into the injector tube clockwise. Give a quarter turn with the 12mm (½”) wrench to secure.
  • Página 12 Adjusting gas flow at control dial You will need: Return to the Gas Control fitting. Supplied screwdriver Use the included screwdriver to rotate the Valve adjuster counter-clockwise 20 full rotations.
  • Página 13 Reassembling control box You will need: Gently place the black control box in Phillips head screwdriver position, carefully ensuring that the gas terminal and stem valve are both accessible. Align the bolt holes with the oven body. Using a Phillips head screwdriver, screw in 12 (11x 6mm ‘...
  • Página 14 Adding natural gas collar and control dial You will need: Place the new Natural Gas collar back in Phillips head screwdriver to position. Make sure that it is aligned Supplied natural gas collar with the Control Dial. Screw in both fixing dial screws fully until secure.

  • Página 15: Attaching The Hose

    Attaching the hose You will need: Attach side B of your natural gas hose to 19mm (¾”) wrench the gas terminal. Hand tighten clockwise. Supplied natural gas hose Use a 19mm ¾ wrench to give a quarter ”) turn clockwise to fully tighten and secure.
  • Página 16 Attaching to natural gas supply You will need: Open Ooni Koda 16’s legs and turn Ooni Supplied quick connector Koda 16 onto its feet. Reinsert the baking stone. Connect side A of the natural gas hose into the side A of the quick connector.

  • Página 17: Leak Testing

    Test for gas leaks before firing up for the first time. Leak testing Turn Ooni Koda 16 gas control dial to the OFF position Secure hose at gas terminal on Ooni Koda 16 Open gas source. If you hear a rushing sound, turn off the gas supply immediately.
  • Página 18 ¡Hola feliz propietario de un Ooni Koda 16! Si percibes un olor a gas: • Cierra el suministro de gas Aquí, en la sede de Ooni, Finlay, Pip y Kevin • Apaga cualquier llama abierta dedicaron un montón de tiempo para elaborar •...
  • Página 19 Destornillador de estrella Aparta el collarín y consérvalo ya que lo necesitarás Página 9 si quieres volver a convertir tu Ooni Koda 16 a Desatornilla y desconecta las carcasas de las 2 propano. boquillas conectadas a los tubos eyectores, girando en sentido contrario a las agujas del reloj con una Página 5...
  • Página 20 Asegúrate de que esté alineado con el Prueba de detección de fugas botón de control. Gira el botón de control de gas del Ooni Koda 16 a Aprieta completamente los dos tornillos de sujeción la posición OFF. Conecta la manguera a la entrada del botón, hasta que estén asegurados.
  • Página 21 C. Pistolets à gaz naturel Koda 16 D. Collier pour gaz naturel • Pliez les pattes du Ooni Koda 16, puis déposez doucement le Ooni Koda 16 à l’envers sur une E. Clé hexagonale surface douce pour éviter les égratignures ou les F.
  • Página 22 Retirez le collier clé hexagonale fournie Mettez le collier de côté, car vous en aurez besoin si pistolet de gaz naturel fourni vous reconvertissez votre Ooni Koda 16 au propane. gaz naturel Vous aurez besoin de : propane tournevis cruciforme...
  • Página 23 Ajoutez le collier de gaz naturel et le sélecteur Test de fuite rotatif Tournez le sélecteur rotatif du gaz Ooni Koda 16 à la Remettez le nouveau collier de gaz naturel en position OFF. Fixez le tuyau à la borne de gaz sur le place.
  • Página 24 © 2020 Ooni Ooni is a registered trademark of v1.0 Ooni Limited. All rights reserved...
