4) RATE
Select the baud rate for the connected PTZ camera (2400 / 4800 / 9600 / 19200 / 57600 / 115200).
Make sure the baud rate setting of the camera is the same as the setting here, or the DVR will not be able to
control the device.
Note: To know the default baud rate of the PTZ camera, please refer to its user manual.

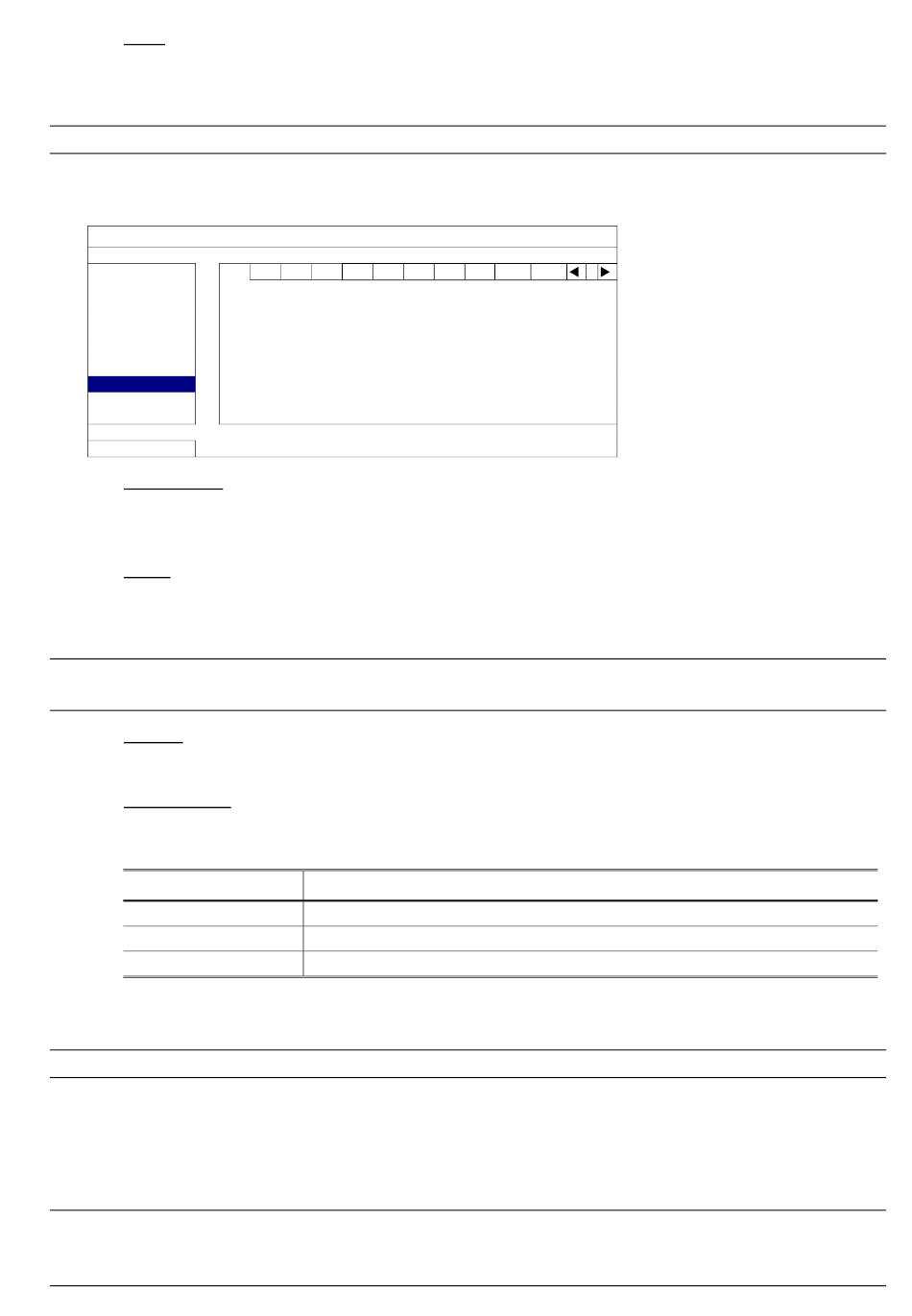

5.5.9 DCCS

CANERA CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11
DETECTION
ALERT
NETWORK
DISPLAY
RECORD
DEVICES
DCCS

IVS

NOTIFY
EXIT
1) DIAGNOSTIC
Click "START" to start examining the DCCS signal transmission between the DVR and the camera. The
result will display in "CONNECTION".
2) MENU
Click "SETUP" to configure the connected zoom lens control camera.
Different zoom lens control cameras might have different parameter settings. For details, please refer to their
own user manuals.
Note: While configuring the camera parameters, the DVR will switch to the corresponding channel, and
you can simultaneously preview the effects for the settings.
3) DEVICE
Here shows the model number of the camera.
4) CONNECTION
Here shows the examining result for DCCS signal transmission between the DVR and camera. The
message is as follows:
MESSAGE SHOWN
CHECKING
OK
FAIL
5.5.10 IVS
Note: Before using the IVS function, make sure the event record function is enabled on your DVR.
IVS, Intelligent Video Surveillance, is the advanced application for motion detection, but more precise and smarter.
It can be applied to different situations with one of the following three modes: FLOW COUNTING, VIRTUAL
FENCE, and ONE WAY.
When anyone crosses the detection line (virtual fence), the recording will be on.
Note: Four camera channels are supported for this function. For AVC748BD and 746BD, users are
allowed to select four camera channels randomly to use this function; for AVC744BD, 744B,
744CD & 744C, all the four camera channels are supported.
ADVANCED CONFIG
DIAGNOSTIC
MENU
DEVICE
CONNECTION
MEANING
The DVR is checking the DCCS signal transmission between the DVR and camera.
The signal transmission is fine and the DCCS function works properly.
The signal transmission is too weak or not available for the DCCS function to work properly.
START
SETUP
AVK523
OK
31
