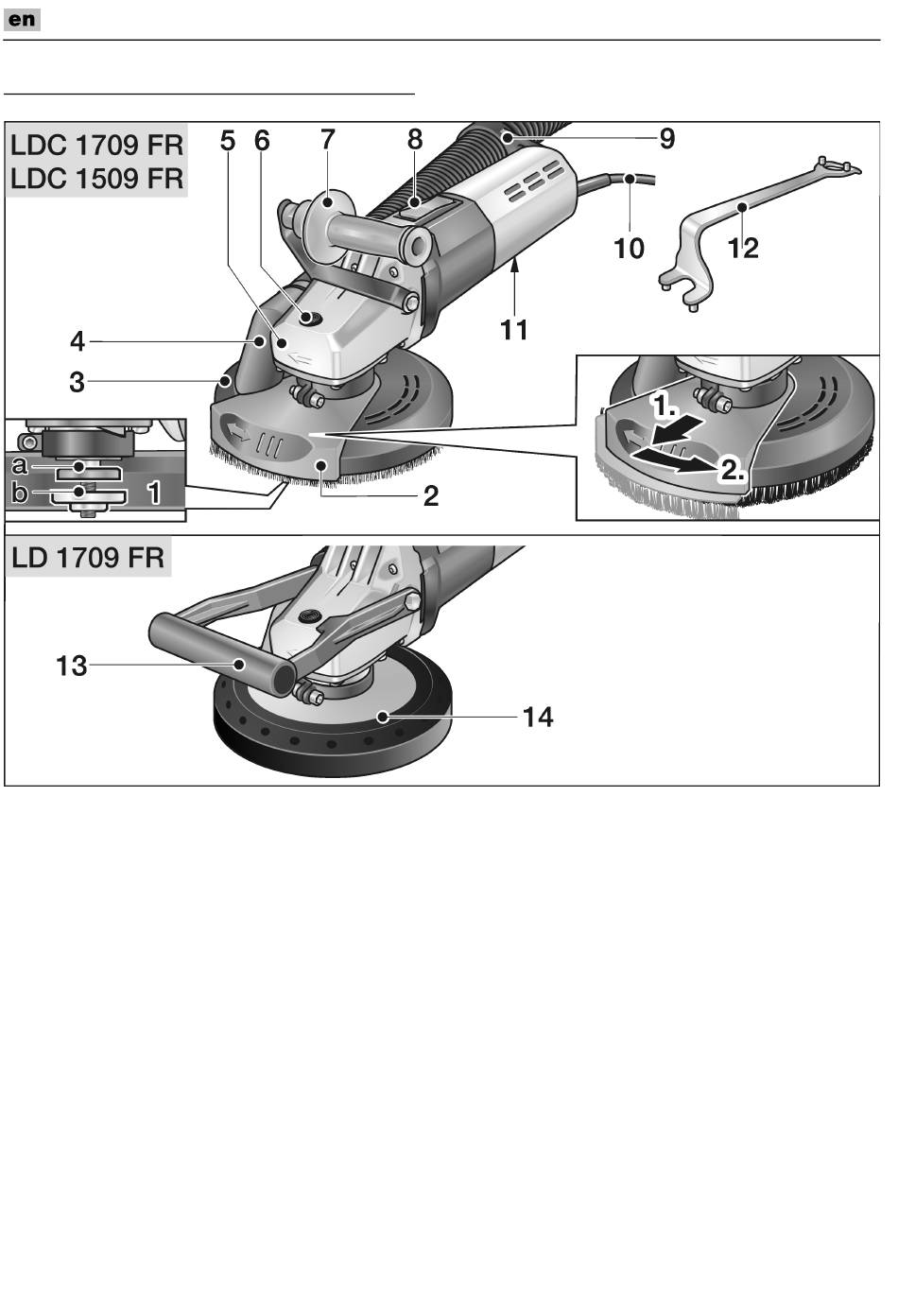

Overview

1 Spindle with threaded flange
a Clamping flange
b Clamping nut
2 Pivoted edge segment
3 Guard hood with brush ring
4 Connection for extractor
5 Gear head
With air outlet and direction-of-rotation
arrow.
6 Spindle lock
Secures the spindle when the tool
is changed.
18
LDC 1709 FR/LD 1709 FR/LDC 1509 FR
7 Auxiliary handle with grip
8 Switch rocker
Switches the power tool on and off.
With notched position for continuous
operation.
9 Hose support
10 4.0 m power cord with mains plug
11 Rating plate
12 Stop key
13 Bail handle
14 Guard with rubber extraction ring
