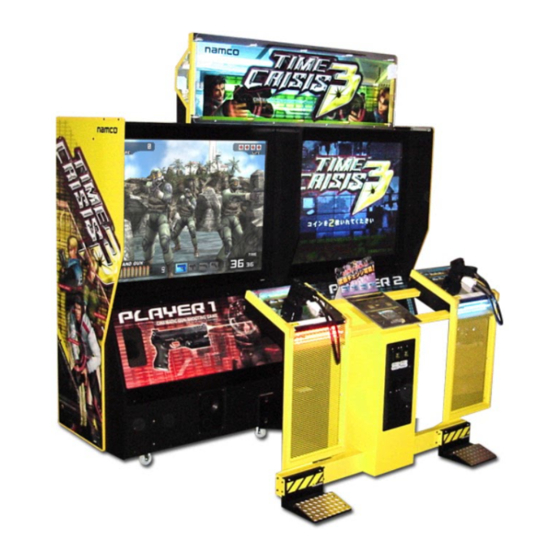

TIME CRISIS III
DX
OPERATORS MANUAL
I
T IS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY
,
AT ALL TIMES
AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS MANUAL
ARE FOLLOWED PRECISELY
Issue 1
Part No. 90500146
Publicidad
Manuales relacionados para NAMCO TIME CRISIS III DX
Resumen de contenidos para NAMCO TIME CRISIS III DX
- Página 1 TIME CRISIS III OPERATORS MANUAL T IS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY AT ALL TIMES AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS MANUAL ARE FOLLOWED PRECISELY Issue 1 Part No. 90500146...
- Página 3 is a copyrighted anti-copying technology created by Sony Corp. This mark does not necessarily imply compatibility with other products bearing the “MAGICGATE” trademark. is a trademark of Sony Corporation. The CD-ROM supplied with the machine must not be copied, modified, publicly distributed, or used for purposes other than operation of the machine.
- Página 4 Contents ΕΞΕΤΑΣΗ ΓΕΝΙΚΗΣ ΑΣΦΑΛΕΙΑΣ ......................16 CONSIDERAZIONI GENERALI SULL...
- Página 7 In order to avoid damage to the equipment due to mis-operation, ensure that the voltage of the mains supply is 230volts AC. Note: If the location of this equipment has a polished floor, it is recommended that rubber pads are fitted under the level adjusters to prevent the equipment sliding on the floor when in use.
- Página 9 Zur Vermeidung von Beschädigungen durch Fehlbetrieb am Gerät sicherstellen, daß die Netzspannung 230 Volt beträgt. Hinweis: Ist das Gerät für einen Aufstellplatz mit glattem Fußboden bestimmt, müssen die Standbeine mit Gummiplättchen unterlegt werden, damit das Gerät fest steht und nicht auf dem Boden hin- und herrutscht.
-
Página 16: Ο∆Ηγιεσ Ασφαλειασ
Αυτ το µηχάνηµα είναι για χρήση µ νο σε εσωτερικ χώρο και θα πρέπει να χρησιµοποιείται µ νο για τους λ γους για τους οποίους κατασκευάστηκε. Η εταιρεία NAMCO Ltd δεν φέρει καµία ευθύνη για ατυχήµατα , πληγές ή καταστροφές που µπορεί να προκληθούν απ αλλαγές χωρίς άδεια σε ή εισαγωγείς αυτού του µηχανήµατος. - Página 17 ∆εν πρέπει να γίνονται µετατροπές στα µηχανήµατα ωρίς έγκριση . Μπορεί να προκληθεί απρ βλεπτος κίνδυνος. Μ νο µέρη που διευκρινίζονται απ την εταιρεία NAMCO EUROPE Ltd µπορούν να χρησιµοποιηθούν για αντικατάσταση ή επιδι ρθωση. (συµπεριλαµβάνοντε και οι βίδες) Να είναι σίγουρα κλειστ το ρεύµα πριν οποιαδήποτε δουλειά στο µηχάνηµα.
- Página 30 1. SPECIFICATIONS...
-
Página 31: Main Components
2. MAIN COMPONENTS... - Página 32 3. HOW TO PLAY...
- Página 33 4. INSTALLATION...
- Página 34 ΤΟ ΜΗΧΑΝΗΜΑ ΕΙΝΑΙ ΣΧΕ∆ΙΑΣΜΕΝΟ ΓΙΑ ΧΡΗΣΗ ΣΕ ΕΣΩΤΕΡΙΚΟ ΧΩΡΟ ΜΟΝΟ ΜΗΝ ΤΟΠΟΘΕΤΗΣΕΤΕ ΤΟ ΜΗΧΑΝΗΜΑ ΣΤΟΥΣ ΑΚΟΛΟΥΘΟΥΣ ΧΩΡΟΥΣ Εξωτερικά Απευθείας στον ήλιο,σε µέρη που υπάρχει υγρασία ή σκ νη,µέρη που υπάρχει άφθονο νερ ,κοντά σε air-condition ή άλλου είδους θέρµανση,µέρη µε υπερβολική υψηλή...
- Página 37 Monitor Cabinet Assy Flat Washer Wing Nut (M8) Hex head screw (M8x40) Flat Washer Monitor Cabinet Monitor Cabinet Assy approx. 5mm Socket Cap Screw (M8x40)
- Página 38 Security screw (M5x12) Joint Box Cover Connectors Socket head screw (M8x40) Joint Box Assy Gun Tower Assy side Monitor Cabinet side IEEE 1394...
- Página 39 Header Assy Retaining Bracket Monitor L Assy (front) Washer (M5x16x1) Security screw (M5x25) Monitor R Assy (front) Security screw (M5x12) Connector Cover Connector...
- Página 40 Joint Box Assy Socket cap screw (M8x16) Coin Tower Assy Connectors Security screw (M5x12) Joint Box Cover Coin Assy side Monitor side IEEE1394 Joint Box Assy Coin Tower Assy...
- Página 41 Castor Lock Nut Approx. 5mm Level adjuster Note: If the site of this game has a smooth or polished floor, it is recommended that rubber pads are fitted under the Level Adjusters to prevent the game sliding on the floor when in use.
- Página 42 Pedal Assy Security screw (M5x12) Joint Bracket Connector Security screw Gun Tower Assy (M5x12) Security screw (M5x12) Pedal Assy...
- Página 43 Note: The tray will automatically retract after approx 10 seconds. PCB Assy DVD-ROM Drive Indicator Lamp Eject Button PCB Assy DVD-ROM Tray...
- Página 44 5. ADJUSTMENTS Μετατροπές ή επιδιορθώσεις στα µηχανήµατα πρέπει να γίνονται µ νο απ εξουσιοδοτηµένα άτοµα.
- Página 45 COIN COUNTER 2 Amp Q/B (Coin Fuse) PLAYER 2 PLAYER 1 SELECT SELECT DOWN DOWN ENTER ENTER SERVICE SERVICE TEST TEST...
- Página 46 The Test Switch must always be in the “OFF” position for normal game mode. MENU COIN OPTIONS Used to set the price of play GAME OPTIONS Used to set the game options I/O TEST Used for testing guns, switches, lamps MONITOR TEST Used for setting the monitor SOUND TEST...
- Página 47 Note:- The price of play on this machine is set within the Cashflow Coin Mech. Ensure that the Game Cost is set to 1 Coin 1 Credit. COIN OPTIONS [DEFAULT IN GREEN] GAME COST 1 COIN [S] 1 CREDIT CONTINUE COST 1 COIN [S] 1 CREDIT FREE PLAY EXIT...
- Página 48 GAME OPTIONS [DEFAULT IN GREEN] LINK OFF : ON LINK AS (LEFT) PLAYERS LIFE DIFFICULTY C (MEDIUM) HIT COLOUR HI-SCORE INIT EXIT SELECT SW : CHOOSE ENTER SW : ENTER Note: If the (c) DIFFICULTY level settings for the Player 1 and Player 2 units do not match, the game will not operate correctly.
- Página 49 I/O TEST : 1234 [ON:RED] LINK : ON 2 LINK AS (LEFT) I/O PCB CHECK (see 5-2-3-1) GUN INITIALIZE (see 5-2-3-2) SWITCH TEST (see 5-2-3-3) (see 5-2-3-4) SOLENOID TEST EXIT SELECT SW : CHOOSE ENTER SW : ENTER ) t f...
- Página 50 : ON 2 LINK AS (LEFT) I/O PCB CHECK : Connect OK namco ltd. : TSS-I/O; ver2.11; GUN EXTENSION EXIT SELECT SW : CHOOSE ENTER SW : ENTER This screen displays the condition of the LINK system and the type and version of the I/O PCB.
- Página 51 AIM AT CENTRE OF THE CROSS AND PULL GUN TRIGGER Line of Sight...
- Página 52 I/O TEST : 1234 [ON:RED] LINK : ON 2 LINK AS (LEFT) SWITCH TEST I/O PCB CHECK SERVICE TEST UP SELECT DOWN SELECT ENTER GUN TRIGGER FOOT PEDAL SELECT SW : CHOOSE ENTER SW : ENTER The counter will increase each time a credit signal is sent to the game PCB. (b-h) The display will change from OFF to ON each time the corresponding switch is operated.
- Página 53 I/O TEST : 1234 [ON:RED] LINK : ON 2 LINK AS (LEFT) SOLENOID TEST PULL GUN TRIGGER TO ACTION EXIT SELECT SW : CHOOSE ENTER SW : ENTER...
-
Página 54: Monitor Test
MONITOR TEST GRADATION PATTERN CROSSHATCH PATTERN VIEW ANGLE ADJUST FULL WHITE EXIT SELECT SW:CHOOSE ENTER SW:ENTER Displays graduated colour bars for adjusting brightness and contrast. Displays a cross-hatch pattern for adjusting monitor geometry Displays screen frame for adjusting picture size and position. Displays a full white screen for adjusting monitor colour. - Página 55 SOUND TEST [DEFAULT IN GREEN] VOLUME GAME (0~15) ATTRACT (0~15) OUTPUT LEVEL LEFT 100% RIGHT 100% REQUEST SONG NO. 000 MESSAGE EXIT SELECT SW:CHOOSE ENTER SW:ENTER SERVICE SW:REQUEST ON/OFF...
- Página 56 OTHERS [DEFAULT IN GREEN] ROM1 Ver. 07/07/2001 SAT 21 : 15 : 59 ROM2 Ver. 06/20/2001 WED 21 : 15 : 59 CLOCK 08/31/2001 FRI 23 : 11 : 12 000000-123456 LANGUAGE CABINET LINKED CDVD CHECK BACKUP MEMORY INITIALIZE EXIT SELECT SW:CHOOSE ENTER SW:ENTER If the software versions for the left and right PCBs do not match, the...
- Página 57 6. MAINTENANCE Μετατροπές ή επιδιορθώσεις στα µηχανήµατα πρέπει να γίνονται µ νο απ εξουσιοδοτηµένα άτοµα. Να είναι σίγουρα κλειστ το ρεύµα πριν οποιαδήποτε δουλειά στο µηχάνηµα.
- Página 59 urity screw (M5x12) Switch plate When replacing the switch, ensure that the wires are fitted to the correct terminals. P ozi head screw (M3x16) Microswitch Microswitch pedal released Foot plate Whizz nut Plunger Pedal pressed...
- Página 60 urity screw (M5x12) Switch plate Note: The plunger is spring loaded. Keep the plunger pressed in when removing the assy and release the plunger slowly. Microswitch Holder Plunger Whizz nut (M4) Whizz nut (M4) Plate Grease Here...
- Página 61 Holder Plunger...
- Página 62 Security screw (M5x12) Play panel Connector Security screw (M5x12)
- Página 63 Play panel Connector Whizz nut (M6) Note: When replacing the gun assembly ensure that the earth wires are located on the studs before fitting and tightening the whizz nuts.
- Página 64 Nut (M4) Socket cap screw (M3x10) Gun slide L Button head screw (M4x25) Socket cap screw (M3x10) Gun slide R...
- Página 65 Nut (M4) Button head screw (M4x20) Lens Gun side (L) Gun PCB Button head screw Gun side R (M4x10) Button head screws Socket cap scre (M4x10) (M3x10) Ensure that the flat face of the lens is facing to the back of the gun). Ensure that the flat face of the lens is towards the back of the gun...
- Página 66 Flange screw Spring Plunger (M4x6) Socket cap screw (M 3x10) Solenoid Connector Gun cover L Nut (16mm) Earth wire Solenoid bracket Flange screw Slide guide (M3x8) Toothed washer Spacers Slide guide Solenoid Harness outlet (it must Solenoid bracket face downwards) Plunger E-type snap rings Note:...
- Página 67 Microswitch Fast-On terminals...
- Página 68 Earth wire Fast-On terminals (microswitch) Pozi head screw (M3x8) Security screw (M4x10) Button head screw PCB connectors Connector Cover (M4x10) Gun Cover L Flexible Conduit Connector...
- Página 69 Front Grille Security screw (M5x12) Security screw (M5x12) Security screw (M5x12)
- Página 70 Hex head screw (M5x20) Hex head screw (M5x20) Rear Cover Connector Neon PCB...
- Página 71 Note: Always grip the tube by the end caps, not the glass tube. Neon Tube...
- Página 72 Security screw (M5x12) Header Acrylic Starter Fluorescent Tube (40w) Note: The fluorescent tube is fitted with a blue filter. Remove the filter and fit to the new fluorescent tube before refitting the tube to the Header Assy.
- Página 74 7. PARTS...
- Página 75 i f i t µ i f i l...
- Página 77 s t i e l l ½ "...
- Página 78 a l i...
- Página 79 ) t f t s l t s l t s l v i t y t i " 2 " 2 " 2...
- Página 81 d i l d i l d i l d i l d i l l i a p i l d i l d i l d i l d i l d i l c t i e l i...
- Página 82 c t i...
- Página 84 d i l c t i c t i c t i...
- Página 85 c i l t l i...
- Página 86 t l i c t i c t i c t i...
- Página 87 8. SCHEMATIC 8.1 PROJECTOR CABINET pBASS AMP PCB Assy (L) SPF (L) SOUND AMP MINI 6w L IN White/Purple SP_OUT1+ Purple SP_OUT1- SOUND L White/Blue SP_OUT2+ SOUND Blue CABINET SP_OUT2- R IN Grey/Green SPEAKERS SP_OUT3+ SOUND R Green SP_OUT3- AMP MINI 2w +12v pBASS AMP PCB Assy (R) SPF (R)
- Página 88 8.2 COIN / GUN CABINET SOLENOID ASSY YELLOW YELLOW 12v 2.2w PLAYER 2 WHITE/RED WHITE/RED GUN PCB SSIN1 SSIN1 WHITE/ORANGE WHITE/ORANGE SOL1 SOL1 ASSY WHITE/BLEU WHITE/BLUE TRG1 TRG1 BLACK BLACK YELLOW/BLACK SENSE GUN ASSY BLACK GREEN VGND YELLOW/BRUN SYNC DISPENSE SWITCH VIOLET VIOLET STEP IN...
- Página 89 Copies of Namco Game Manuals can be downloaded from our website: www.namco.co.uk under Components Distribution For all Parts or Technical Support contact: Brent Electronic, Namco House, Units 7-8, Acton Park Estate, The Vale, London. W3 7QE www.brentelectronic.co.uk For Technical Support, Warranty and...
