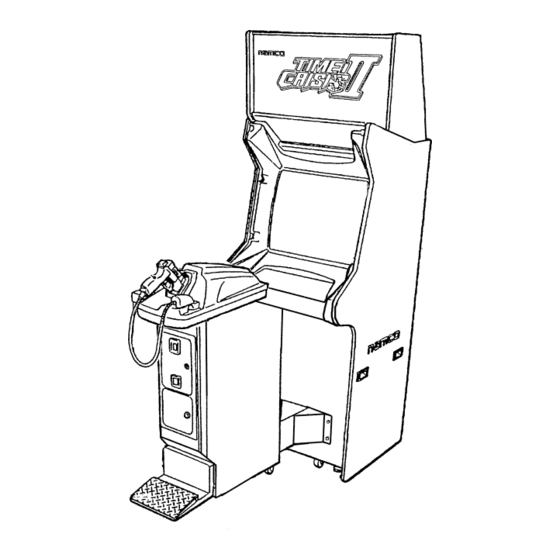

TIME CRISIS 2
SINGLE PLAYER
Operators Manual
I
T IS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY
,
AT ALL TIMES
AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS MANUAL
.
ARE FOLLOWED PRECISELY
Part No. 90500057

Publicidad

Tabla de contenido
loading

Manuales relacionados para NAMCO TIME CRISIS 2

Resumen de contenidos para NAMCO TIME CRISIS 2

  • Página 1 TIME CRISIS 2 SINGLE PLAYER Operators Manual T IS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY AT ALL TIMES AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS MANUAL ARE FOLLOWED PRECISELY Part No. 90500057...

  • Página 3: Portable Appliance Testing

    P O R T A B L E A P P L I A N C E T E S T I N G Please Note: During testing of the machine with a portable appliance tester the insulation test will show a failure due to the fitting of two VDRs between Live/Earth and Neutral/Earth.

  • Página 4: General Safety Considerations

    This machine is for indoor use only and should only be used for the purpose intended. Namco Ltd. bears no responsibility for accidents, injury or damage resulting from unauthorized changes to, or improper use of this machine.

  • Página 5: Moving The Machine

    Do not make any alteration to this machine without prior approval. Doing so could cause unforeseeable danger. Only parts specified by Namco Europe Ltd should be used when replacing or repairing parts. (Including screws). Ensure that the power to the machine is turned OFF before commencing any maintenance work. (Trouble shooting, repairs etc.)

  • Página 6: Allgemeine Sicherheitshinweise

    (Suchsysteme), die Weitergabe oder sonstiges Kopieren für den gewerblichen und privaten Gebrauch sind untersagt und bedürfen der vorherigen Genehmigung durch NAMCO EUROPE LIMITED. Die informationen in diesem Handbuch entsprechen den Tatsachen bei Drucklegung. NAMCO EUROPE LIMITED behält sich jedoch das Recht zu Änderungen ohne vorherige Bekanntgabe vor.
  • Página 7 Es dürfen keierlei Veränderungen ohne vorherige Genehmigung am Gerät vorgenommen werden. Zuwiderhandlungen stellen eine Gefahrenquelle dar. Für die Repartur dürfen nur Originalersatzteile (incl. Schrauben) von NAMCO EUROPE LTD. verwendet werden. Vor Beginn aller Wartungsarbeiten (Fehlersuche, Reparaturen etc.) muß der Netzstecker gezogen werden.

  • Página 8: Generelle Sikkerhedsovervejelser

    Denne rnaskine er kun til indendørs brug og bør kun bruges til det beregnede formål. Namco Ltd. bærer intet ansvar for ulykker eller skader som er et resultat af uautoriserede ændringer eller fejlagtig brug af denne rnaskine.
  • Página 9 Justeringer eller vedligehold af denne maskine bør kun udføres af kvalificeret personale. Skift ikke noget på maskinen uden godkendelse, det kan føre til uforudset fare. Der bør kun bruges dele specificeret af Namco Europe Limited når der skiftes eller repareres dele (inklusiv skruer).

  • Página 10: Consideraciones Generales De Seguridad

    Esta máquina es únicamente para ser usada en interiores, y sólo debe usarse para aquello para lo que ha sido creada. Namco Ltd. queda exenta de cualquier responsabilidad por accidentes, heridas o daños causados por cambios no autorizados o uso indebido de esta máquina.
  • Página 11 No realice alteraciones en esta máquina sin aprobación previa. De hacerlo así, pueden causar peligros imprevisibles. Sólo deben usarse las partes especificadas por Namco Europe Ltd. para reparaciones o reemplazos (incluidos los tornillos). Asegúrese de que la máquina está desconectada antes de comenzar cualquier trabajo de mantenimiento (reparaciones, resolución de problemas, etc.)

  • Página 12: Consignes Generales De Securite

    Malgré le fait que les informations contenues dans ce manuel soient données de bonne foi et étaient actualisées au moment de leur impression, NAMCO EUROPE LIMITED se réserve le droit de procéder à des changements ou à des modifications sans avis préliminaire.
  • Página 13 Ne pas apporter de modifications sur cette machine sans autorisation préalable, faute de quoi cela pourrait entraîner un danger. Seules les pièces détachées Namco Europe Ltd. doivent être utilsées pour le remplacement ou la réparation de pièces (y compris les vis) S’assurer que l’interrupteur soit sor OFF avant de commencer tout travail de maintenance (localisation...

  • Página 16: Considerazioni Generali Sulla Sicurezza

    Quest macchina deve essere usata solo in interni e deve essere usata solo per gli scopi per cui è progettata. Namco Europe Ltd non si assume responsabilità per incidenti, ferite o damni risultanti da cambiamenti non autorizzati o da uso improprio della macchina.
  • Página 17 Quando si rimpiazza o si riparano delle parti (incluse le viti) si possono usare solo parti approvate dalla Namco Europe Ltd. Assicurarsi che la macchina sia SPENTA prima di incominciare qualsiasi lavoro di manutenzione (guasti, riparazioni etc.) Se state per iniziare un lavoro non descritto in questo manuale, contattate il vostro distributore per instruzioni poichè...

  • Página 18: Vanlige S I K K E R H E T S T I L T A K

    NAMCO EUROPE LIMITED. Da informasjonen i denne manualen er gitt i god tru og var korrekt da den ble utgitt, tillegger NAMCO EUROP LIMITED seg retten til å lage forandringer uten varsel.
  • Página 19 Installasjon, service, justering eller rutine vedlikehold skal bare utføres av kvalifiserte personer. Ikke lag noen forandringer på denne maskinen uten godkjenning. Dette kan medføre uforutsette farer. Bare deler spesifisert av Namco Europe Ltd. skal benyttes ved utskifting eller reparasjon av deler (dette gjelder også skruer).

  • Página 20: Algemene Veiligheidsoverwegingen

    Namco Europe Limited. Ofschoon de informatie in deze handleiding in goed vertrouwen is gegeven en nauwkeurig was ten tijde van het drukken, houdt Namco zich het recht voor om veranderingen en aanpassingen te maken zonder bericht.
  • Página 21 Maak geen veranderingen aan deze machine zonder goedkeuring vooraf. Dit kan onvoorzien gevaar opleveren. Alleen onderdelen die door Namco Europe Ltd. zijn gespecificeerd dienen gebruikt te worden bij het vervangen of repareren van onderdelen (incl. schroeven). Zorg ervoor dat de machine UITgeschakeld is voordat er enig onderhoudswerk wordt verricht (troubleshooting, reparaties etc.)

  • Página 22: Avisos De Perigo

    NAMCO EUROPA LIMITADA. A informação contida neste manual foi fornecida de boa fé, sendo rigorosa na altura da sua publicação. A NAMCO EUROPA LIMITADA, reserva-se o direito de proceder a mudanças e alterações sem qualquer aviso prévio.
  • Página 23 A substituição ou reparação de peças deverá ser feita apenas com peças de origem ou especificadas pela “Namco Europa Ltd.” (incluindo parafusos) Certifique-se que a maquina se encontra desligada sempre que iniciar qualquer tipo de trabalho de manutenção.

  • Página 24: Allmänna Säkerhetsbeaktanden

    återvinningssystem, översändas eller på annat sätt kopieras för offentlig eller privat användning, utan tillstånd från NAMCO EUROPE LIMITED. Eftersom informationen i denna manual lämnas ut i god tro och var korrekt när den trycktes, reserverar sig NAMCO EUROPE LIMITED för ändringar.
  • Página 25 Gör inga ändringar på denna maskin utan ett godkännande i förväg. Detta kan förorsaka oförutsägbar fara. Endast delar som är specificerade av Namco Europe Ltd. ska användas vid utbyten eller reparation av delar (inklusive skruvar). Försäkra dig om att strömmen är avstängd innan underhållsarbete påbörjas (felsökning, reparationer etc.)

  • Página 26: Yleiset Turvallisuusnäkökohdat

    Tästä julkaisusta ei saa ottaa missään muodossa kopioita yksityis- tai julkiseen käyttöön ilman NAMCO EUROPE LIMITED:in lupaa. Tässä ohjekirjassa olevat tiedot pitävät julkaisuhetkellä paikkansa. NAMCO EUROPE LIMITED:illä on kuitenkin oikeus muutoksiin ilman erillistä ilmoitusta. Tämä laite on valmistettu EC direktiivien mukaisesti. Se on testattu ja todettu noudattavan seuraavia direktiivejä: 89/336/EEC ja 72/23/EEC (EN55014, EN55104 ja EN 60335-1 standardit).
  • Página 27 Tälle laitteelle ei saa tehdä mitään hyväksymättömiä muutoksia. Se voi aiheuttaa ennalta-arvaamattomia vaaroja. Vain Namco Europe Ltd:n määrittelemiä varaosia saa käyttää vaihtaessasi tai korjatessasi osia. (sisältäen ruuvit). Varmista, että laite on kytketty POIS PÄÄLTÄ ennen työn aloittamista.

  • Página 28: Tabla De Contenido

    Contents PORTABLE APPLIANCE TESTING ................3 GENERAL SAFETY CONSIDERATIONS ............... 4 MOVING THE MACHINE ....................5 REMOVING AND REPLACING PARTS ................. 5 NOTES ON INSTALLATION ................... 5 ALLGEMEINE SICHERHEITSHINWEISE ..............6 GENERELLE SIKKERHEDSOVERVEJELSER .............. 8 CONSIDERACIONES GENERALES DE SEGURIDAD..........10 CONSIGNES GENERALES DE SECURITE ..............

  • Página 29: Specifications

    1. SPECIFICATIONS POWER SUPPLY:- 230volts / 220watts AC AMBIENT OPERATING +5°C to +25°C TEMPERATURE: MONITOR:- Hantarex 28” Polo (Auto Degauss) COIN ACCEPTOR:- Mars CashFlow - 1 Channel DIMENSIONS:- Assembled 765(w) x 1510(d) x 2090(h) Monitor Cabinet 765(w) x 790(d) x 1730(h) Coin Tower 260(w) x 720(d) x 1110(h)

  • Página 30: How To Play

    2. HOW TO PLAY This is a gun shooting game where players press on a foot pedal to hide behind an object to avoid an enemy attack, then release the pedal to get out from behind the object and attack the enemy. HOW TO CONTROL Step on the pedal = attack position.

  • Página 31: Major Components

    3. MAJOR COMPONENTS Page 31...

  • Página 32: Moving The Machine

    4. MOVING THE MACHINE This machine is fitted with castors to make it easier to move. Take care when moving the machine on an inclined surface. The overall height of the machine is 2090mm. Take care of any overhead obstructions. (e.g. Light Fittings, Electric Cables etc.) When moving the game, ensure that the game is dis-assembled into 3 parts: Monitor Assembly, Coin Tower, and Header Assembly.
  • Página 33 This machine is designed for INDOOR USE ONLY. Do not install in the following places. Outdoors Direct Sunlight, places with excessive humidity or dust, places where there is water leakage, near air-conditioning or heating equipment, places with excessive heat or cold temperature. Places where it would be in the way of emergency exits or fire extinguishing equipment.
  • Página 34 CETTE MACHINE EST DESTINEE UNIQUEMENT A UN USAGE INTERIEUR NE PAS INSTALLER LA MACHINE DANS LES ENDROITS SUIVANTS A l’extérieur. Directement exposée au soleil, aux endroits excessivement humides ou poussiéreux, aux endroits où il y a des risques de fuite d’eau, près de ventilateurs ou source de chaleur, aux endroits très chauds ou froids.
  • Página 35 DEZE MACHINE IS ALLEEN VOOR GEBRUIK BINNENSHUIS ONTWORPEN INSTALLEER DE MACHINE NIET OP DE VOLGENDE PLAATSEN Buiten In direct zonlicht, op plaatsen met een zeer hoge vochtigheidsgraad of met veel stof, op plaatsen waar een waterlek is, dichtbij airco’s of verwarmingsapparatuur, op plaatsen met een zeer hoge of koude temperatuur.

  • Página 36: Fitting The Header Assembly

    5-1 Fitting the Header Assembly The Header Assembly has a forward centre of gravity, so it is important that at least two people are used to fit or remove the Header Assembly. The fitting position of the Header Assembly is very high, and it is important that a means of reaching the height safely, without stretching, is available.

  • Página 37: Adjusting The Level Adjusters

    5-2 Adjusting the Level Adjusters When the monitor cabinet is in its final position, lower the four (4) level adjusters with a spanner so that the machine is level and all castors are raised from the floor by approx. 5mm. Tighten the lock nuts with a spanner to ensure that the level adjusters do not move.
  • Página 38 Retain the coin tower to the joint box with 4off hex head screws (M8x20), flat and spring washers. Connect the connector and refit the joint box cover plate with 4 off security screw (M5x12). Adjust the level adjusters on the coin tower so that the coin tower is stable and level with the monitor cabinet.

  • Página 39: Fitting The Pedal Assembly

    5-4 Fitting the Pedal Assembly Fit, finger tight only, the joint brackets to the coin tower, with 4off security button head screw (M5x12). Place the pedal assembly close to the coin tower and connect the connector. Fit the pedal assembly inside the joint brackets, taking care not to trap any wires and fit, finger tight, the 4off security button head screws (M5x12).

  • Página 40: Linking Two Machines

    5-5 Linking two Machines Switch both machines off. Remove 2off pozi head screws (M5x12) and remove the Link Cover Bracket. Fit the Link Cables (supplied) as shown in the following diagram. Refit the Link Cover Bracket with the 2off pozi head screws (M5x12). Page 40...
  • Página 41 Seperate the Coin Tower from the Monitor Cabinet on the right hand game (viewed from the front). (see 5-3 page Remove 6off security screw (M5x16) and remove the rear panel. Connect together the 1way connectors fitted to the 4way EI header on the right hand game (viewed from the front)..

  • Página 42: Adjustments

    6. ADJUSTMENTS Adjustment or maintenance on this machine should be carried out by qualified personnel only. Aufstellung, Service, Einstellung und Wartung dürfen nur von dafür qualifiziertem Fachpersonal durchgeführt werden. Justeringer eller vedligehold af denne maskine bør kun udføres af kvalificeret personale. Los ajustes y el mantenimiento de esta máquina deben ser realizados sólo por personal cualificado.

  • Página 43: Adjustment Switches

    6-2 Adjustment Switches The Adjustment switches are located inside the coin door. Service Switch. Press this switch to obtain game credits without incrementing the play meter. Test Switch Slide the test switch ON to enter test mode. Test mode allows testing and the changing of game settings. (Refer to section 6-3 "Test Mode"...

  • Página 44: Test Mode

    6-3 Test Mode Open the coin door and slide the test switch “ON”. The “Menu Screen” will be displayed on the monitor. Select the test required by using the select up/down switch. The colour of the selected test will change. Activate the test by pressing the Enter switch.

  • Página 45: Coin Options

    6-3-1 Coin Options Select “COIN OPTIONS” on the menu screen to set the game cost and related settings. The following screen is displayed. Use the Select Up/Down switch to choose the required item then press the Enter button. Use the Up/Down switch to change the setting. Press the Enter button after the changes have been made to return to the options.

  • Página 46: Game Options

    6-3-2 Game Options Select “GAME OPTIONS” on the menu screen to set the game variables. The following screen is displayed. Use the Select Up/Down switch to choose the required item then press the Enter button. Use the Up/Down switch to change the setting. Press the Enter button after the changes have been made to return to the options.

  • Página 47: I/O Test

    6-3-3 I/O Test Select “I/O TEST” on the menu screen to switches and lamps. The following screen is displayed. Use the Select Up/Down switch to choose the required item then press the Enter button to enter the test. Select “EXIT” and press the Enter button to return to the menu screen. I/O TEST DIP 4 12345678 [ON:OFF]...

  • Página 48: I/O Pcb Check

    DIP 4 12345678 [ON:RED] LINK ON 2 I/O PCB CHECK Master TX 3536 NAMCO LTD. Time Crisis 2 ; Ver1.00 ; JPN 1/0 PCB Connect OK namco ltd. TSS-I/O;Ver2.02;JPN;GUN-EXTENSION EXIT SELECT SW : CHOOSE ENTER SW : ENTER 6-3-3-2 Gun Initialize Select ‘GUN INITIALIZE’...
  • Página 49 GUN INITIALIZE (CRT) SHOOT AT SCREEN TO CHECK GUN ACCURACY PUSH ENTER SW : ADJUST GUN SIGHT UP SELECT SW + ENTER SW : EXIT Aim the gun at the screen and pull the trigger. A white spot will appear. If the spot appears where you aimed, the gun initialization is O.K.

  • Página 50: Switch Test

    6-3-3-3 Switch Test Select “Switch Test” on the I/O menu screen to test the switches. The following screen is displayed. The display shows the current state of the switches. Press the Up Select switch and the Enter switch together to EXIT and return to the I/O menu screen SWITCH TEST DIP 4 123456787 [ON/OFF]...

  • Página 51: Solenid Test

    6-3-3-4 Solenid Test Select “solenoid Test” on the I/O menu screen to test the switches. The following screen is displayed. I/O TEST DIP 4 12345678 [ON:RED] ON 2 LINK SOLENOID TEST PULL GUN TRIGGER TO ACTION EXIT SELECT SW : CHOOSE ENTER SW : ENTER The gun recoil solenoid will operate each time the trigger is pressed.

  • Página 52: Monitor Test

    6-3-4 Monitor Test Select “MONITOR TEST” on the menu screen to test and adjust the Monitor. The following screen is displayed. Use the Select Up/Down switch to choose the required item then press the Enter button. To return to the Monitor Test Menu from a test pattern press the Enter button.

  • Página 53: Sound Test

    6-3-5 Sound Test Select “I/O TEST” on the menu screen to switches and lamps. The following screen is displayed. Use the Select Up/Down switch to choose the required item then press the Enter button. Use the Up/Down switch to change the setting. Press the Enter button after the changes have been made to return to the options.

  • Página 54: Ads Data

    6-3-6 ADS Data By selecting ADS Data from the menu screen, all of the bookkeeping details can be read and/or reset. 6-3-7 Others Select “OTHERS” on the menu screen. The following screen is displayed. Use the Select Up/Down switch choose the required item then press the Enter button.

  • Página 55: Removing And Replacing Assemblies And Parts

    7. REMOVING AND REPLACING ASSEMBLIES AND PARTS 7-1 Replacing the Monitor The monitor is heavy. At least two people are required to remove the monitor. Remove the 2off upper security screw (M5x12) and slacken the 2off lower security screw (M5x12), and remove the monitor rear access panel. Remove the pozi head screw (M4x10) and remove the Earth wire and connectors from the monitor.
  • Página 56 Remove 4off pozi head screws (M6x25), with flat washer (1”x¼”), and remove the monitor by tilting the forward and lifting it out. Note: Take care not to knock the neck of the monitor tube when handling the monitor as it can be easily damged and the tube destroyed. Page 56...

  • Página 57: Replacing The Fluorescent Tube Or Starter

    7-2 Replacing the Fluorescent Tube or Starter Remove 2off security screw (M5x12) and remove the top retaining bracket and header acrylic. Replace the fluorescent tube or starter. Refit the header acrylic and top retaining bracket. Page 57...

  • Página 58: Replacing The Pedal Switch

    7-3 Replacing the Pedal Switch Remove 4off security screw (M5x12) and remove the switch cover plate. Remove 2off pozi head screw (M3x16) and remove the switch. When replacing the switch, ensure that the wires are fitted to the correct terminals. Slacken the 2off whizztite nuts (M4) and adjust the microswitch bracket so that the switch plunger operates the switch correctly without bending the switch lever against the switch body.

  • Página 59: Greasing The Pedal Assy Plunger

    7-4 Greasing the Pedal Assy Plunger Remove 4off security screw (M5x12) and remove the switch cover plate. Remove 2off whizztite nuts (M4) and remove the switch. Remove 4off whizztite nuts (M4) and remove the plaunger assembly. Note: The plunger is spring loaded. Keep the plunger pressed in when removing the assy and release the plunger slowly.

  • Página 60: Replacing The Pedal Plunger

    7-5 Replacing the Pedal Plunger Remove the plunger assembly. (See 7-4 page 59 ) Pull the plunger out of the holder. Replace with the new plunger. (The new plunger should have grease applied all over prior to fitting). Wipe off any old grease and dirt from the pedal plate and regrease. Reassemble in reverse order.

  • Página 61: Gun Assembly

    7-6 Gun Assembly 7-6-1 Replacing the Gun Assembly Remove 8off security screws (M8x20) and remove the gun pod complete with the gun. Disconnect the connectors and remove the 2off whizztite nuts (M6). Remove the gun assembly from the gun pod. Note: When replacing the gun assembly ensure that the earth wires are located on to the studs before fitting and tightening the whizztite...

  • Página 62: Removing The Gun Slide

    7-6-2 Removing the Gun Slide Remove 4off cap screws (M3x10), 1off button screw (M4x25), and 1off hex nut (M4), and detach the gun slides (L) and (R). Reassemble in reverse order. Page 62...

  • Página 63: Removing The Gun Cover

    7-6-3 Removing the Gun Cover Remove the gun slides (L) and (R). (See 7-6-2 page 62) Place the gun (L) face down, and remove the 4off button screws (M4x10), 1off button screw (M4x25), 4off hex nuts (M4), and 1off cap screw (M3x10).

  • Página 64: Replacing The Solenoid

    7-6-4 Replacing the Solenoid Remove the gun cover and gun slide (R). (See 7-6-2 page 62 7-6-3 page 63) Disconnect the solenoid connector. Remove 1off cap screw (M3x10) on the gun cover (L) and remove the solenoid bracket. Remove 1off cup screw M (M3x8) and detach the earth wire. Loosen the nuts (16mm dia.) and remove the solenoid.

  • Página 65: Replacing The Solenoid

    7-6-5 Replacing the Trigger Switch Remove the gun cover and gun slide (R). (See 7-6-2 page 62 7-6-3 page 63) Replace the microswitch. Take care when replacing the switch that the correct wires are fitted to the correct terminals. Reassemble in reverse order. 7-6-6 Replacing the Flexible Gun Conduit.

  • Página 66: Parts

    8. PARTS Page 66...
