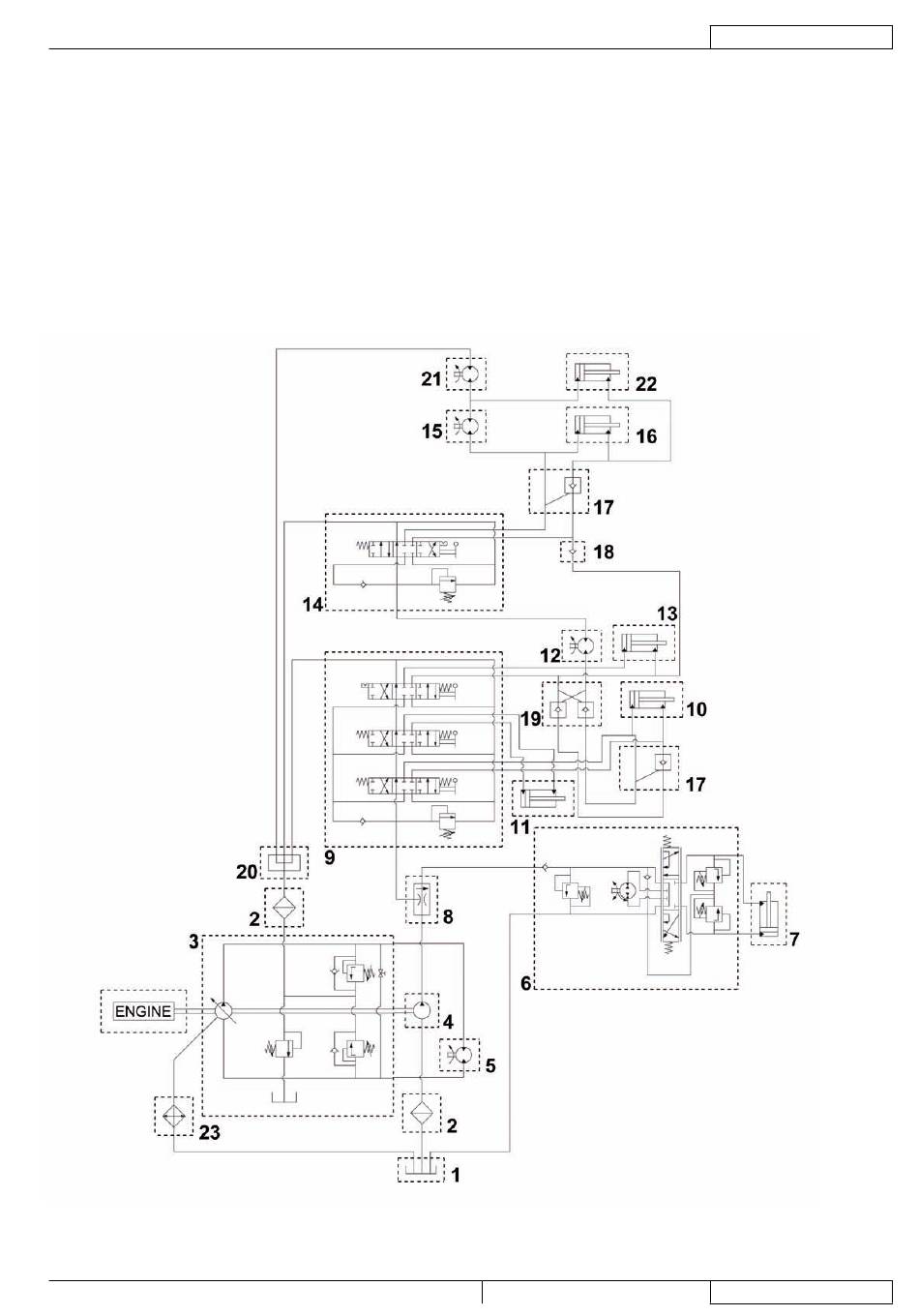

HYDRAULIC DIAGRAM

Key
1. Oil tank
2. Oil fi lter
3. Drive system pump
4. Accessory pump
5. Drive system motor
6. Power steering
7. Steering cylinder
8. Priority valve
9. Manifold 3 levers
10. Hopper lifting cylinder
11. Skirt cylinder
3
23
14
20
9
2
Proterra™
INSTRUCTION FOR USE
12. Main broom motor
13. Main broom cylinder
14. Manifold 1 lever
15. Right side broom motor
16. Right side broom cylinder
17. Check valve
18. One-way valve
19. Double check valve
20. Manifold block
21. Left side broom motor (optional)
22. Left side broom cylinder (optional)
23. Oil cooler
