C-3
K2275-1 - Welding Cart
Lightweight cart stores and transports welder, 80
cubic foot shielding gas cylinder, welding cables and
accessories. Includes an angled top shelf for easy
access to controls, lower tray for added storage
capacity, a sturdy fixed handle and convenient cable
wrap hanger.

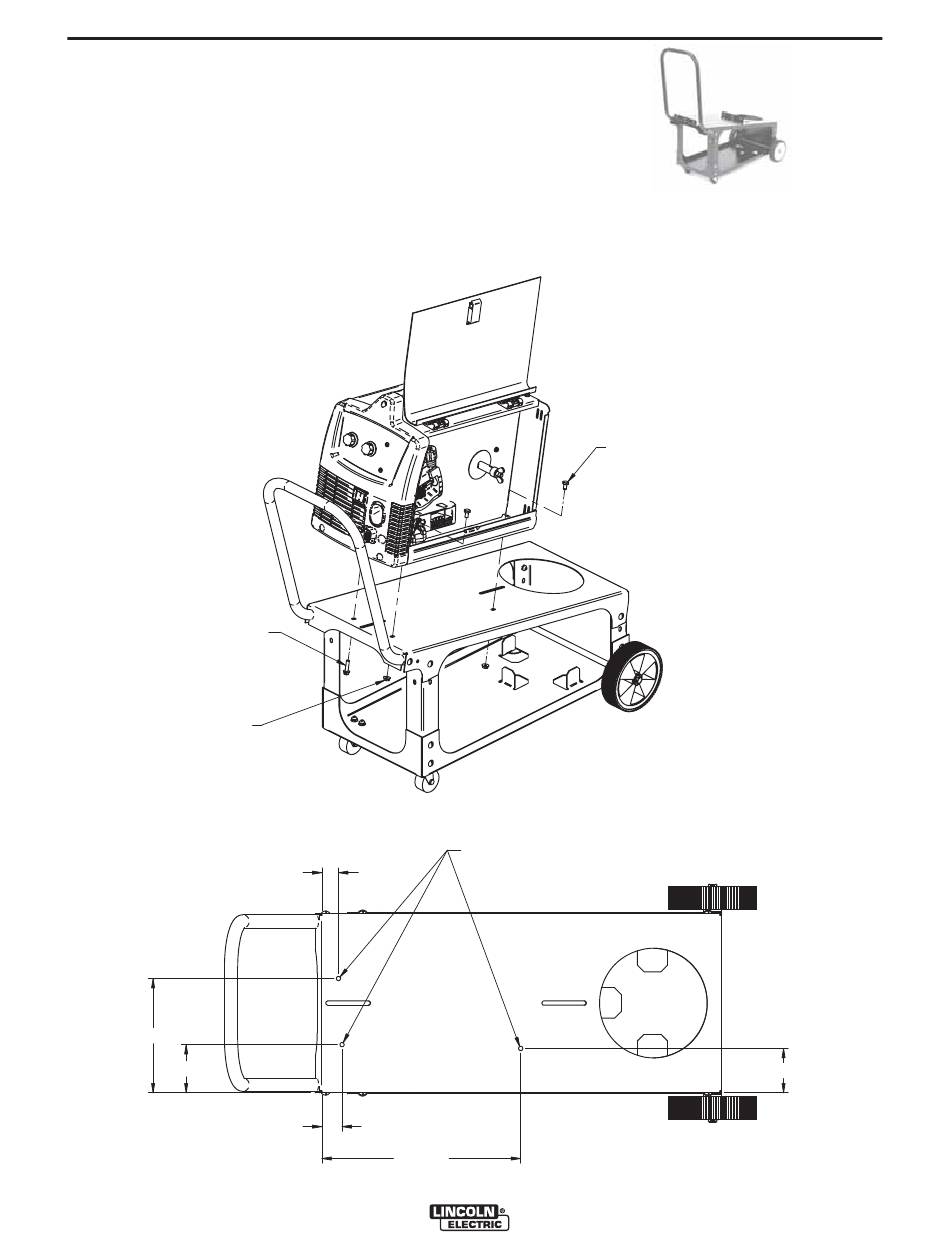

For mounting welding machines to K2275-1 carts that do not have slotted mounting holes.
Drill 9/32" holes (3 places) into the cart top as shown and attach the welding machine to the
cart with the proper hardware shown.
1/4"-20 X 1"
Thread Forming Screw
(1 Required)
1/4"-20 Flange Nut
(2 Required)
7-9/16"
3-3/16"
ACCESSORIES
9/32" DRILL
3 PLACES
1-1/4"
1-1/2"
13-1/2"
POWER MIG® 180 DUAL
1/4"-20 X 1/2" Hex Head Cap Screw
(2 Required)
2-15/16"
