Xgard Bright

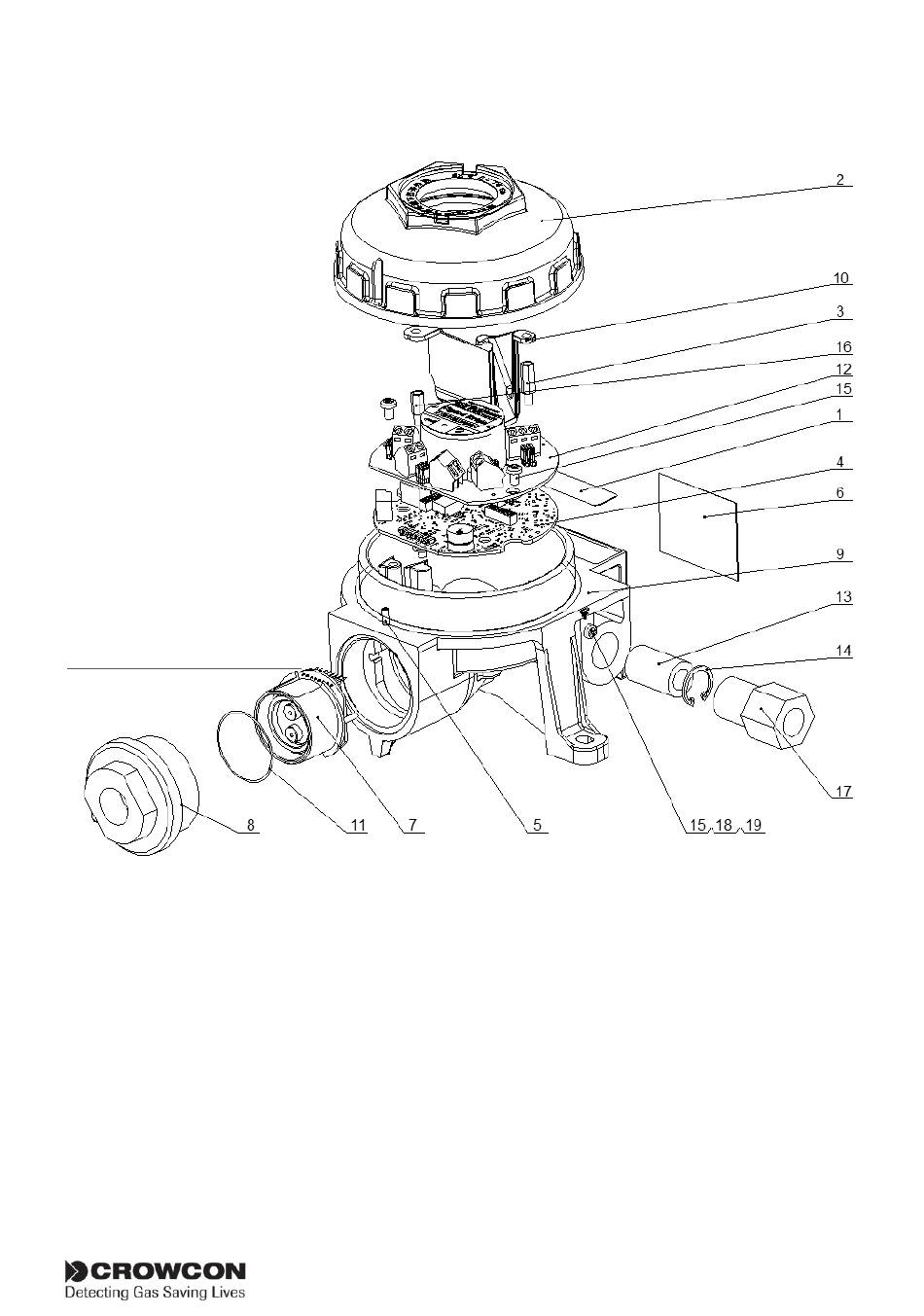

1.3 Exploded View

1 Gas label
2 Enclosure lid assembly
3 M4 stud
4 Main PCB assembly
5 Grub screw
6 Certification label
7 Sensor assembly
8 Sensor chamber assembly
9 Enclosure base assembly
10 Wire guide
11 Sensor seals
12 Terminal PCB assembly
13 Ferrite
14 Circlip
15 M4x8 Pan head screw
16 M4 Stud
17 M20-1/2"NPT thread adaptor
18 M4 Spring washer ST-ST
19 M4 Washer ST-ST
Diagram 5: Xgard Bright exploded view
1.3 Vue éclatée

1.3 Explosionsansicht

1.3 Vista en despiece

1.3 Vista esplosa

1.3 Opbouwtekening

1.3 Widok rozstrzelony

1.3 Vista explodida

Exploded view
11
