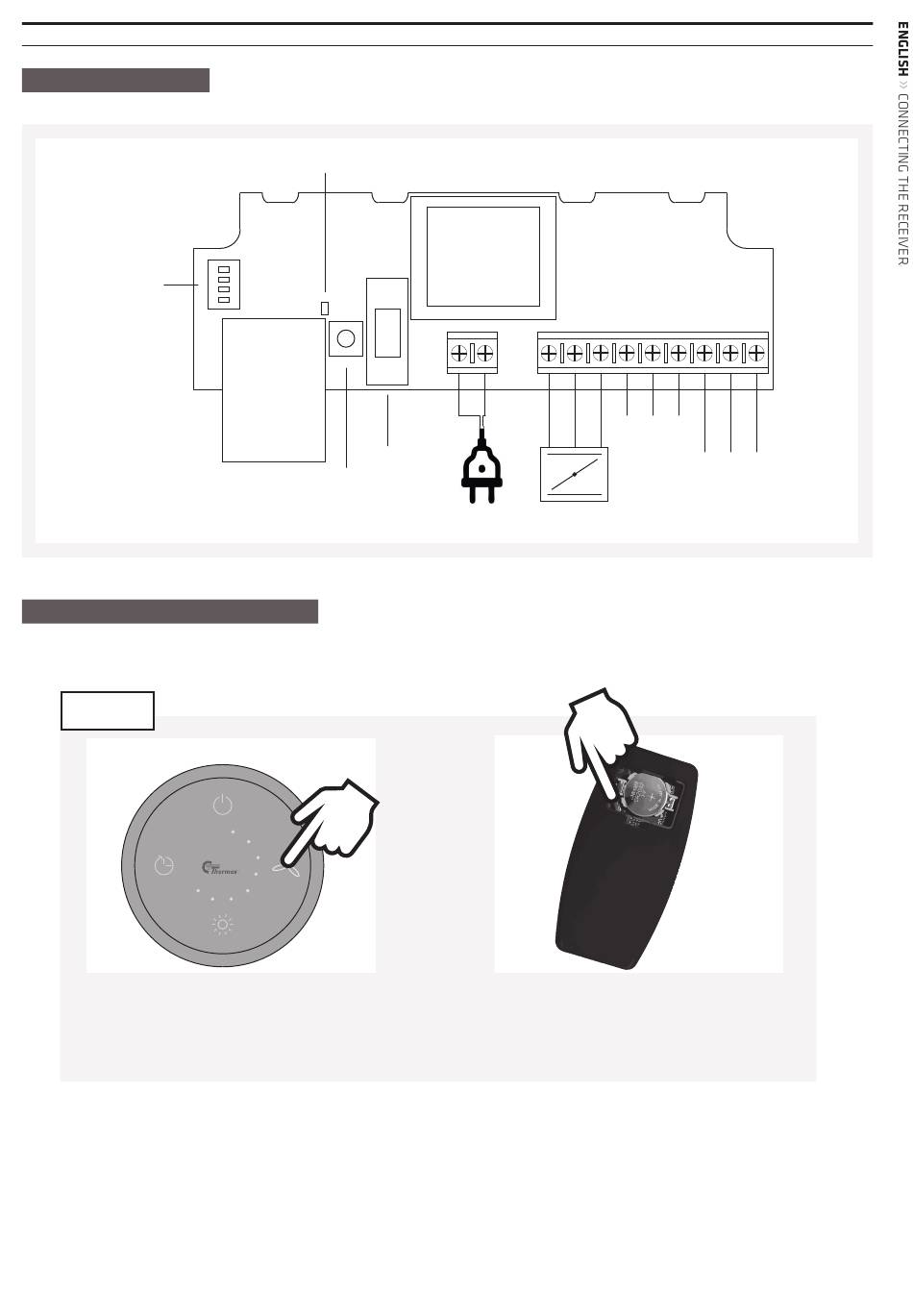

CONNECTING THE RECEIVER

The receiver must be connected to the external ventilation system. The receiver is connected in accordance with the diagram:
Dipswitch
The red LED will light up when the power is connected.

CONNECTION BETWEEN PRO LINK AND HOOD

Once the Pro Link is connected, the hood and Pro Link must be paired to each other. One hood can be connected to multiple Pro Link modules.
The pairing can be carried out in the following way:
1 - Hood
Hold down the button for fan control until all lights blink
five times(around 10 seconds). The hood is now open for
pairing for one minute.
Diode
L N
Fuse
Pair button
230 V in
Click the button next to the battery, as shown on the illus-
tration. The hood will open for pairing for one minute.
THERMEX PRO LINK III
NO NC
COMM
Relay 2
N F1 F2
COMM
230 V out
for valve
63
NO NC
Relay 1
