A
Changing
1. Remove the oil fill plug (A).
2. Remove the oil drain plug (B) and
drain oil into a suitable container.
3. Replace the oil drain plug (B) and
tighten securely.
4. Sowly add compressor oil until
the oil level is in the middle of the
sightglass (C).
Risk of unsafe operation.
Overfilling with oil will cause premature
compressor failure. Do not overfill.
5. Replace oil fill plug (A) and tighten
securely.
AIR FILTER - INSPECTION
AND REPLACEMENT
Hot surfaces. Risk of
burn. Compressor heads are exposed
when filter cover is removed.
compressor to cool prior to servicing.
Keep the air filter clean
at all times. Do not operate the air com-
pressor with the air filter removed.
A dirty air filter will not allow the com-
pressor to operate at full capacity. Keep
the air filter clean at all times.
1. Remove air filter(s).
2. Remove the air filter cover (s).
3. Remove the air filter(s) from filter
cover(s).
IMPORTANT: Do not operate the com-
pressor with the air filter removed.
4. Place new air filter into filter
cover(s). Refer to the Repair Parts
for the correct part number.
5. Replace air filter cover(s) and reas-
semble air filter(s) to pump.

BELT - REPLACEMENT

ry. Serious injury or damage may
occur if parts of the body or loose
items get caught in moving parts.
Never operate the outfit with the
belt guard removed. The belt guard
should be removed only when the air
compressor power is disconnected.
1. Turn air compressor off, lock out
the power supply, and relieve all air
pressure from the air tank.
2. Remove the belt guard.
3. Mark pump position on saddle.
4. Loosen the motor mounting screws
and slide the motor toward the air
compressor.
5. Remove the belt and replace with
a new one.
6. See the Adjust Belt Tension
before tightening motor mounting
screws.
ADjUSTING BELT TENSION
1. Slide motor into original position,
line the motor up with the mark
made earlier on saddle.
2. Tighten two outside motor mount-
ing screws enough to hold the
motor in place for checking pulley
and flywheel alignment.
Allow

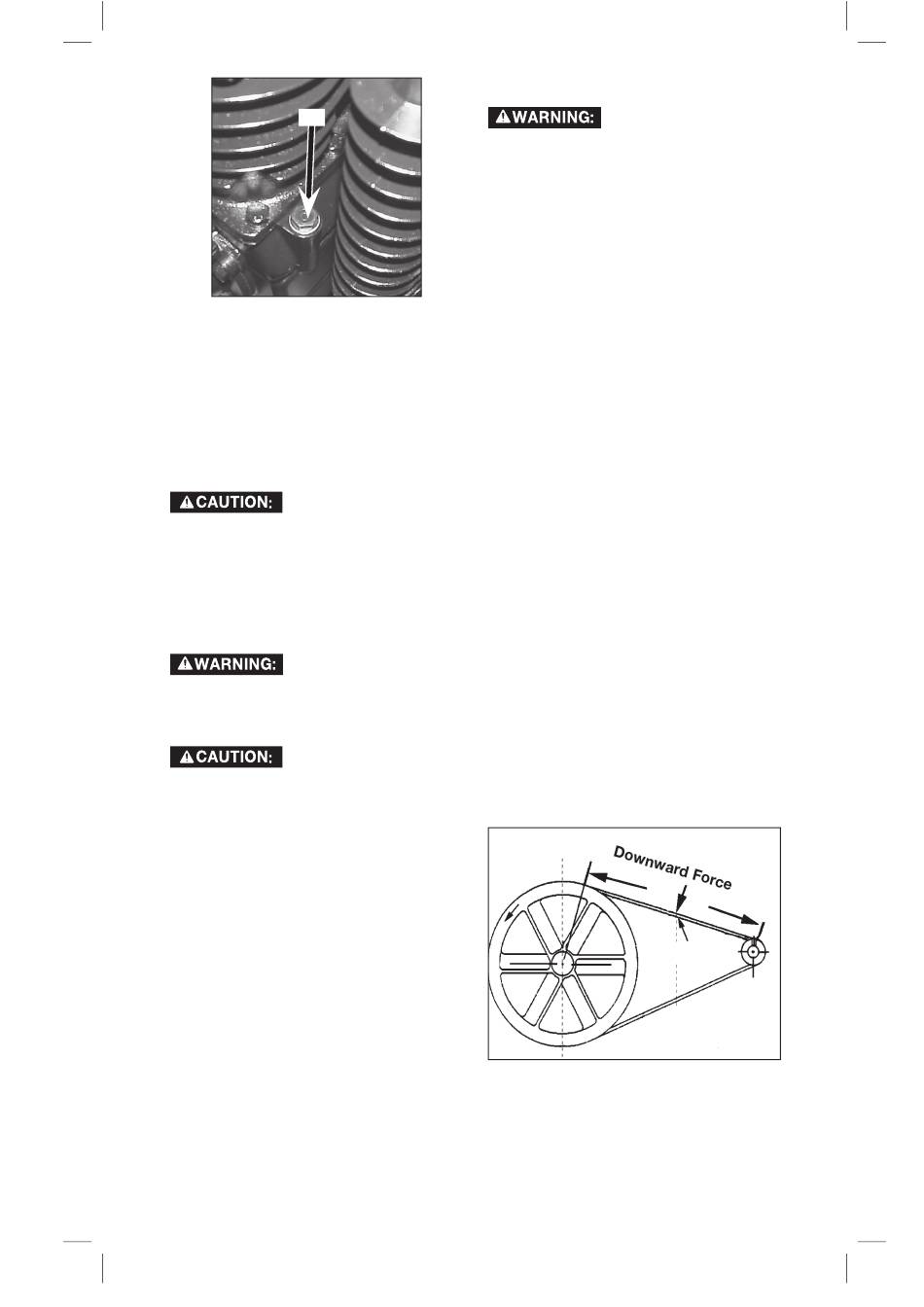

3. The belt should deflect 3/16"
(4.8 mm) at midway between the
pulley and the flywheel when a
5-10 pound weight is applied at
the midway point.
4. When proper belt tension is
achieved, tighten all four motor
mounting screws.
17 - ENG
Risk of personal inju-
Deflection
