EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v6.46 or the latest version to ensure compliance with local authority regulations!
It is the end users responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed.

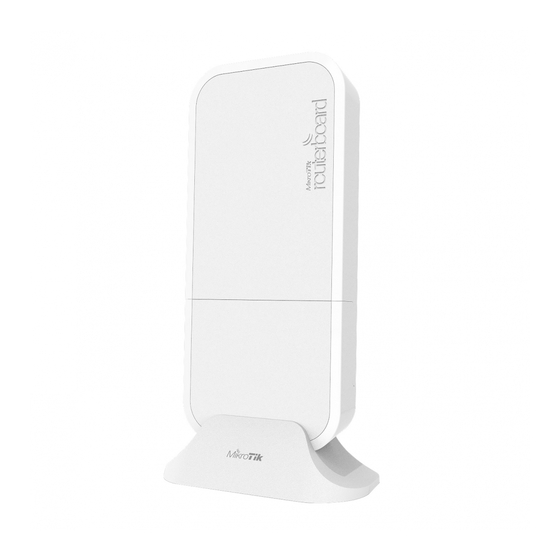

This "wAP R ac" series Quick Guide covers models: RBwAPGR-5HacD2HnD (wAP R ac), RBwAPGR-5HacD2HnD&R11e-4G (wAP ac 4G kit), RBwAPGR-
5HacD2HnD&R11e-LTE (wAP ac LTE kit), RBwAPGR-5HacD2HnD&R11e-LTE-US (wAP ac LTE kit), RBwAPGR-5HacD2HnD&R11e-LTE6 (wAP ac LTE6 kit).
This is Wireless Network Device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, brochures and more info about products
Configuration manual for software in your language with additional information can be found
MikroTik devices are for professional use. If you do not have qualifications please seek a
This Device accepts input of 24V DC power adapter, which is provided in the original packaging of this device. This Device can be powered via
DC jack or using PoE injector (Provided in the packaging).
First steps:
Open the cover and insert the SIM card. For the wAP R ac model, install your modem into miniPCIe slot.
To install the modem, remove the screw located under the cover and split case apart.
Connect the device to the power source.
Open network connections on your PC, search for MikroTik wireless network and connect to it.
Open the web browser, go to http://192.168.88.1 to start the configuration.
User name: admin and there is no password by default.
Update the device by clicking the (Check_for_updates) on the right side and updating your RouterOS software to the latest version. Must have a valid SIM
card inserted.
To manually update the device, please
Choose (ARM) packages for this device and download it to your PC.
Upload downloaded packages to the (WebFig) (Files) menu and reboot the device.
Updating your RouterOS software to the latest version will ensure the best performance, stability, and security updates.
In the (QuickSet) menu set up the following: Choose your country, to apply country regulation settings.
Set up your wireless network password in the left field.
Set up your router password in the bottom field.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product can be installed outdoors. Please read the mounting instructions carefully before beginning installation. Failure to use the correct hardware and
configuration or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 45 centimeters from your body, occupational user or the general
public.
Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v6.46 или най-новата версия, за да се гарантира спазването на местните
регулаторни разпоредби.
Крайните потребители са отговорни за спазването на местните разпоредби, включително работата в рамките на законни честотни канали,
извеждане на продукция изисквания за захранване, окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства
на MikroTik трябва да бъдат професионално инсталиран.
Това „wAP R ac" серия Бързо ръководство обхваща модели: RBwAPGR-5HacD2HnD (wAP R ac), RBwAPGR-5HacD2HnD&R11e-4G (wAP ac 4G
kit), RBwAPGR-5HacD2HnD&R11e-LTE (wAP ac LTE kit), RBwAPGR-5HacD2HnD&R11e-LTE-US (wAP ac LTE kit), RBwAPGR-5HacD2HnD&R11e-LTE6 (wAP
ac LTE6 kit).
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
QR кода с мобилния си телефон.
Технически спецификации, брошури и повече информация за продуктите
All manuals and user guides at all-guides.com
https://mt.lv/um
for the full up to date user manual. Or scan the QR code with your mobile phone.
at https://mikrotik.com/pro
go https://mikrotik.com/download
This MikroTik equipment complies with the FCC, IC and European Union radiation exposure limits set forth for an
https://mt.lv/um-bg
at https://mt.lv/help
consultant https://mikrotik.com/consultants
за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
Или сканирайте
