The vibratory plate is driven by four-stroke single-cylinder engine. The most frequently used engine are
gasoline engines HONDA and diesel engines HATZ. The engine is coupled to the vibrator by a drive belt.
Centrifugal clutch mounted on the engine shaft disconnects power transmission at idle speed of the engine.
The operator is controlling the plate by a resiliently mounted and tilting control bar, where travel control lever
and throttle lever are located. In the case of electronically controlled engine is replaced by the switch lever of
gas idling and working speed.

3.1 BASIC TECHNICAL PARAMETERS

MODEL
CRENA 52
CRENA 52H
CRENA 63
CRENA 63H
TYPE
Model
Weight
Frecuency
Centrifugal Force
Maximun speed.
(forward/backward *)
Maximum Climbing Ability
Vibratory Plate Width
Vibratory Plate Lenght
Engine
Model
Fuel
Net power/3600rpm
Starting
* specified speed is valid for optimal conditions – difference of the fwd/rew speed up to ±15%.
Actual power of the engine mounted on a specific machine may differ due to various factors, as i.e. operational
speed, operational conditions, maintenance and other variables.
Operational speed of the engine is NOT the same as rated speed of the engine; they are preset to suit
technological parameters of the machine.

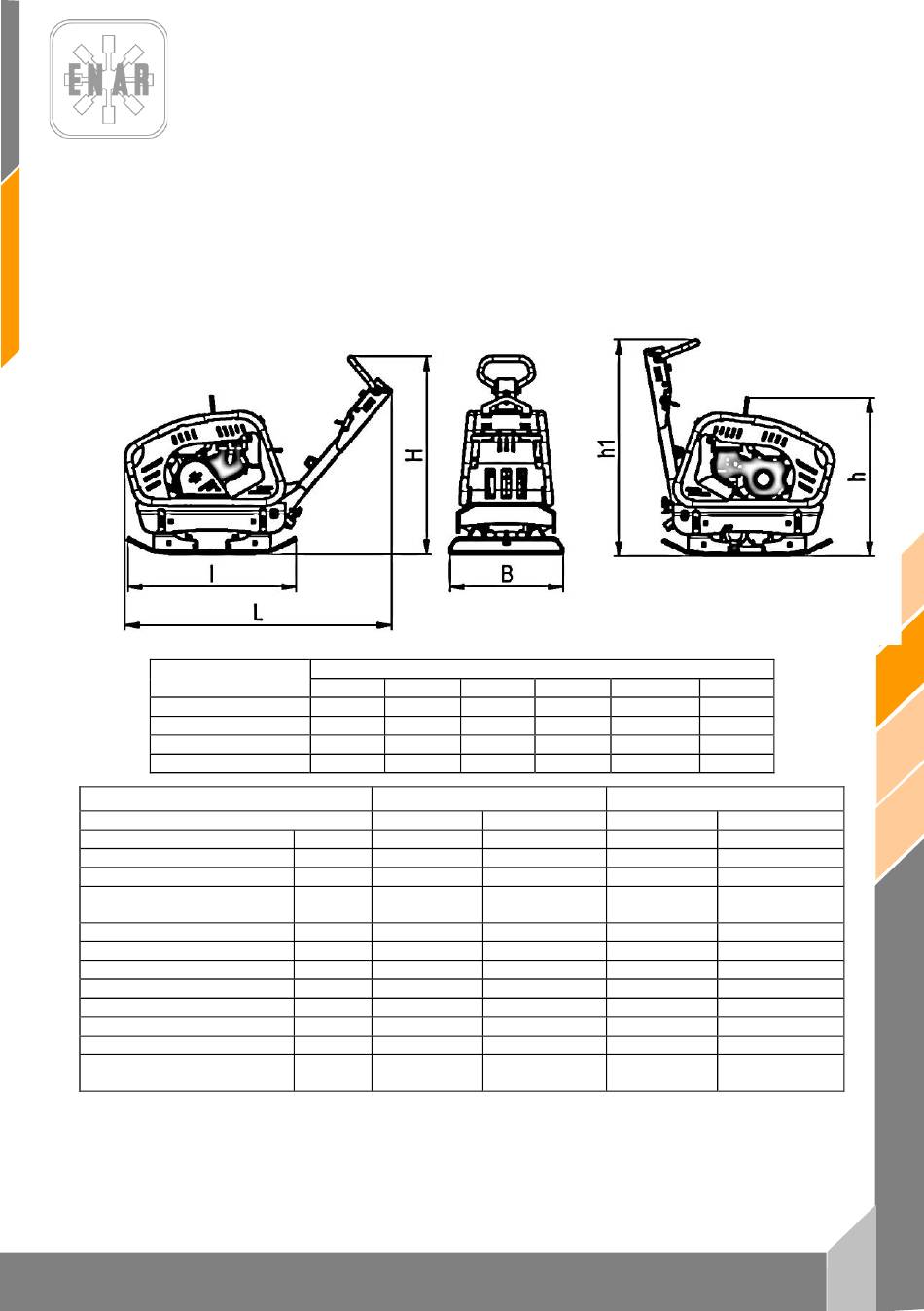

REVERSIBLE VIBRATORY PLATE COMPACTOR
DIMENSIONS (mm)
B H
600 1055 840
600 1055 875
750 1040 850
750 1040 910
CRENA 52
CRENA 52
kg 330 (340)
Hz 75
kN 52
m/min 22
% 30
mm 600
Mm 895
- HONDA
- GX270
- petrol
kW 6.3
manual
-
(electronic)
h h1 L
1150 1420
1150 1420
1130 1500
1130 1500
CRENA 52H CRENA 63
340 (350) 430 (440)
75 70
52 63
22 20
30 30
600 750
895 900
HATZ HONDA
1B30 GX390
diesel petrol
5.0 8.7
manual manual
(electronic) (electronic)
CRENA 52*, 63*
I
895
895
900
900
CRENA 63
CRENA 63H
440 (460)
70
63
20
30
750
900
HATZ
1B50
diesel
7.9
manual
(electronic)
