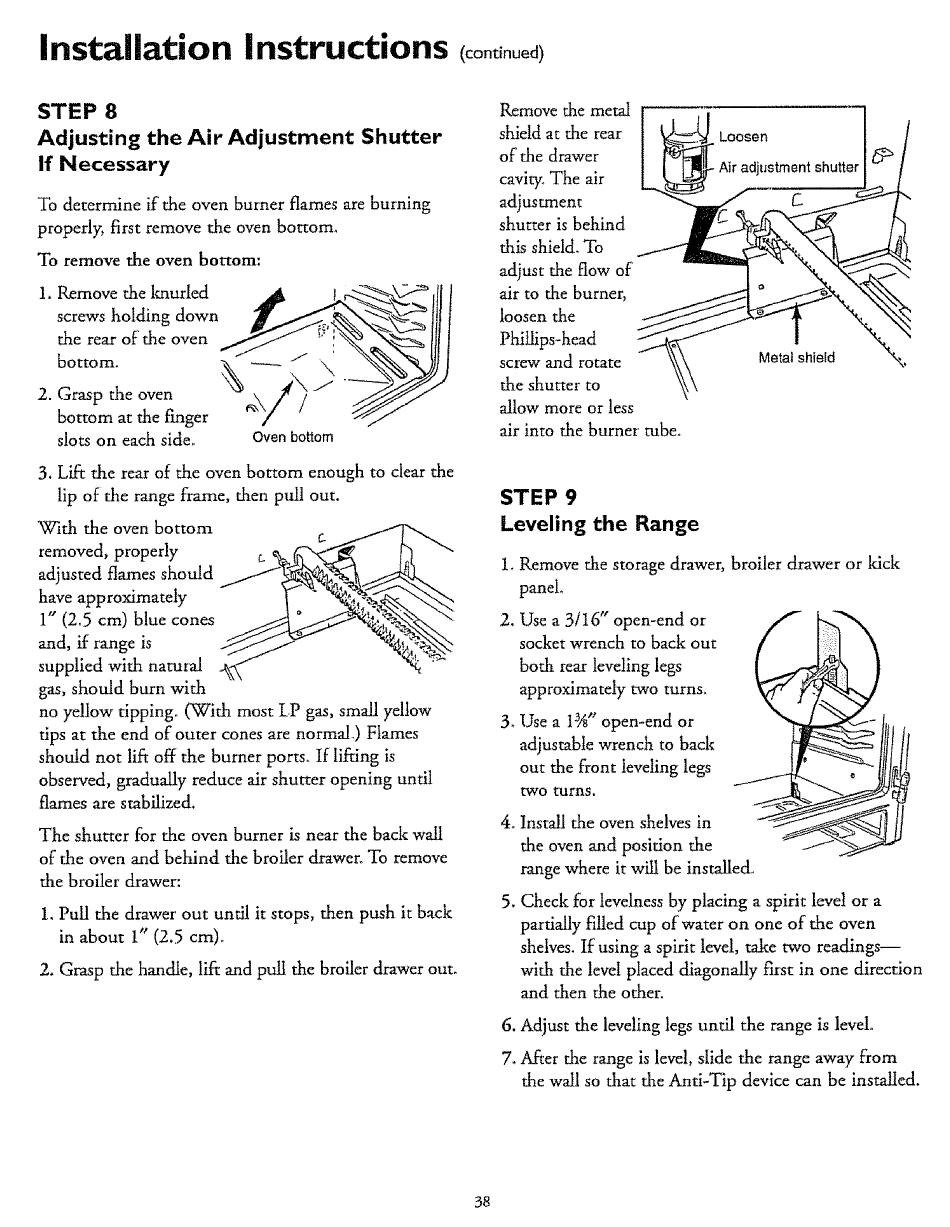

Installation Instructions o ,0uod/
STEP 8
Adjusting the Air Adjustment Shutter
If Necessary
To determine if the oven burner flames are burning
properly, first remove the oven bottom_
To remove the oven bottom:
screws holding down_?__
the rear of the oven
bottom. _ /" _,,
2. Grasp the oven /t
bottom at the finger
slots on each side.
Oven bottom
3. Lift the rear of the oven bottom enough to clear the
lip of the range frame, then ptdl out.
With the oven bottom
C.
removed, properly
adjusted flames should
have approximately
1" (2.5 cm) blue cones
and, if range is
supplied with natural
gas, should burn with
no yellow tipping. (With most I_P gas, small yellow
tips at the end of outer cones are normal.) Flames
should not li_ off the burner ports° If lifting is
observed, gradually reduce air shutter opening until
flames are stabilized.
The shutter for the oven burner is near the back watl
of the oven and behind the broiler drawer. To remove
the broiler drawer:
1. Pull the drawer out until it stops, then push it back
in about 1" (2.5 cm).
2. Grasp the handle, lift and pull the broiler drawer out.
Remove the metal
shield at the rear
of the drawer
cavity. The air
adjustment
shutter is behind
this shield. To
adjust the flow of
air to the burner,
loosen the
Phillips-head
screw and rotate
the shutter to
allow more or less
air into the burner tube.
Loosen
Air adjustment shutter
Metal shield
STEP 9
Leveling the Range
1. Remove the storage drawer, broiler drawer or ldck
parleL
2. Use a 3116" open-end or /
socket wrench to back out
both rear leveling legs
approximately two turns_
3_ Use a I%" open-end or
adjustable wrench to back
out the front leveling legs
twO
trims,
.
Install the oven shelves in
the oven and position the
range where it will be installed.
)
Check for levelness by placing a spirit level or a
partially filled cup of water on one of the oven
shelves. If using a spirit level, take two readings--
with the level placed diagonally first in one direction
and then the other.
6. Adjust the leveling legs until the range is level°
7o After the range is level, slide the range away from
the wall so that the Anti-Tip device can be installed.
38
